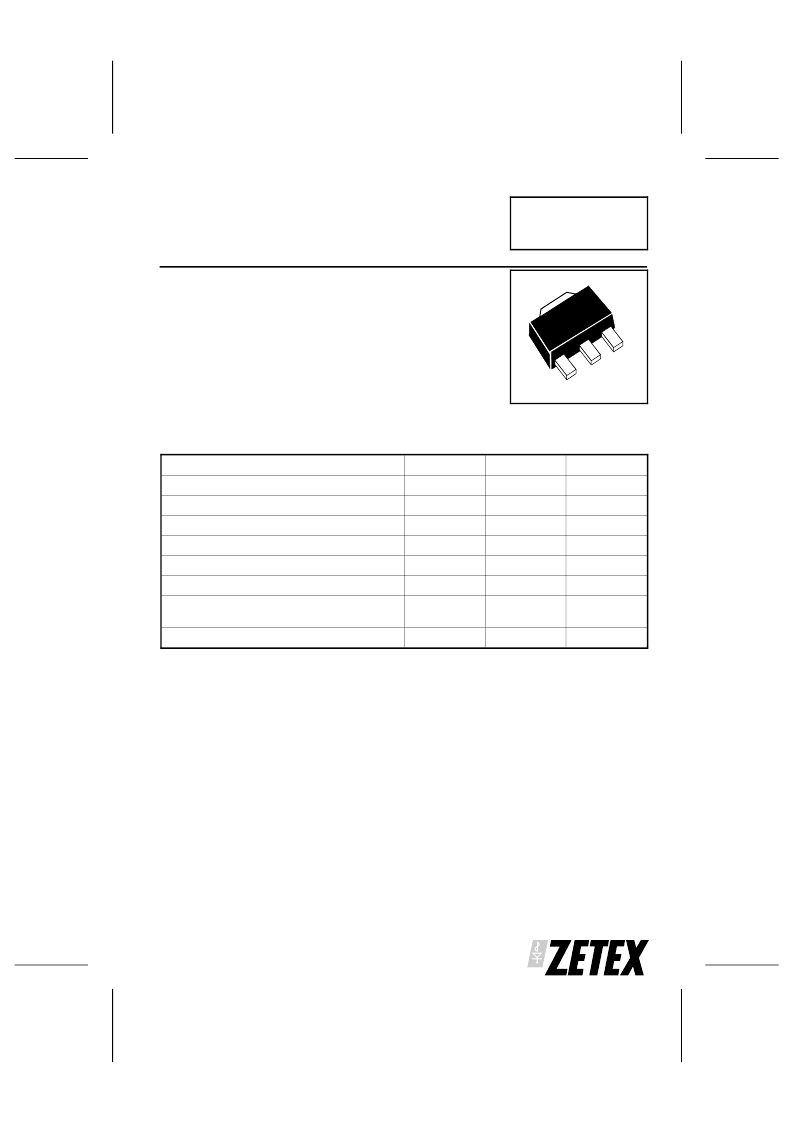

SOT89 NPN SILICON POWER
(SWITCHING) TRANSISTOR
ISSUE 6 - J ANUARY 2003
FEATURES
*
2W POWER DIS S IPA TION
*
6A PEAK PULSE CURRENT
*
EXCELLENT h
FE
CHARACTERISTICS UP TO 6 Amps
*
EXTREMELY LOW SATURATION VOLTAGE e.g. 13mV typ.
*
EXTREMELY LOW EQUIVALENT ON-RESISTANCE;
*
R
CE(sat)
87m
at 2.75A
COMPLIMENTARY TYPE -
PARTMARKING DETAIL -
FCX720
619
ABSOLUTE MAXIMUM RATINGS.
PARAMETER
S YMBOL
VALUE
UNIT
Collector-Base Voltage
V
CBO
50
V
Collector-Emitter Voltage
V
CEO
50
V
Emitter-Base Voltage
V
EBO
5
V
Peak Pulse Current
I
CM
6
A
Continuous Collector Current
I
C
3.0
A
Base Current
I
B
500
mA
Power Dissipation at T
amb
=25°C
P
tot
1.5
2
W
Operating and S torage Temperature Range
T
j
:T
stg
-55 to +150
°C
recommended P
tot
calculated using FR4 measuring 25x25x0.6mm
Maximum power dissipation is calculated assuming that the device is mounted on FR4
substrate measuring 40x40x0.6mm and using comparable measurement methods adopted by
other suppliers.
**Measured under pulsed conditions. Pulse width=300
μ
s. Duty cycle
≤
2%
Spice parameter data is available upon request for these devices
Refer to the handling instructions for soldering surface mount components.
FCX619
C
B
C
E
