January 1995
3
Philips Semiconductors
Product specication
16-channel analogue
multiplexer/demultiplexer
HEF4067B
MSI
FUNCTION TABLE
Note
1. H = HIGH state (the more positive voltage)
L = LOW state (the less positive voltage)
X = state is immaterial
INPUTS
CHANNEL
EA3
A2
A1
A0
ON
LL
L
Y0 Z
LL
L
H
Y1 Z
LL
L
H
L
Y2 Z
LL
L
H
Y3 Z
LL
H
L
Y4 Z
LL
H
L
H
Y5 Z
LL
H
L
Y6 Z
LL
H
Y7 Z
LH
L
Y8 Z
LH
L
H
Y9 Z
LH
L
H
L
Y10 Z
LH
L
H
Y11 Z
LH
H
L
Y12 Z
LH
H
L
H
Y13 Z
LH
H
L
Y14 Z
LH
H
Y15 Z
H
X
none

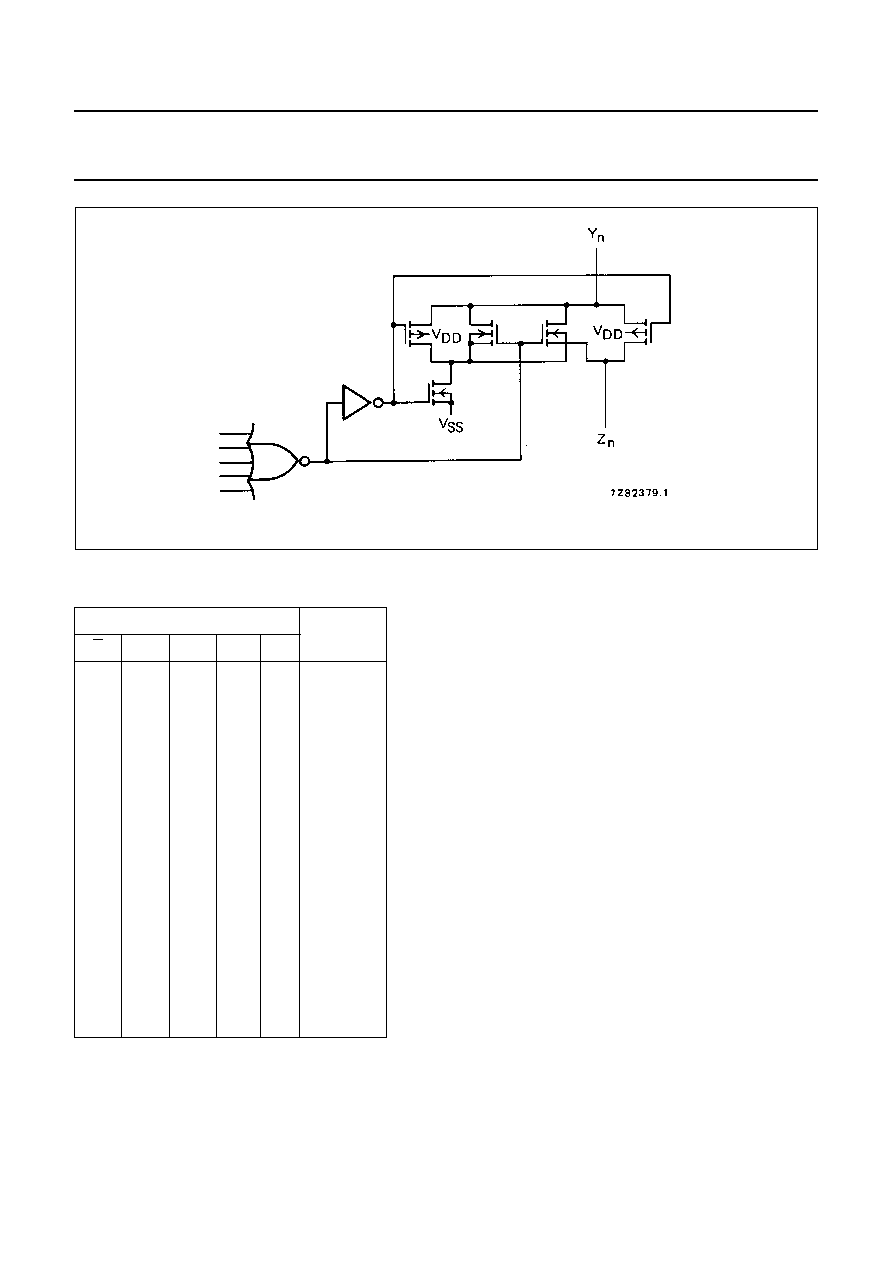

Fig.3 Schematic diagram (one switch).
