1996 May 24
2
Philips Semiconductors
Product specication
Controlled avalanche rectiers
BYM56 series
FEATURES
Glass passivated
High maximum operating
temperature
Low leakage current
Excellent stability
Guaranteed avalanche energy
absorption capability
Available in ammo-pack
Also available with preformed leads
for easy insertion.
DESCRIPTION
Rugged glass package, using a high
temperature alloyed construction.
This package is hermetically sealed
and fatigue free as coefficients of
expansion of all used parts are
matched.
Fig.1 Simplified outline (SOD64) and symbol.

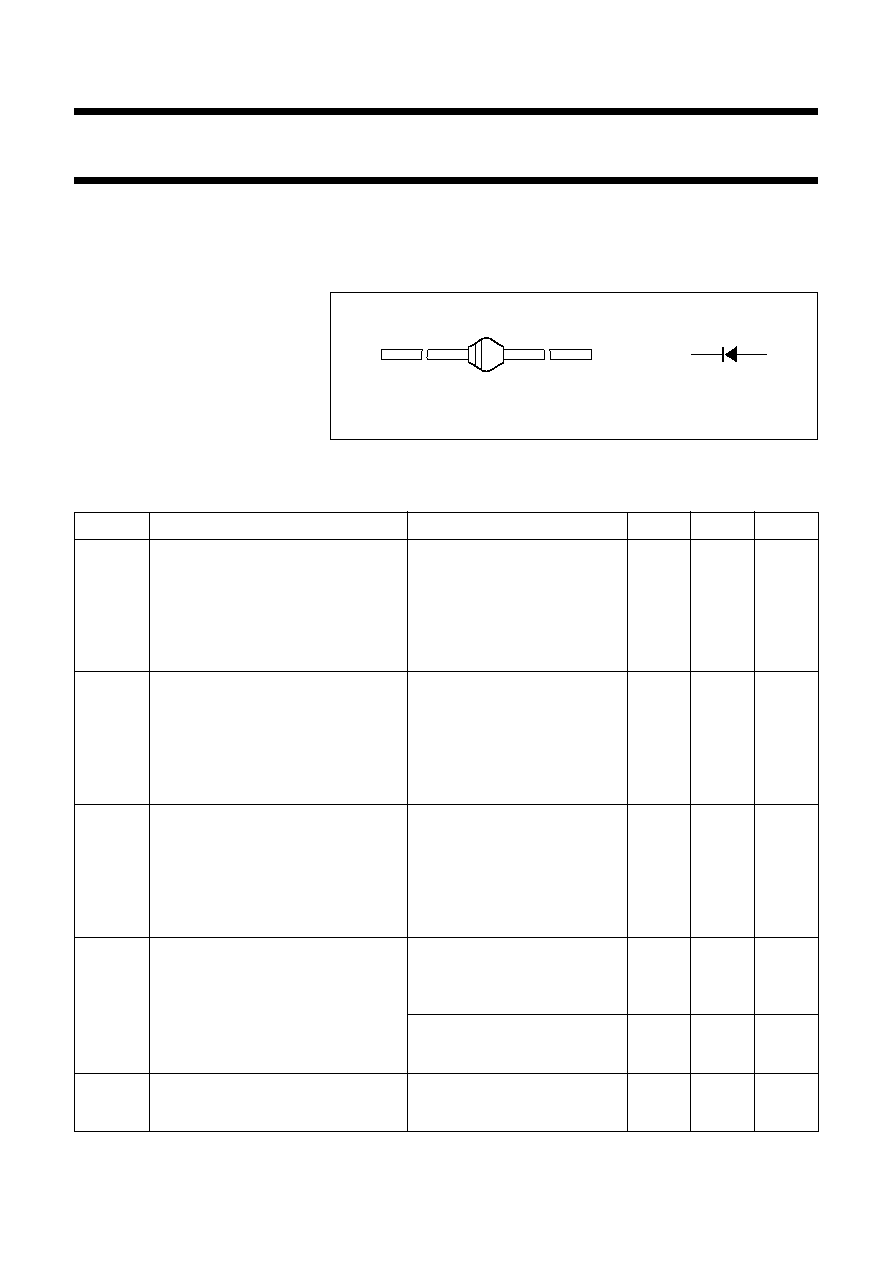

2/3 page (Datasheet)
MAM104
ka
,
,
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 134).
SYMBOL
PARAMETER
CONDITIONS
MIN.
MAX.
UNIT
VRRM
repetitive peak reverse voltage
BYM56A
200
V
BYM56B
400
V
BYM56C
600
V
BYM56D
800
V
BYM56E
1000
V
VRWM
crest working reverse voltage
BYM56A
200
V
BYM56B
400
V
BYM56C
600
V
BYM56D
800
V
BYM56E
1000
V
VR
continuous reverse voltage
BYM56A
200
V
BYM56B
400
V
BYM56C
600
V
BYM56D
800
V
BYM56E
1000
V
IF(AV)
average forward current
Ttp =60 °C;
lead length = 10 mm;
averaged over any 20 ms
period; see Figs 2 and 4
3.5
A
Tamb =65 °C; PCB mounting
(see Fig.9); averaged over any
20 ms period; see Figs 3 and 4
1.4
A
IFSM
non-repetitive peak forward current
t = 10 ms half sinewave;
Tj =Tj max prior to surge;
VR =VRRMmax
80
A
