1996 Sep 26
6
Philips Semiconductors
Product specication
Damper diode
BY228
APPLICATION INFORMATION

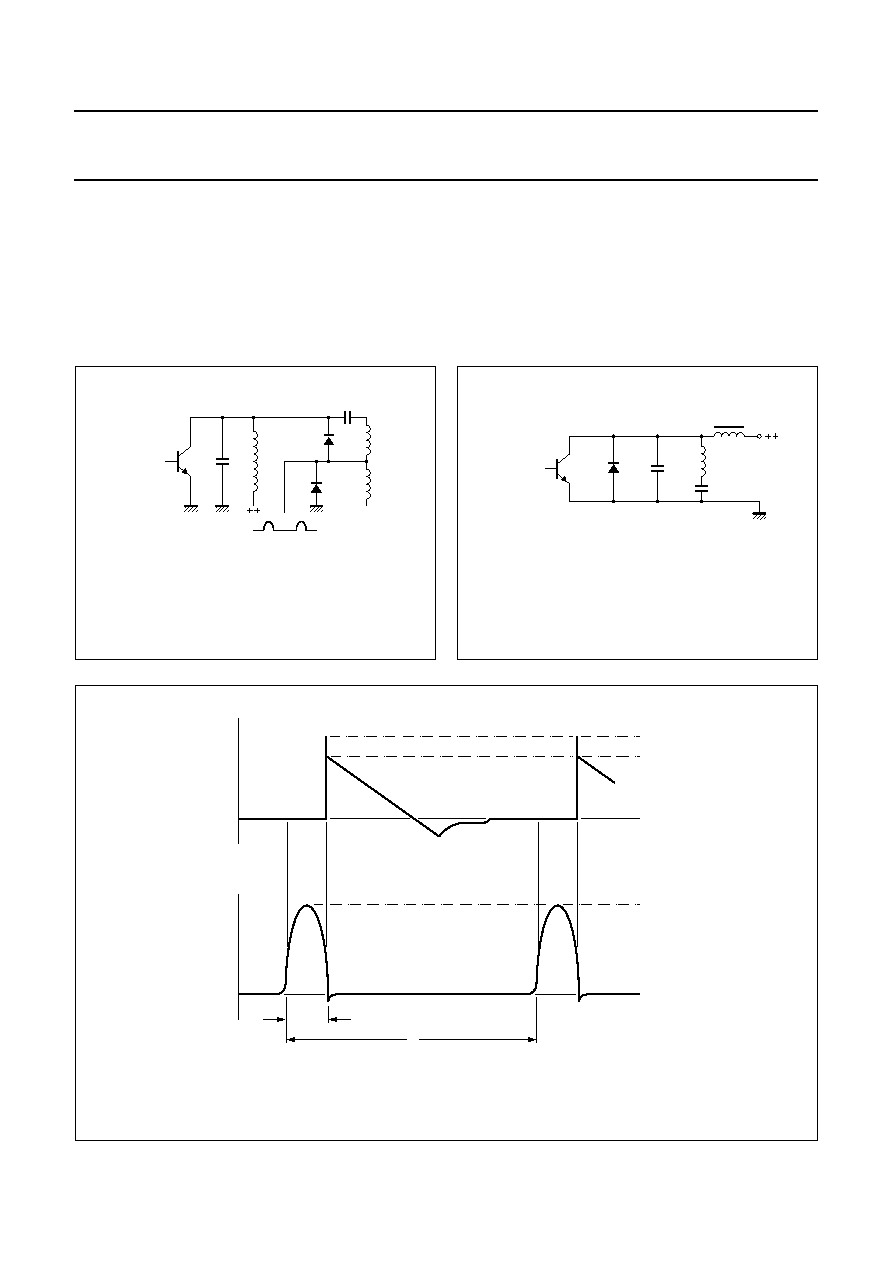

For horizontal deflection circuits, two basic applications are shown in Figs 8 and 9.
The maximum allowable total power dissipation for the diode can be calculated from the thermal resistance Rth j-a and
the difference between Tj max and Tamb max in the application. The maximum IFWM can then be taken from Fig.2.
The basic application waveforms in Fig.10 relate to the circuit in Fig.8. In the circuit in Fig.9 the forward conduction time
of the diode is shorter, allowing a higher IFWM (see Fig.2).
Fig.8
Application in basic high-voltage E/W
modulator circuit.
D1 = BY228.
handbook, halfpage
MBE935
LY
D1
+ (E-W)
horizontal
deflection
transistor
Fig.9
Application in basic horizontal deflection
circuit.
D1 = BY228.
handbook, halfpage
Cf
Cs
LY
D1
MBE934
horizontal
deflection
transistor
Fig.10 Basic application waveforms.
handbook, full pagewidth
T
I F
VR
t p
I FRM
VRRM
I FWM
time
MCD430 - 1
