1999 Aug 27
2
Philips Semiconductors
Product specication
Silicon PIN diode
BAP64-03
FEATURES
High voltage, current controlled
RF resistor for RF attenuators and switches
Low diode capacitance
Low diode forward resistance
Low series inductance
For applications up to 3 GHz.
APPLICATIONS
RF attenuators and switches.
DESCRIPTION
Planar PIN diode in a SOD323 very small plastic SMD
package.
PINNING
PIN
DESCRIPTION
1
cathode
2
anode
Marking code: A3.
handbook, halfpage
12
MAM406

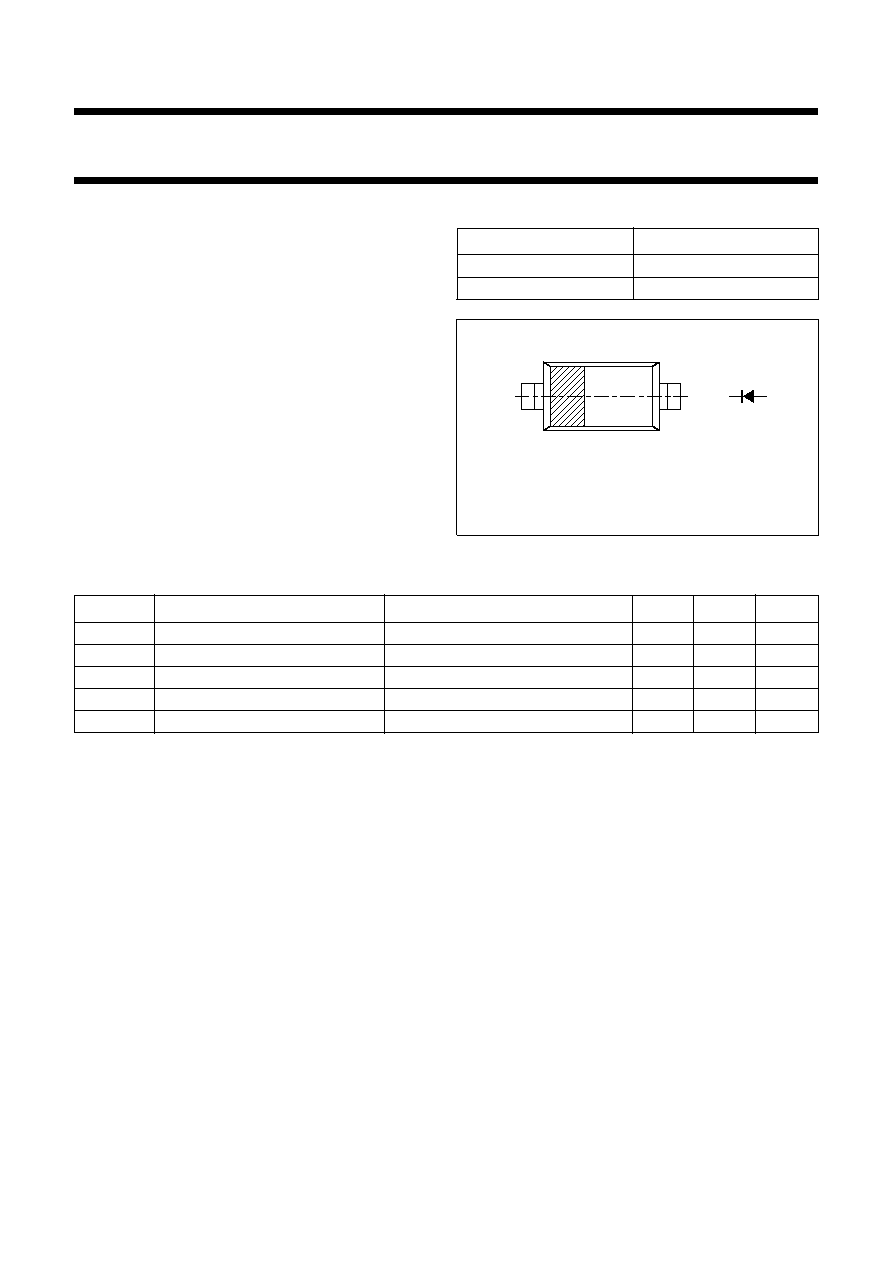

Fig.1 Simplified outline (SOD323) and symbol.
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 134).
SYMBOL
PARAMETER
CONDITIONS
MIN.
MAX.
UNIT
VR
continuous reverse voltage
175
V
IF
continuous forward current
100
mA
Ptot
total power dissipation
Ts =90 °C
500
mW
Tstg
storage temperature
65
+150
°C
Tj
junction temperature
65
+150
°C
