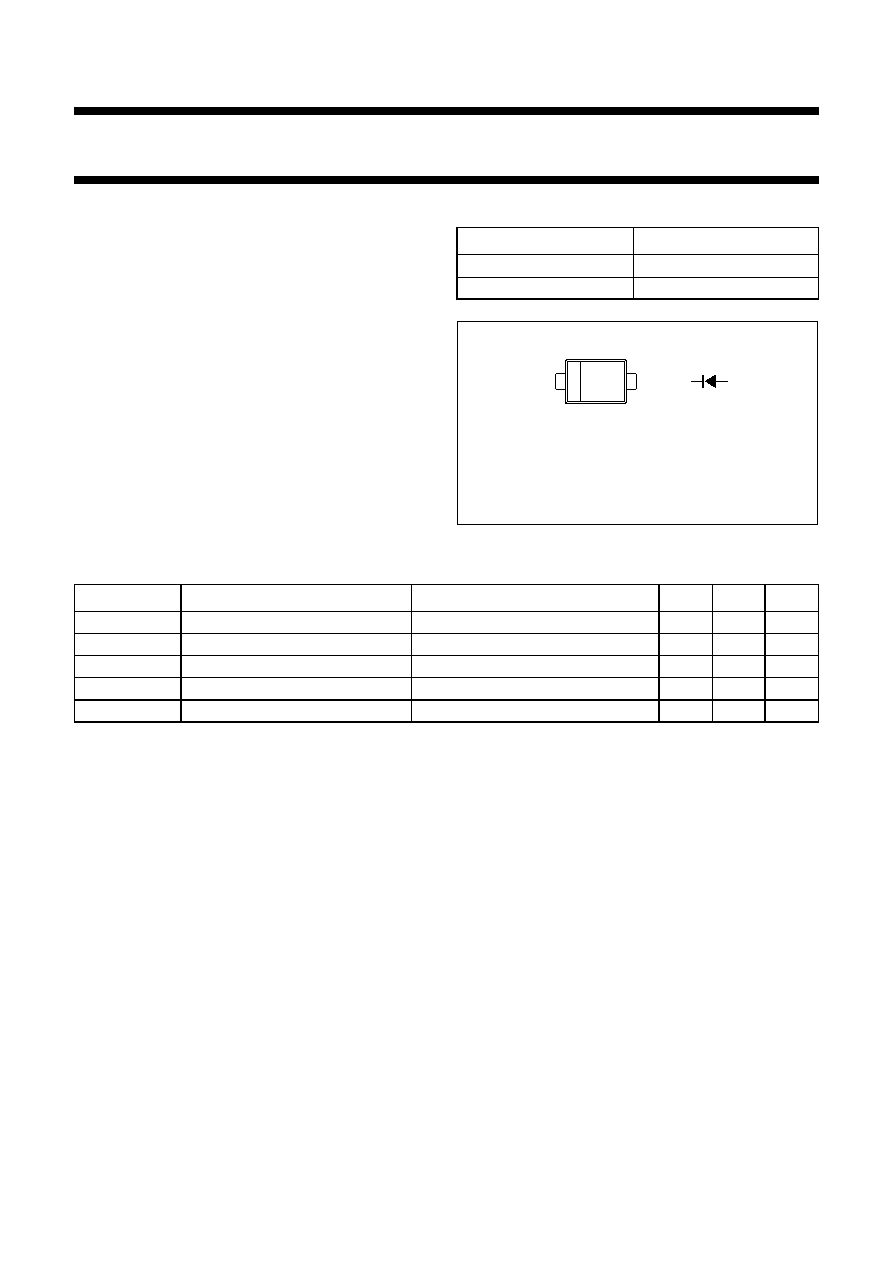

2001 Nov 01
2
Philips Semiconductors
Preliminary specification
Silicon PIN diode
BAP1321-01
FEATURES
High voltage, current controlled
RF resistor for RF attenuators and switches
Low diode capacitance
Low diode forward resistance
Very low series inductance
For applications up to 3 GHz.
APPLICATIONS
RF attenuators and switches.
DESCRIPTION
Planar PIN diode in a SOD723A ultra small plastic SMD
package.
PINNING
PIN
DESCRIPTION
1
cathode
2
anode
handbook, halfpage
12
;
Top view
MAM405
Marking code: K7
Fig.1 Simplified outline (SOD723A) and symbol.
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 60134).
SYMBOL
PARAMETER
CONDITIONS
MIN.
MAX.
UNIT
VR
continuous reverse voltage
60
V
IF
continuous forward current
100
mA
Ptot
total power dissipation
Ts =90 °C
315
mW
Tstg
storage temperature
65
+150
°C
Tj
junction temperature
65
+150
°C
