December 1990
10
Philips Semiconductors
Product specication
8-channel analog multiplexer/demultiplexer
74HC/HCT4051
AC CHARACTERISTICS FOR 74HCT
GND = 0 V; tr =tf = 6 ns; CL =50pF
SYMBOL
PARAMETER
Tamb (°C)
UNIT
TEST CONDITIONS
74HCT
VCC
(V)
VEE
(V)
OTHER
+25
40 to +85 40 to +125
min.
typ.
max.
min.
max.
min.
max.
tPHL/ tPLH
propagation
delay Vis to Vos
5
4
12
8
15
10
18
12
ns
4.5
0
4.5
RL = ∞; CL =50pF
(see Fig.17)
tPZH/ tPZL
turn “ON” time
E to Vos
26
16
55
39
69
49
83
59
ns
4.5
0
4.5
RL =1k; CL =50pF
(see Fig.18, 19 and 20)
tPZH/ tPZL
turn “ON” time
Sn to Vos
28
16
55
39
69
49
83
59
ns
4.5
0
4.5
RL =1k; CL =50pF
(see Fig.18, 19 and 20)
tPHZ/ tPLZ
turn “OFF”
time E to Vos
19
16
45
32
56
40
68
48
ns
4.5
0
4.5
RL =1k; CL =50pF
(see Fig.18, 19 and 20)
tPHZ/ tPLZ
turn “OFF”
time Sn to Vos
23
16
45
32
56
40
68
48
ns
4.5
0
4.5
RL =1k; CL =50pF
(see Fig.18, 19 and 20)

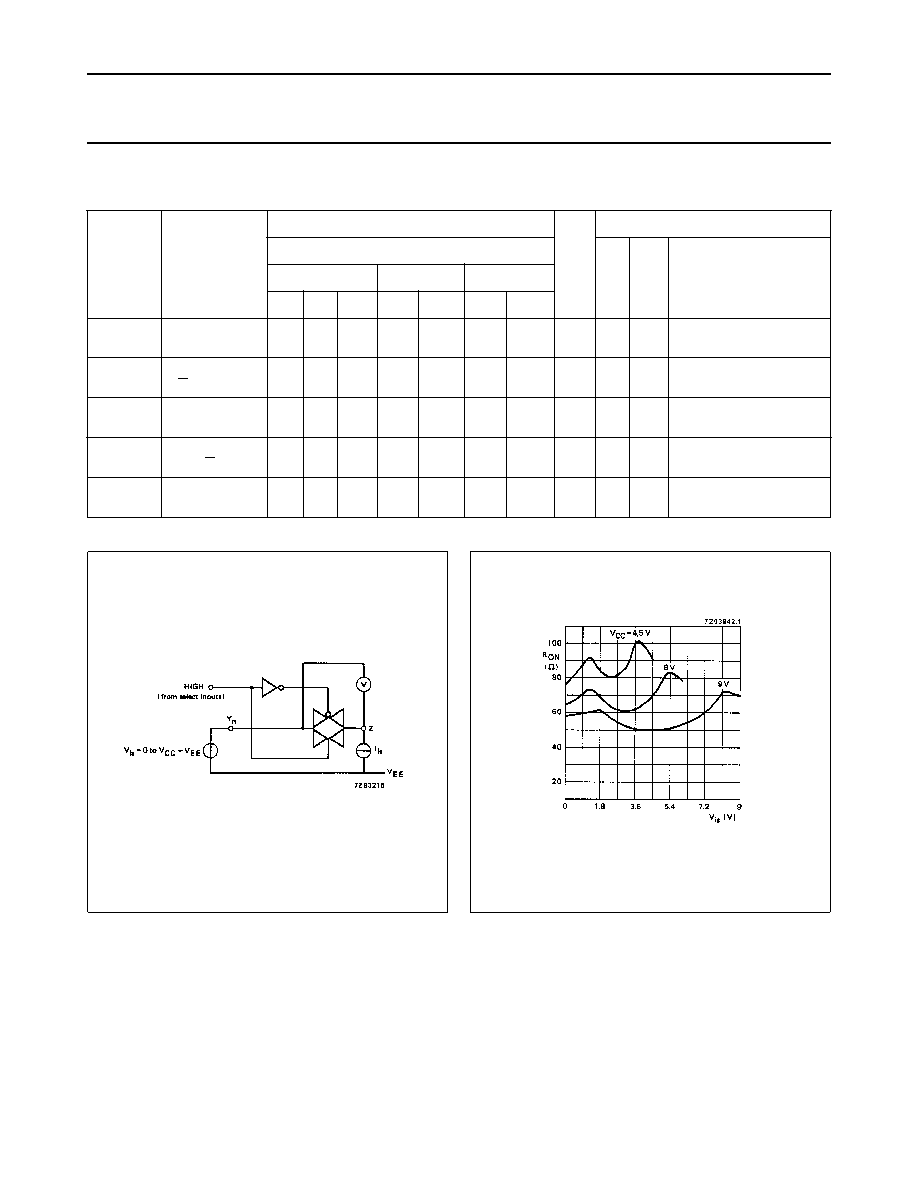

Fig.8 Test circuit for measuring RON.
Fig.9
Typical RON as a function of input voltage Vis
for Vis = 0 to VCC VEE.
