AA280-25, AA280-25LF: GaAs IC 5-Bit Digital Attenuator
0.5 dB LSB 300 kHz–2 GHz
DATA SHEET
Features
●
Attenuation 0.5 dB steps to 15.5 dB with high accuracy
●
Low DC power consumption
●
Low-cost SOIC-16 plastic package
●
Available lead (Pb)-free and RoHS-compliant MSL-1 @ 260 °C
per JEDEC J-STD-020
Description
The AA280-25 is a 5-bit, GaAs IC FET digital attenuator in a low-
cost SOIC-16 package. This attenuator has an LSB of 0.5 dB and
a total attenuation of 15.5 dB. The AA280-25 is particularly suited
where high attenuation accuracy, low insertion loss and low
intermodulation products are required. Typical applications
include cellular radio, wireless data, wireless local loop and other
gain level control circuits.
Skyworks offers lead (Pb)-free, RoHS (Restriction of
Hazardous Substances)-compliant packaging.
NEW
V8
V7
V6
V5
V4
V3
V2
V1
J1
GND
J2
12
3
4
5
6
7
8
16
15
14
13
12
11
10
9
8 dB
4 dB
2 dB
1 dB
0.5 dB

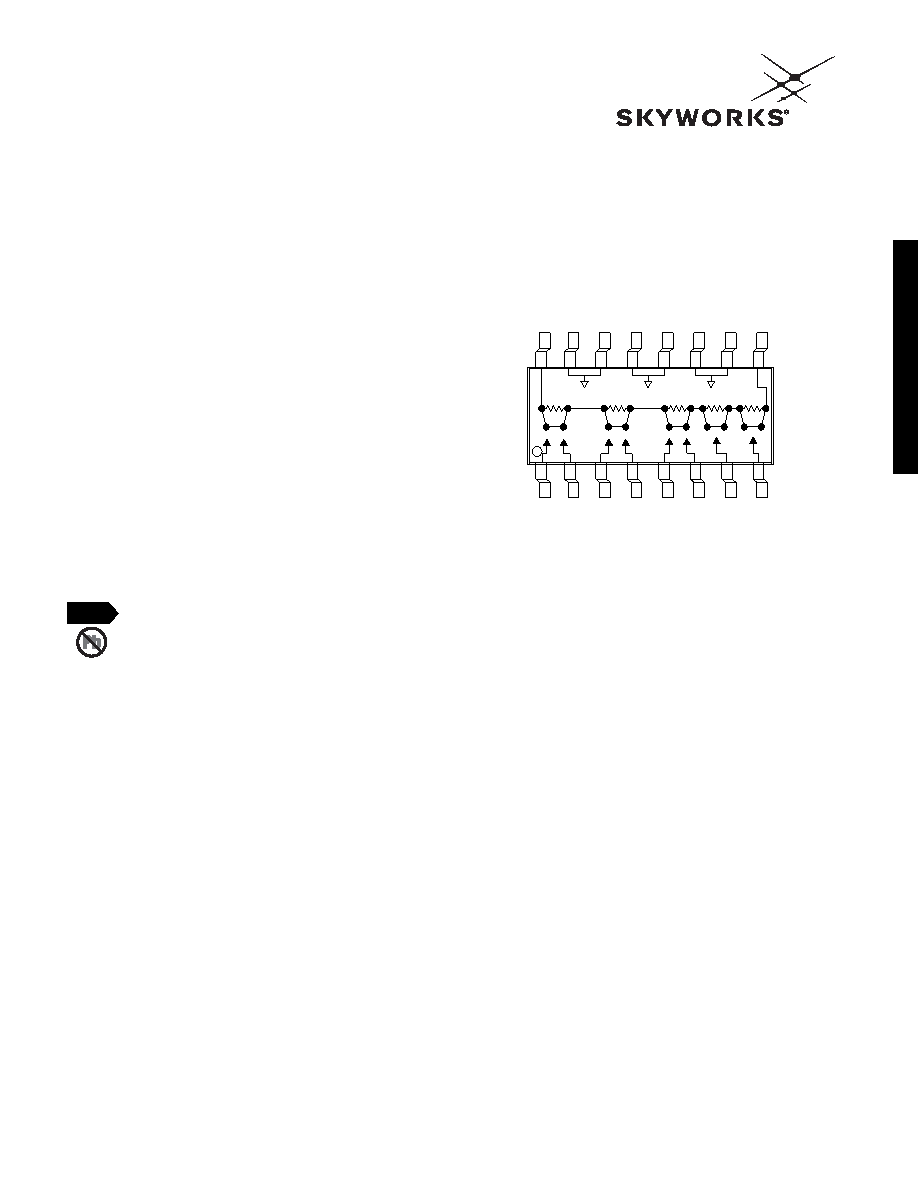

Pin Out
