AD7729
–9–
REV. 0
FUNCTIONAL DESCRIPTION
BASEBAND CODEC
Receive Section
The receive section consists of I and Q receive channels, each
comprising of a simple switched-capacitor filter followed by a
15-bit sigma-delta ADC. On-board digital filters, which form
part of the sigma-delta ADCs, also perform critical system-level
filtering. Their amplitude and phase response characteristics
provide excellent adjacent channel rejection. The receive sec-
tion is also provided with a low power sleep mode to place the
receive section on standby between receive bursts, drawing only
minimal current.

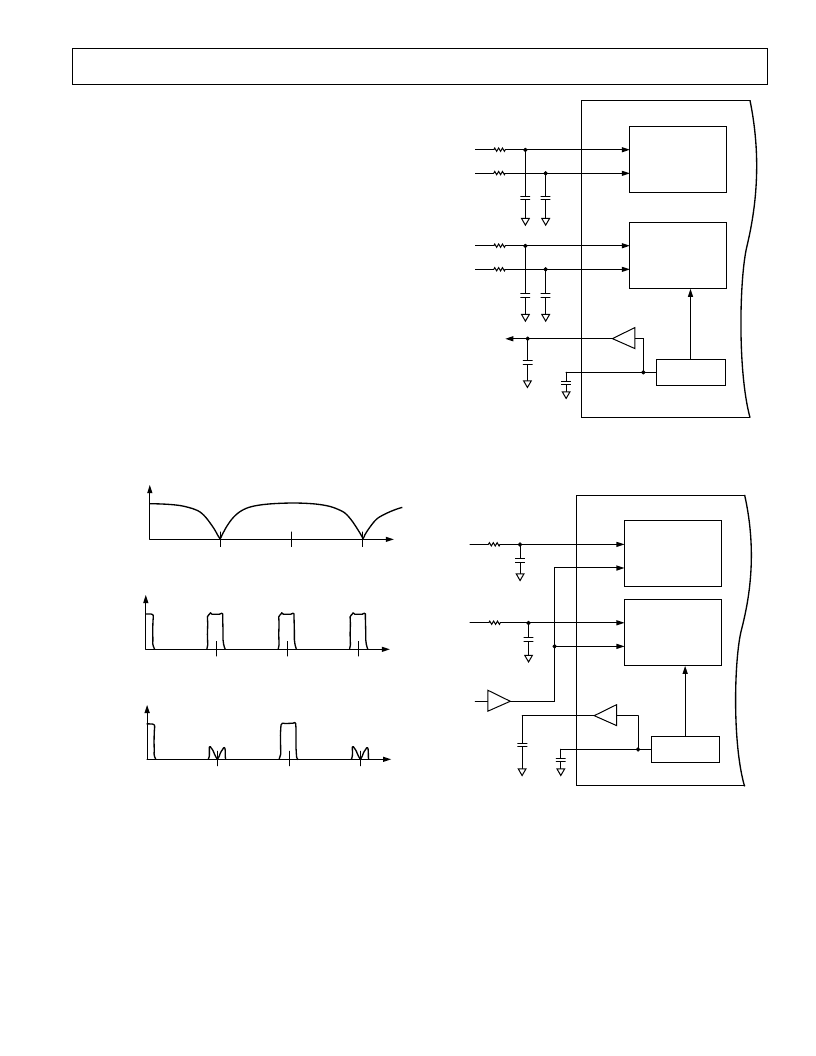

Switched Capacitor Input
The receive section analog front-end is sampled at 13 MHz by a
switched-capacitor filter. The filter has a zero at 6.5 MHz as
shown in Figure 8a. The receive channel also contains a digital
low-pass filter (further details are contained in the following
section) which operates at a clock frequency of 6.5 MHz. Due
to the sampling nature of the digital filter, the passband is re-
peated about the operating clock frequency and at multiples of
the clock frequency (Figure 8b). Because the first null of the
switched-capacitor filter coincides with the first image of the
digital filter, this image is attenuated by an additional 30 dBs
(Figure 8c), further simplifying the external antialiasing require-
ments (see Figures 9 and 10).
FRONT-END
ANALOG FILTER
TRANSFER
FUNCTION
0 dBs
6.5
13
19.5
MHz
a) Switched-Cap Filter Frequency Response
MHz
6.5
13
19.5
DIGITAL FILTER
TRANSFER
FUNCTION
0 dBs
b) Digital Filter Frequency Response
MHz
6.5
13
19.5
SYSTEM FILTER
TRANSFER
FUNCTION
0 dBs
c) Overall System Response of the Receive
Channel
Figure 8.
The circuitry of Figure 9 implements first-order low-pass filters
with a 3 dB point at 338 kHz; these are the only filters that
must be implemented external to the baseband section to pre-
vent aliasing of the sampled signal.
VOLTAGE
REFERENCE
0.1
m
F
0.1
m
F
REFCAP
REFOUT
TO INPUT BIAS
CIRCUITRY
100pF
100pF
4.7k
V
4.7k
V
4.7k
V
4.7k
V
100pF
100pF
I CHANNEL
Q CHANNEL
AD7729
IRxP
IRxN
QRxP
QRxN
IRx
QRx
Figure 9. Example Circuit for Differential Input
Figure 10 shows the recommended single-ended analog input
circuit.
VOLTAGE
REFERENCE
0.1
m
F
0.1
m
F
REFCAP
REFOUT
100pF
4.7k
V
4.7k
V
100pF
I CHANNEL
Q CHANNEL
AD7729
IRxP
IRxN
QRxP
QRxN
IRx
QRx
V
BIAS
HIGH SPEED
BUFFER
Figure 10. Example Circuit for Single-Ended Input
