REV. B
Information furnished by Analog Devices is believed to be accurate and
reliable. However, no responsibility is assumed by Analog Devices for its
use, nor for any infringements of patents or other rights of third parties
which may result from its use. No license is granted by implication or
otherwise under any patent or patent rights of Analog Devices.
a
LC
2
MOS
Complete 12-Bit Multiplying DAC
AD7845
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781/329-4700
World Wide Web Site: http://www.analog.com
Fax: 781/326-8703
Analog Devices, Inc., 1999

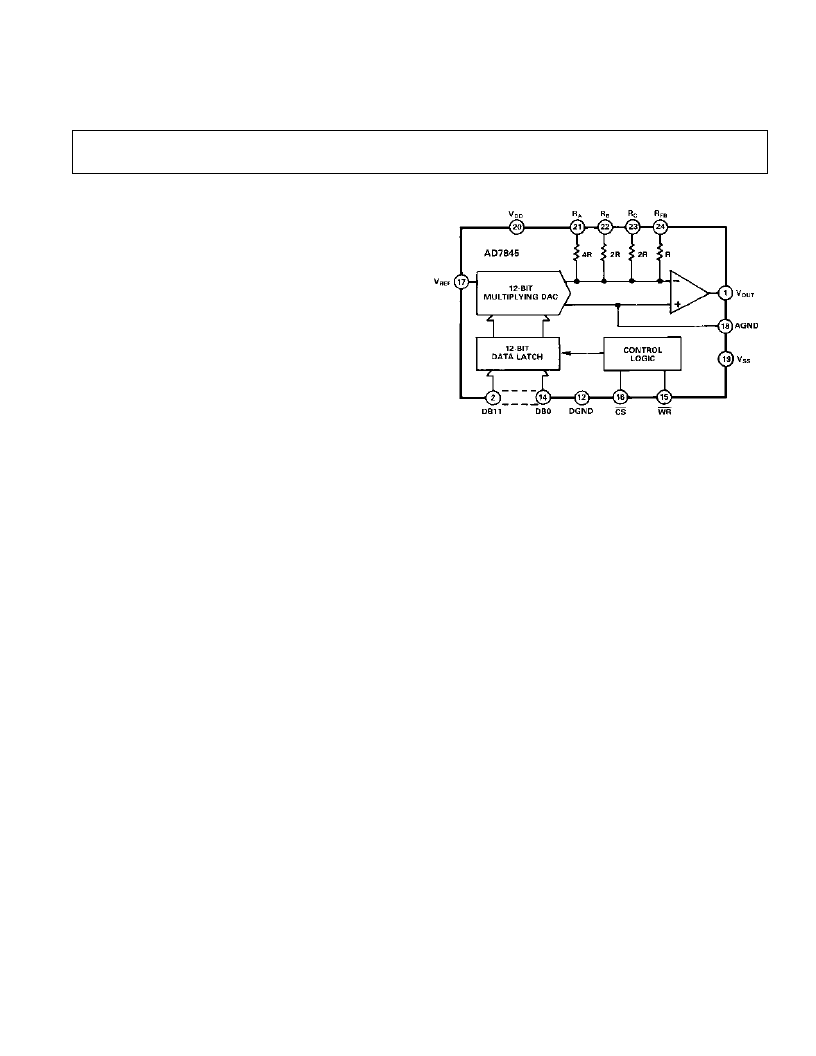

FUNCTIONAL BLOCK DIAGRAM
PRODUCT HIGHLIGHTS
1. Voltage Output Multiplying DAC
The AD7845 is the first DAC which has a full 4-quadrant
multiplying capability and an output amplifier on chip. All
specifications include amplifier performance.
2. Matched Application Resistors
Three application resistors provide an easy facility for gain
ranging, voltage offsetting, etc.
3. Space Saving
The AD7845 saves space in two ways. The integration of the
output amplifier on chip means that chip count is reduced.
The part is housed in skinny 24-lead 0.3" DIP, 28-terminal
LCC and PLCC and 24-terminal SOIC packages.
GENERAL DESCRIPTION
The AD7845 is the industry’s first 4-quadrant multiplying D/A
converter with an on-chip amplifier. It is fabricated on the
LC
2
MOS process, which allows precision linear components
and digital circuitry to be implemented on the same chip.
The 12 data inputs drive latches which are controlled by stan-
dard
CS
and
WR
signals, making microprocessor interfacing
simple. For stand-alone operation, the
CS
and
WR
inputs can
be tied to ground, making all latches transparent. All digital
inputs are TTL and 5 V CMOS compatible.
The output amplifier can supply
±
10 V into a 2 k
load. It is
internally compensated, and its input offset voltage is low due to
laser trimming at wafer level. For normal operation, R
FB
is tied
to V
OUT
, but the user may alternatively choose R
A
, R
B
or R
C
to
scale the output voltage range.
FEATURES
12-Bit CMOS MDAC with Output Amplifier
4-Quadrant Multiplication
Guaranteed Monotonic (T
MIN
to T
MAX
)
Space-Saving 0.3" DIPs and 24- or 28-Terminal Surface
Mount Packages
Application Resistors On Chip for Gain Ranging, etc.
Low Power LC
2
MOS
APPLICATIONS
Automatic Test Equipment
Digital Attenuators
Programmable Power Supplies
Programmable Gain Amplifiers
Digital-to-4–20 mA Converters
