參數資料
| 型號： | AD7849TQ |
| 廠商： | ANALOG DEVICES INC |
| 元件分類： | DAC |
| 英文描述： | Serial Input, 14-Bit/16-Bit DAC |
| 中文描述： | SERIAL INPUT LOADING, 7 us SETTLING TIME, 16-BIT DAC, CDIP20 |
| 封裝： | CERDIP-20 |
| 文件頁數： | 15/15頁 |
| 文件大小： | 211K |
| 代理商： | AD7849TQ |
AD7849
REV. B
–
15
–

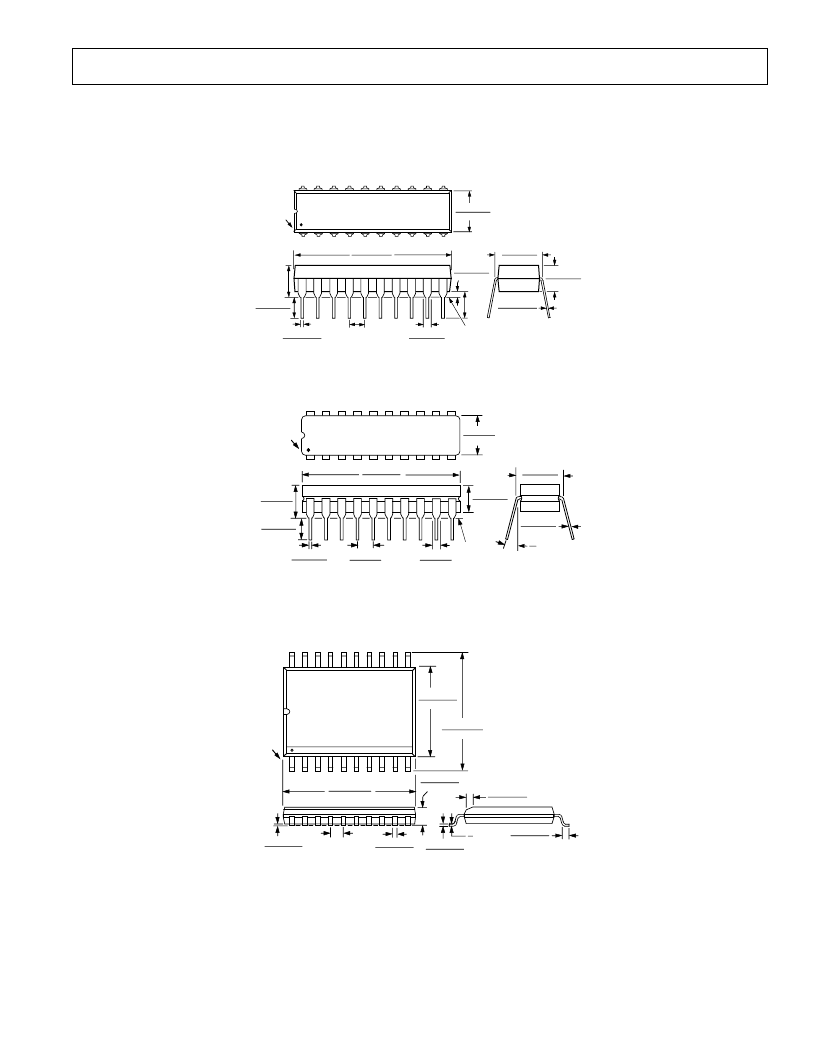

OUTLINE DIMENSIONS
Dimensions shown in inches and (mm).
Plastic DIP (N-20)
0.325 (8.25)
0.300 (7.62)
0.015 (0.381)
0.008 (0.204)
0.195 (4.95)
0.115 (2.93)
PIN 1
0.280 (7.11)
0.240 (6.10)
20
1
11
10
0.210
0.200 (5.05)
0.125 (3.18)
0.022 (0.558)
0.014 (0.356)
BSC
0.070 (1.78)
0.045 (1.15)
SEATING
PLANE
0.060 (1.52)
0.015 (0.38)
0.150
1.060 (26.90)
0.925 (23.50)
Cerdip (Q-20)
0.32 (8.128)
0.29 (7.366)
0.011 (0.28)
0.009 (0.23)
15
°
0
°
PIN 1
0.28 (7.11)
0.24 (6.1)
10
11
1
20
0.97 (24.64)
0.935 (23.75)
0.15 (3.8)
0.125 (3.18)
0.02 (0.5)
0.016 (0.41)
0.07 (1.78)
0.05 (1.27)
0.11 (2.79)
0.09 (2.28)
0.18 (4.57)
0.125 (3.18)
SEATING
PLANE
0.20 (5.0)
0.14 (3.56)
LEAD NO. 1 IDENTIFIED BY DOT OR NOTCH
LEADS ARE SOLDER OR TIN-PLATED KOVAR OR ALLOY 42
SOIC (R-20)
PIN 1
0.2992 (7.60)
0.2914 (7.40)
0.4193 (10.65)
0.3937 (10.00)
1
20
11
10
0.0125 (0.32)
0.0091 (0.23)
0.0500 (1.27)
0.0157 (0.40)
8
°
0
°
0.0291 (0.74)
0.0098 (0.25)
x 45
°
0.5118 (13.00)
0.4961 (12.60)
0.0192 (0.49)
0.0138 (0.35)
(1.27)
BSC
0.0118 (0.30)
0.0040 (0.10)
0.1043 (2.65)
0.0926 (2.35)
P
C
–
0
–
3
