450 MHz, Triple 16 × 5
Video Crosspoint Switch
AD8178
FEATURES
Rev.
0
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700
Fax: 781.461.3113
2007
Analog Devices, Inc. All rights reserved.
www.analog.com
Large, triple 16 × 5 high speed, nonblocking switch array
Pin compatible with the
AD8175
and
AD8176
(16 × 9 switch
arrays) and the
AD8177
(16 × 5 switch array)
Differential or single-ended operation
Supports sync-on common-mode and sync-on color
operating modes
RGB and HV outputs available for driving monitor directly
G = +4 operation (differential input to differential output)
Flexible power supplies: +5 V or ±2.5 V
Logic ground for convenient control interface
Serial or parallel programming of switch array
High impedance output disable allows connection of
multiple devices with minimal loading on output bus
Adjustable output CM and black level through external pins
Excellent ac performance
Bandwidth: 450 MHz
Slew rate: 1650 V/μs
Settling time: 4 ns to 1% to support 1600 × 1200 @ 85Hz
Low power of 2.3 W
Low all hostile crosstalk
82 dB @ 5 MHz
47 dB @ 500 MHz
Wide input common-mode range of 4 V
Reset pin allows disabling of all outputs
Fully populated 26 × 26 ball PBGA package
(27 mm × 27 mm, 1 mm ball pitch)
Convenient grouping of RGB signals for easy routing
APPLICATIONS
RGB video switching
KVM
Professional video

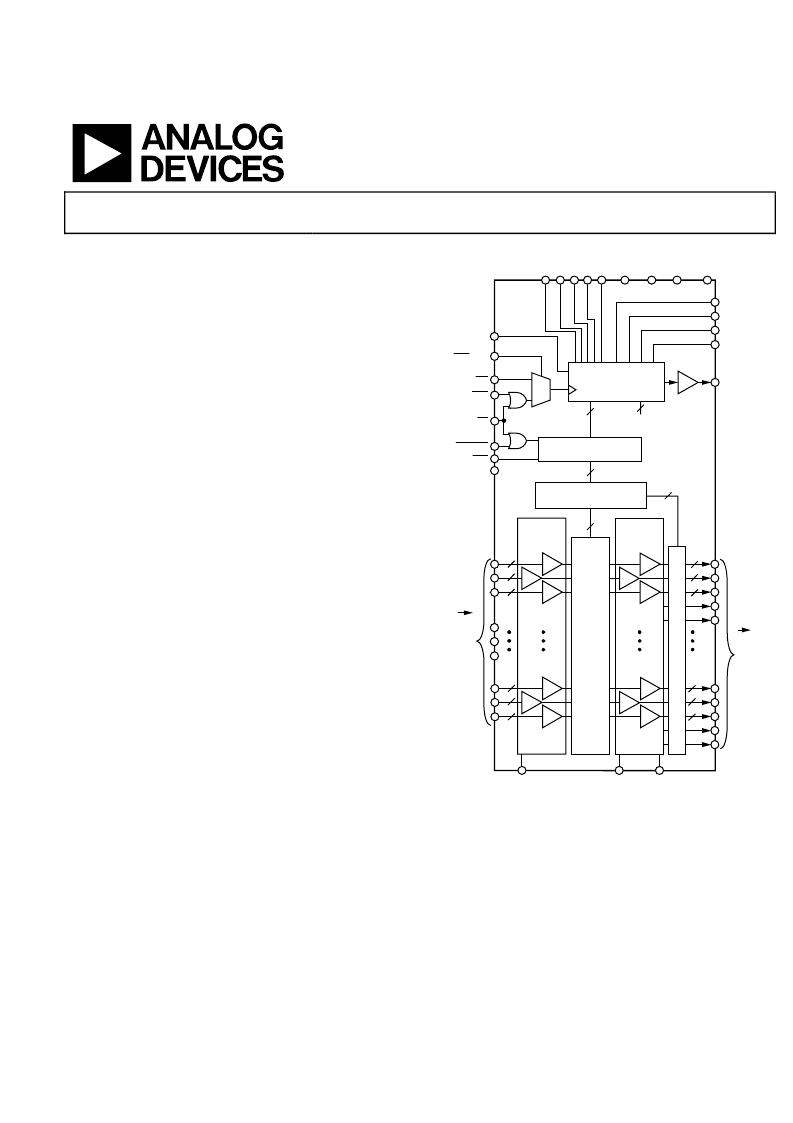

FUNCTIONAL BLOCK DIAGRAM
D0 D1 D2 D3 D4 VPOS VNEG VDD
2
2
2
2
2
2
2
2
2
2
2
2
INPUT
RECEIVER
G = +2
OUTPUT
BUFFER
G = +1
5
80
S
R
E
25
VBLK
VOCM_CMENCON
Figure 1.
VOCM_CMENCOFF
R
G
B
R
G
B
1
C
CMENC
SERIN
RST
UPDATE
CLK
WE
SER/PAR
DGND
SEROUT
5
C
H
B
G
R
V
H
B
G
R
V
25
A0
A1
A2
AD8178
CS
0
1
0
SWITCH
MATRIX
G = +2
45-BIT SHIFT
REGISTER WITH
5-BIT PARALLEL
LOADING
DECODE
5 × 5:16 DECODERS
PARALLEL LATCH
20
NO
CONNECT
CLR
GENERAL DESCRIPTION
The AD8178 is a high speed, triple 16 × 5 video crosspoint switch
matrix. It supports 1600 × 1200 RGB displays @ 85 Hz refresh rate,
by offering a 450 MHz bandwidth and a slew rate of 1650 V/μs.
With 82 dB of crosstalk and 90 dB isolation (@ 5 MHz), the
AD8178 is useful in many high speed video applications.
The AD8178 supports two modes of operation: differential-in
to differential-out mode with sync-on CM signaling passed
through the switch and differential-in to differential-out mode
with CM signaling removed through the switch. The output CM
and black level can be conveniently set via external pins.
The outputs can be used single-ended in conjunction with
decoded H and V outputs to drive a monitor directly.
The independent output buffers of the AD8178 can be placed
into a high impedance state to create larger arrays by paralleling
crosspoint outputs. Inputs can be paralleled as well. The AD8178
offers both serial and a parallel programming modes.
The AD8178 is packaged in a fully-populated 26 × 26 ball
PBGA package and is available over the extended industrial
temperature range of 40°C to +85°C.
