參數資料
| 型號： | AD8306ACHIPS |
| 廠商： | ANALOG DEVICES INC |
| 元件分類： | 運動控制電子 |
| 英文描述： | 5 MHz-400 MHz 100 dB High Precision Limiting-Logarithmic Amplifier |
| 中文描述： | LOG OR ANTILOG AMPLIFIER, 395 MHz BAND WIDTH, UUC16 |
| 封裝： | DIE |
| 文件頁數： | 3/16頁 |
| 文件大小： | 397K |
| 代理商： | AD8306ACHIPS |

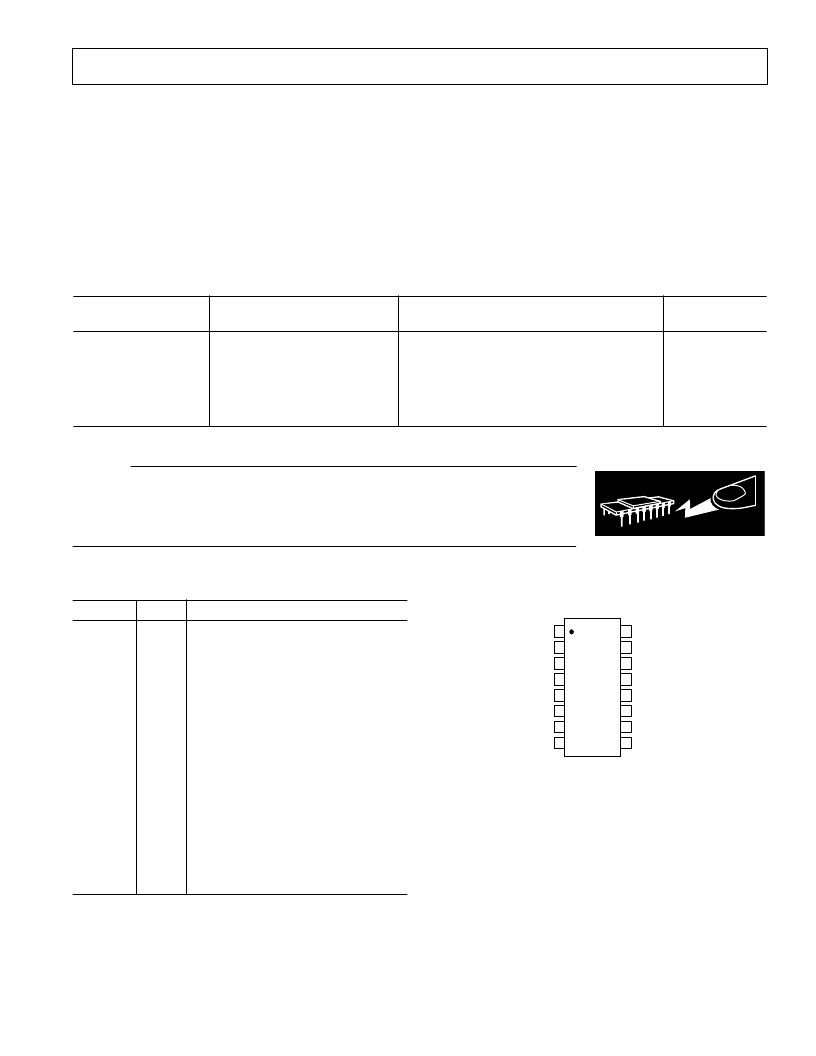

REV. A
AD8306
–3–
ABSOLUTE MAXIMUM RATINGS*
Supply Voltage V
S
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.5 V
Input Level, Differential (re 50
) . . . . . . . . . . . . . . . +26 dBm
Input Level, Single-Ended (re 50
) . . . . . . . . . . . . . +20 dBm
Internal Power Dissipation . . . . . . . . . . . . . . . . . . . . .800 mW
θ
JA
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
°
C/W
θ
JC
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
°
C/W
Maximum Junction Temperature . . . . . . . . . . . . . . . . +125
°
C
Operating Temperature Range . . . . . . . . . . . .–40
°
C to +85
°
C
ORDERING GUIDE
Temperature
Range
Package
Description
Package
Options
Model
AD8306AR
AD8306AR-REEL
AD8306AR-REEL7
AD8306ACHIPS
5962-9864601QEA
AD8306-EVAL
–40
°
C to +85
°
C
–40
°
C to +85
°
C
–40
°
C to +85
°
C
–40
°
C to +85
°
C
–55
°
C to +125
°
C
16-Lead Narrow Body SO
13" Tape and Reel
7" Tape and Reel
Die
16-Lead Side-Brazed Ceramic DIP
Evaluation Board
SO-16
SO-16
SO-16
D-16
CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily
accumulate on the human body and test equipment and can discharge without detection.
Although the AD8306 features proprietary ESD protection circuitry, permanent damage may
occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD
precautions are recommended to avoid performance degradation or loss of functionality.
WARNING!
ESD SENSITIVE DEVICE
PIN CONFIGURATION
TOP VIEW
(Not to Scale)
16
15
14
13
12
11
10
9
1
2
3
4
5
6
7
8
COM2
VLOG
AD8306
VPS1
PADL
INHI
INLO
PADL
COM1
ENBL
VPS2
PADL
LMHI
LMLO
PADL
FLTR
LMDR
PIN FUNCTION DESCRIPTIONS
Pin
Name
Function
1
2
COM2
VPS1
Special Common Pin for RSSI Output.
Supply Pin for First Five Amplifier Stages
and the Main Biasing System.
Four Tie-Downs to the Paddle on
which the IC Is Mounted; Grounded.
Signal Input, HI or Plus Polarity.
Signal Input, LO or Minus Polarity.
Main Common Connection.
Chip Enable; Active When HI.
LMDR Limiter Drive Programming Pin.
FLTR
RSSI Bandwidth-Reduction Pin.
LMLO
Limiter Output, LO or Minus Polarity.
LMHI
Limiter Output, HI or Plus Polarity.
VPS2
Supply Pin for Sixth Gain Stage, Limiter
and RSSI Output Stage Load Current.
VLOG
Logarithmic (RSSI) Output.
3, 6, 11, 14 PADL
4
5
7
8
9
10
12
13
15
INHI
INLO
COM1
ENBL
16
Storage Temperature Range
–65
°
C to +150
°
C
Lead Temperature Range (Soldering 60 sec)
+300
°
C
*Stresses above those listed under Absolute Maximum Ratings may cause perma-
nent damage to the device. This is a stress rating only; functional operation of the
device at these or any other conditions above those indicated in the operational
section of this specification is not implied. Exposure to absolute maximum rating
conditions for extended periods may effect device reliability.
