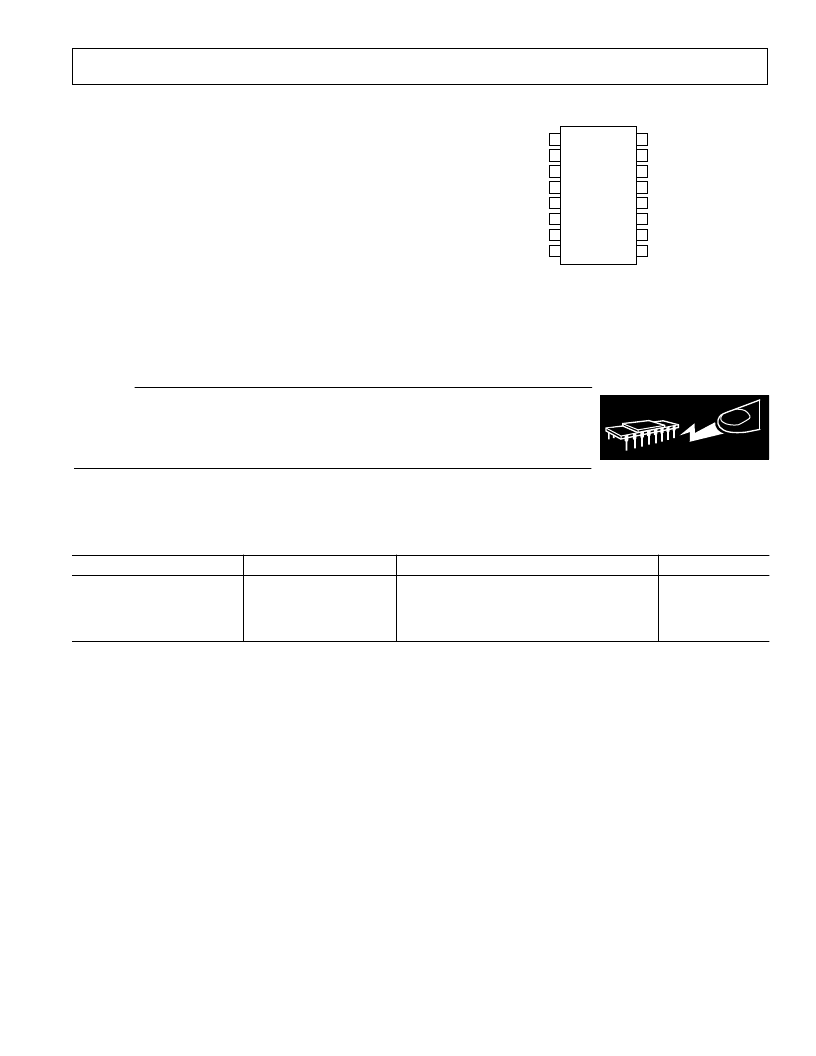

REV. 0
AD8345
–3–
CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily
accumulate on the human body and test equipment and can discharge without detection. Although
the AD8345 features proprietary ESD protection circuitry, permanent damage may occur on
devices subjected to high-energy electrostatic discharges. Therefore, proper ESD precautions are
recommended to avoid performance degradation or loss of functionality.
WARNING!
ESD SENSITIVE DEVICE
ABSOLUTE MAXIMUM RATINGS
*
Supply Voltage VPS1, VPS2 . . . . . . . . . . . . . . . . . . . . . 5.5 V
Input Power LOIP, LOIN (re 50
) . . . . . . . . . . . . . 10 dBm
IBBP, IBBN, QBBP, QBBN . . . . . . . . . . . . . . . . . 0 V, 2.5 V
Internal Power Dissipation . . . . . . . . . . . . . . . . . . . . 500 mW
θ
JA
(Exposed Paddle Soldered Down) . . . . . . . . . . . . 30
°
C/W
θ
JA
(Exposed Paddle not Soldered Down) . . . . . . . . . 95
°
C/W
Maximum Junction Temperature . . . . . . . . . . . . . . . . 150
°
C
Operating Temperature Range . . . . . . . . . . . –40
°
C to +85
°
C
Storage Temperature Range . . . . . . . . . . . . –65
°
C to +150
°
C
Lead Temperature Range (Soldering 60 sec) . . . . . . . . 300
°
C
*
Stresses above those listed under Absolute Maximum Ratings may cause perma-
nent damage to the device. This is a stress rating only; functional operation of the
device at these or any other conditions above those indicated in the operational
section of this specification is not implied. Exposure to absolute maximum rating
conditions for extended periods may affect device reliability.
PIN CONFIGURATION
16
15
14
13
12
11
10
9
QBBP
QBBN
COM3
COM3
VPS2
VOUT
COM2
COM3
1
2
3
4
5
6
7
8
IBBP
IBBN
COM3
COM1
LOIN
LOIP
VPS1
ENBL
AD8345
TOP VIEW
(Not to Scale)
ORDERING GUIDE
Model
Temperature Range
–40
°
C to +85
°
C
Package Description
Package Option
AD8345ARE
AD8345ARE-REEL
AD8345ARE-REEL7
AD8345-EVAL
Tube (16-Lead TSSOP with Exposed Pad)
13" Tape and Reel
7" Tape and Reel
Evaluation Board
RE-16
