| 型號： | AD8541ART |
| 廠商： | ANALOG DEVICES INC |
| 元件分類： | 運動控制電子 |
| 英文描述： | General Purpose CMOS Rail-to-Rail Amplifiers |
| 中文描述： | OP-AMP, 7000 uV OFFSET-MAX, 0.98 MHz BAND WIDTH, PDSO5 |
| 封裝： | PLASTIC, MO-178AA, SOT-23, 5 PIN |
| 文件頁數： | 1/12頁 |
| 文件大小： | 170K |
| 代理商： | AD8541ART |
REV. A
Information furnished by Analog Devices is believed to be accurate and
reliable. However, no responsibility is assumed by Analog Devices for its
use, nor for any infringements of patents or other rights of third parties
which may result from its use. No license is granted by implication or
otherwise under any patent or patent rights of Analog Devices.
a
AD8541/AD8542/AD8544
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781/329-4700
World Wide Web Site: http://www.analog.com
Fax: 781/326-8703
Analog Devices, Inc., 2000
1
2
3
4
IN A
+IN A
V+
OUT D
IN D
+IN D
OUT A
V
+IN C
AD8544
5
6
7
10
9
8
IN B
OUT B
IN C
OUT C
+IN B
11
12
13
14
1
2
3
4
8
7
6
5
AD8541
IN A
V
+IN A
V+
OUT A
NC
NC
NC
NC = NO CONNECT
1
2
3
5
4
IN A
+IN A
V+
OUT A
AD8541
V
1
2
3
4
8
7
6
5
AD8542
IN A
V
+IN A
OUT B
IN B
+IN B
V+
OUT A
General Purpose CMOS
Rail-to-Rail Amplifiers

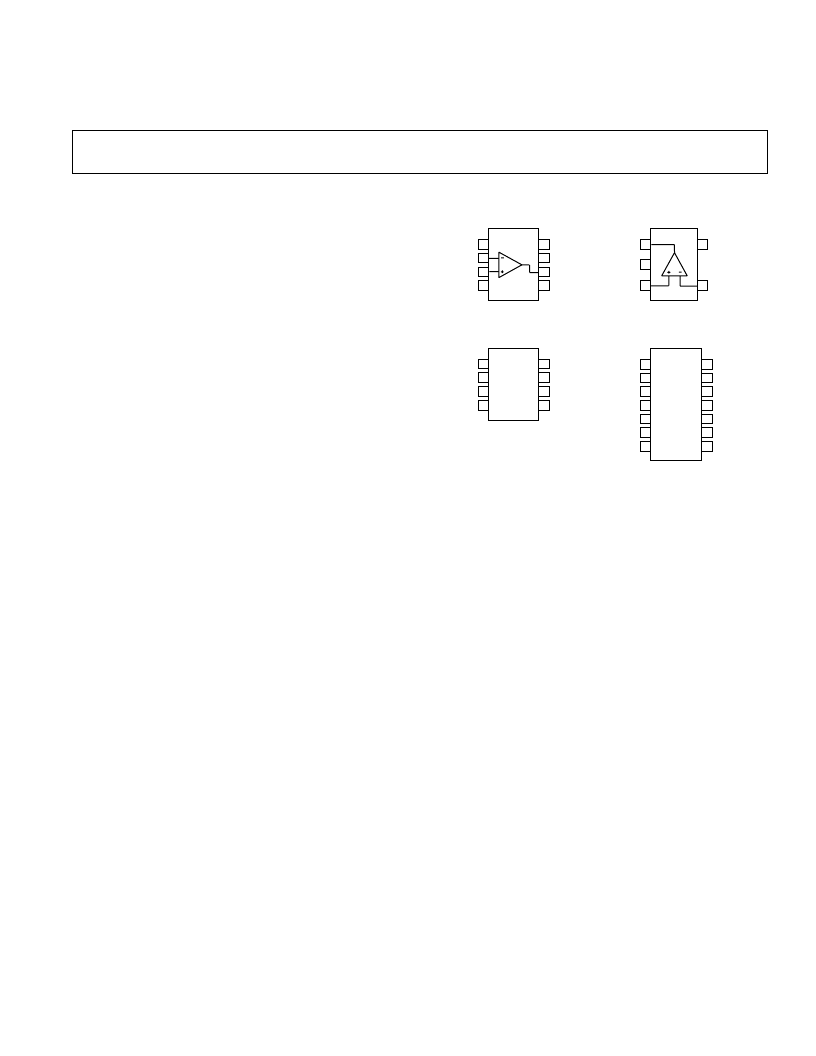

PIN CONFIGURATIONS
FEATURES
Single Supply Operation: +2.7 V to +5.5 V
Low Supply Current: 45 A/Amplifier
Wide Bandwidth: 1 MHz
No Phase Reversal
Low Input Currents: 4 pA
Unity Gain Stable
Rail-to-Rail Input and Output
APPLICATIONS
ASIC Input or Output Amplifier
Sensor Interface
Piezo Electric Transducer Amplifier
Medical Instrumentation
Mobile Communication
Audio Output
Portable Systems
GENERAL DESCRIPTION
The AD8541/AD8542/AD8544 are single, dual and quad rail-
to-rail input and output single supply amplifiers featuring very
low supply current and 1 MHz bandwidth. All are guaranteed to
operate from a +2.7 V single supply as well as a +5 V supply.
These parts provide 1 MHz bandwidth at low current consump-
tion of 45
μ
A per amplifier.
Very low input bias currents enable the AD8541/AD8542/AD8544
to be used for integrators, photodiode amplifiers, piezo electric
sensors and other applications with high source impedance. Supply
current is only 45
μ
A per amplifier, ideal for battery operation.
Rail-to-rail inputs and outputs are useful to designers buffering
ASICs in single supply systems. The AD8541/AD8542/AD8544
are optimized to maintain high gains at lower supply voltages,
making them useful for active filters and gain stages.
The AD8541/AD8542/AD8544 are specified over the extended
industrial (–40
°
C to +125
°
C) temperature range. The AD8541
is available in 8-lead SO and 5-lead SOT-23 packages. The
AD8542 is available in 8-lead SO, 8-lead MSOP, and 8-lead
TSSOP surface mount packages. The AD8544 is available in
14-lead narrow SO-14 and 14-lead TSSOP surface mount pack-
ages. All TSSOP, MSOP, and SOT versions are available in tape
and reel only.
SO-8 (R)
SOT-23-5 (RT)
SO-8 (R), RM-8, and RU-8
SO-14 (R) and RU-14
