| 型號： | AD8565 |
| 廠商： | Analog Devices, Inc. |
| 英文描述： | 16 V Rail-to-Rail Operational Amplifiers |
| 中文描述： | 16 V的軌到軌運算放大器 |
| 文件頁數： | 1/12頁 |
| 文件大?。?/td> | 152K |
| 代理商： | AD8565 |
REV. A
Information furnished by Analog Devices is believed to be accurate and
reliable. However, no responsibility is assumed by Analog Devices for its
use, nor for any infringements of patents or other rights of third parties
that may result from its use. No license is granted by implication or
otherwise under any patent or patent rights of Analog Devices.
a
AD8565/AD8566/AD8567
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781/329-4700
Fax: 781/326-8703
www.analog.com
Analog Devices, Inc., 2001
16 V Rail-to-Rail
Operational Amplifiers

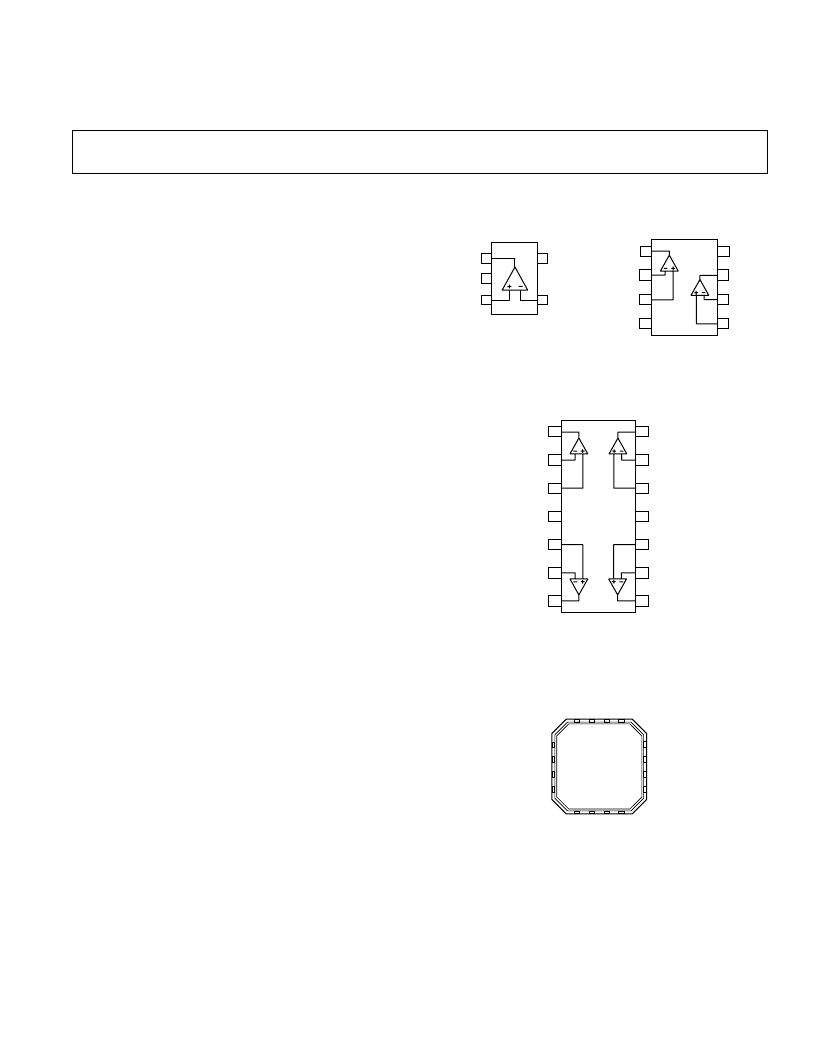

PIN CONFIGURATIONS
FEATURES
Single-Supply Operation: 4.5 V to 16 V
Input Capability Beyond the Rails
Rail-to-Rail Output Swing
Continuous Output Current: 35 mA
Peak Output Current: 250 mA
Offset Voltage: 10 mV
Slew Rate: 6 V/ s
Unity Gain Stable with Large Capacitive Loads
Supply Current: 700 A per Amplifier
APPLICATIONS
LCD Reference Drivers
Portable Electronics
Communications Equipment
GENERAL DESCRIPTION
The AD8565, AD8566, and AD8567 are low-cost single supply
rail-to-rail input and output operational amplifiers optimized for
LCD monitor applications. They are built on an advanced high-
voltage CBCMOS process. The AD8565 contains a single
amplifier, the AD8566 has two amplifiers, and the AD8567 has
four amplifiers.
These LCD op amps have high slew rates, 35 mA continuous
output drive, 250 mA peak output drive, and high capacitive load
drive capability. They have wide supply range and offset voltages
below 10 mV. The AD8565, AD8566, and AD8567 are ideal for
LCD grayscale reference buffer and V
COM
applications.
The AD8565, AD8566, and AD8567 are specified over the
–
40
°
C
to +85
°
C temperature range. The AD8565 single is available in a
5-lead SC70 package. The AD8566 dual is available in an 8-lead
MSOP package. The AD8567 quad is available in a 14-lead
TSSOP package and a 16-lead lead frame Chip Scale Package.
5-Lead SC70
(KS Suffix)
1
2
3
5
4 –IN
+IN
V–
OUT
AD8565
V+
14-Lead TSSOP
(RU Suffix)
OUT B
+IN B
–
IN B
V+
–
IN A
+IN A
OUT A
7
8
5
10
6
9
4
11
2
13
3
12
1
14
OUT C
+IN C
–
IN C
V
–
–
IN D
+IN D
OUT D
AD8567
16-Lead CSP
(CP Suffix)
TOP VIEW
16
5
13
8
9
12
1
4
14
15
2
3
7
6
11
10
–
IN D
+IN D
V
–
+IN C
–
IN A
+IN A
V+
+IN B
N
O
O
N
–
I
O
O
–
I
AD8567
NC = NO CONNECT
8-Lead MSOP
(RM Suffix)
4
5
2
7
3
6
1
8
OUT A
–
IN A
+IN A
V
–
V+
OUT B
–
IN B
+IN B
AD8566
