a
Octal, RS-232/RS-423 Line Driver
T ruth T able
Inputs
E N
Outputs
E IA RS-232E
1
Data
RS-423A
0
0
1
0
1
X
(V
DD
– 3 V)
(V
– 3 V)
High Z
5 V to 6 V
–5 V to –6 V
High Z
1
Minimum Output Level
FEATURES
Eight Single Ended Line Drivers in One Package
Meets EIA Standard RS-232E, RS-423A and
CCITT V.10/X.26
Resistor Programmable Slew Rate
Wide Supply Voltage Range
Low Power CMOS
3-State Outputs
TTL/CMOS Compatible Inputs
Output Short Circuit Protection
Available in 28-Pin DIP/PLCC
Low Power Replacement for UC5170C
APPLICATIONS
High Speed Communication
Computer I-O Ports Peripherals
High Speed Modems
Printers
Logic Level Translation

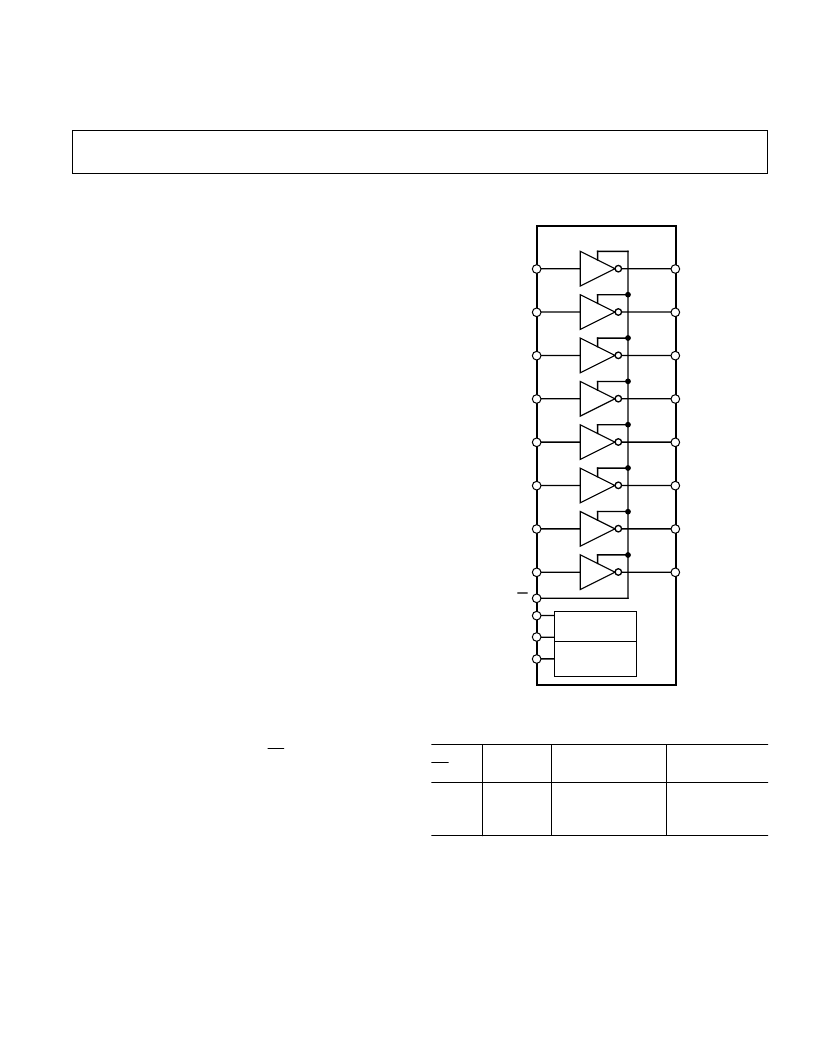

FUNCT IONAL BLOCK DIAGRAM
A
B
C
D
E
F
G
H
A
I
B
I
C
I
D
I
E
I
F
I
G
I
H
I
RS-232/RS-423
MODE SELECT
A
O
B
O
C
O
D
O
E
O
F
O
G
O
H
O
ADM5170
SLEW RATE
CONTROL
EN
MS+
MS–
SRA
GE NE RAL DE SCRIPT ION
T he ADM5170 is an octal line driver suitable for digital communi-
cation systems with data rates up to 116 kB/s. Input T T L or
CMOS signal levels are inverted and translated into either EIA
RS-232E or RS-423A signal levels depending on the status of the
Mode Select inputs MS+ and MS–. With both Mode Select inputs
at GND, RS-423 operation is selected while with MS+ connected
to V
DD
and MS– connected to V
SS
, RS-232 operation is selected.
T he output slew rates may be controlled using an external resistor
connected between the SRA (Slew Rate Adjust) pin and GND.
Resistor values between 2 k
and 10 k
may be selected giving a
slew rate which can be adjusted from 10 V/
μ
s to 2.2 V/
μ
s. T his
adjustment of the slew rate allows tailoring of the output character-
istics to suit the interface cable being used.
T he outputs may be disabled using the EN (Enable Input). T his
feature permits sharing of a common output line.
T he ADM5170 is fabricated on an advanced CMOS process
featuring low power consumption. In the disabled state the power
consumption reduces from 500 mW to 40 mW. T he ADM5170 is
available in both 28-pin DIP and 28-lead PLCC packages.
