1.2 MHz DC-DC Step-Up Switching Converter
ADP1610
FEATURES
Fully integrated 1.2 A , 0.2 , power switch
Pin-selectable 700 kHz or 1.2 MHz PWM frequency
92% efficiency
Adjustable output voltage up to 12 V
3% output regulation accuracy
Adjustable soft start
Input undervoltage lockout
MSOP 8-lead package
APPLICATIONS
TFT LC bias supplies
Portable applications
Industrial/instrumentation equipment
Rev.
0
Information furnished by Analog Devices is believed to be accurate and reliable.
However, no responsibility is assumed by Analog Devices for its use, nor for any
infringements of patents or other rights of third parties that may result from its use.
Specifications subject to change without notice. No license is granted by implication
or otherwise under any patent or patent rights of Analog Devices. Trademarks and
registered trademarks are the property of their respective owners.
Tel: 781.329.4700Fax: 781.326.8703
GENERAL DESCRIPTION The ADP1610 is a dc-to-dc step-up switching converter with an
integrated 1.2 A, 0.2 power switch capable of providing an
output voltage as high as 12 V. With a package height of less that
1.1 mm, the ADP1610 is optimal for space-constrained
applications such as portable devices or thin film transistor
(TFT) liquid crystal displays (LCDs).
The ADP1610 operates in pulse-width modulation (PWM)
current mode with up to 92% efficiency. Adjustable soft start
prevents inrush currents at startup. The pin-selectable switching
frequency and PWM current-mode architecture allow excellent
transient response, easy noise filtering, and the use of small,
cost-saving external inductors and capacitors.
The ADP1610 is offered in the Pb-free 8-lead MSOP and
operates over the temperature range of 40°C to +85°C.

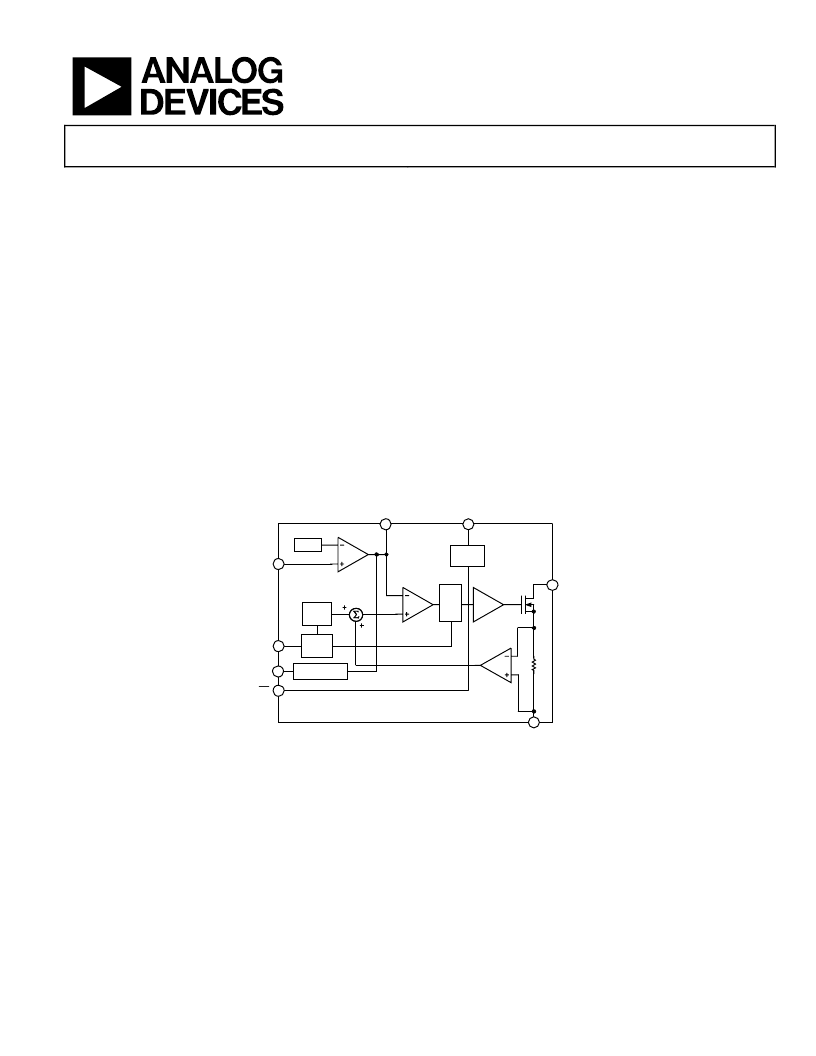

FUNCTIONAL BLOCK DIAGRAM
REF
RAMP
GEN
RT
DRIVER
CURRENT
SENSE
AMPLIFIER
COMP
1
SW
FB
IN
6
COMPARATOR
ERROR
AMP
g
m
GND
BIAS
SD
OSC
ADP1610
Q
S
R
F/F
2
7
3
5
4
0
8
SOFT START
SS
Figure 1.
