參數資料
| 型號： | AP9561GP-HF |
| 廠商： | ADVANCED POWER ELECTRONICS CORP |
| 元件分類： | JFETs |
| 英文描述： | 45 A, 40 V, 0.016 ohm, P-CHANNEL, Si, POWER, MOSFET, TO-220AB |
| 封裝： | HALOGEN FREE AND ROHS COMPLIANT, TO-220, 3 PIN |
| 文件頁數： | 1/4頁 |
| 文件大小： | 93K |
| 代理商： | AP9561GP-HF |

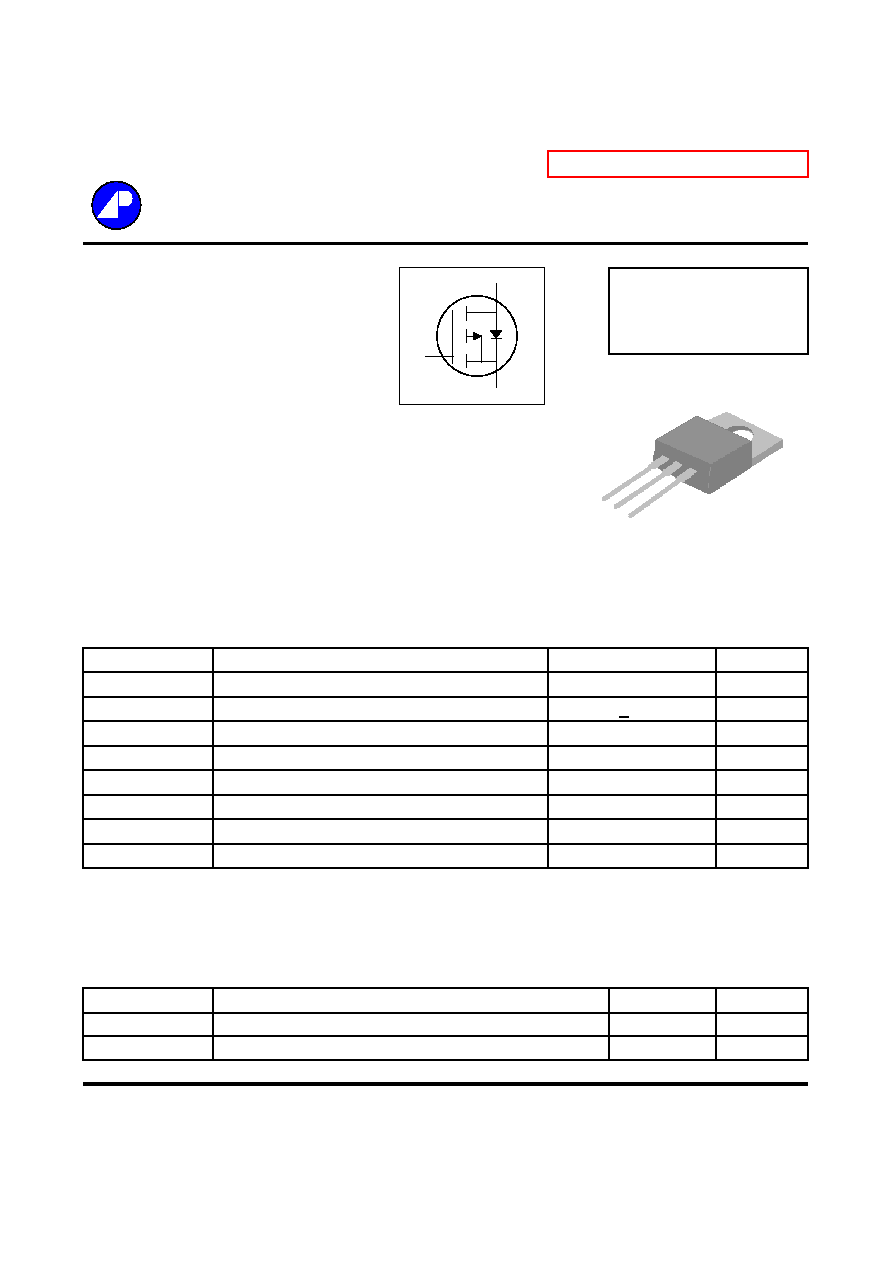

Advanced Power
P-CHANNEL ENHANCEMENT MODE
Electronics Corp.
POWER MOSFET
▼ Lower On-resistance
BVDSS
-40V
▼ Simple Drive Requirement
RDS(ON)
16mΩ
▼ Fast Switching Characteristic
ID
-45A
▼ RoHS Compliant
Description
Absolute Maximum Ratings
Symbol
Units
VDS
V
VGS
V
ID@TC=25℃
A
ID@TC=100℃
A
IDM
A
PD@TC=25℃
W
TSTG
℃
TJ
℃
Symbol
Value
Units
Rthj-c
Maximum Thermal Resistance, Junction-case
2.3
℃
/W
Rthj-a
Maximum Thermal Resistance, Junction-ambient
62
℃
/W
Data and specifications subject to change without notice
200904271
1
AP9561GP-HF
Rating
-40
+20
-45
Halogen-Free Product
Continuous Drain Current, VGS @ 10V
-29
Parameter
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current, VGS @ 10V
Parameter
Total Power Dissipation
Operating Junction Temperature Range
Storage Temperature Range
-55 to 150
Pulsed Drain Current
1
-180
Thermal Data
-55 to 150
54.3
G
D
S
Advanced Power MOSFETs from APEC provide the
designer with the best combination of fast switching,
ruggedized device design, low on-resistance and cost-effectiveness.
The TO-220 package is widely preferred for commercial-industrial
power applications and suited for low voltage applications such as
DC/DC converters.
G
D
S
TO-220(P)
