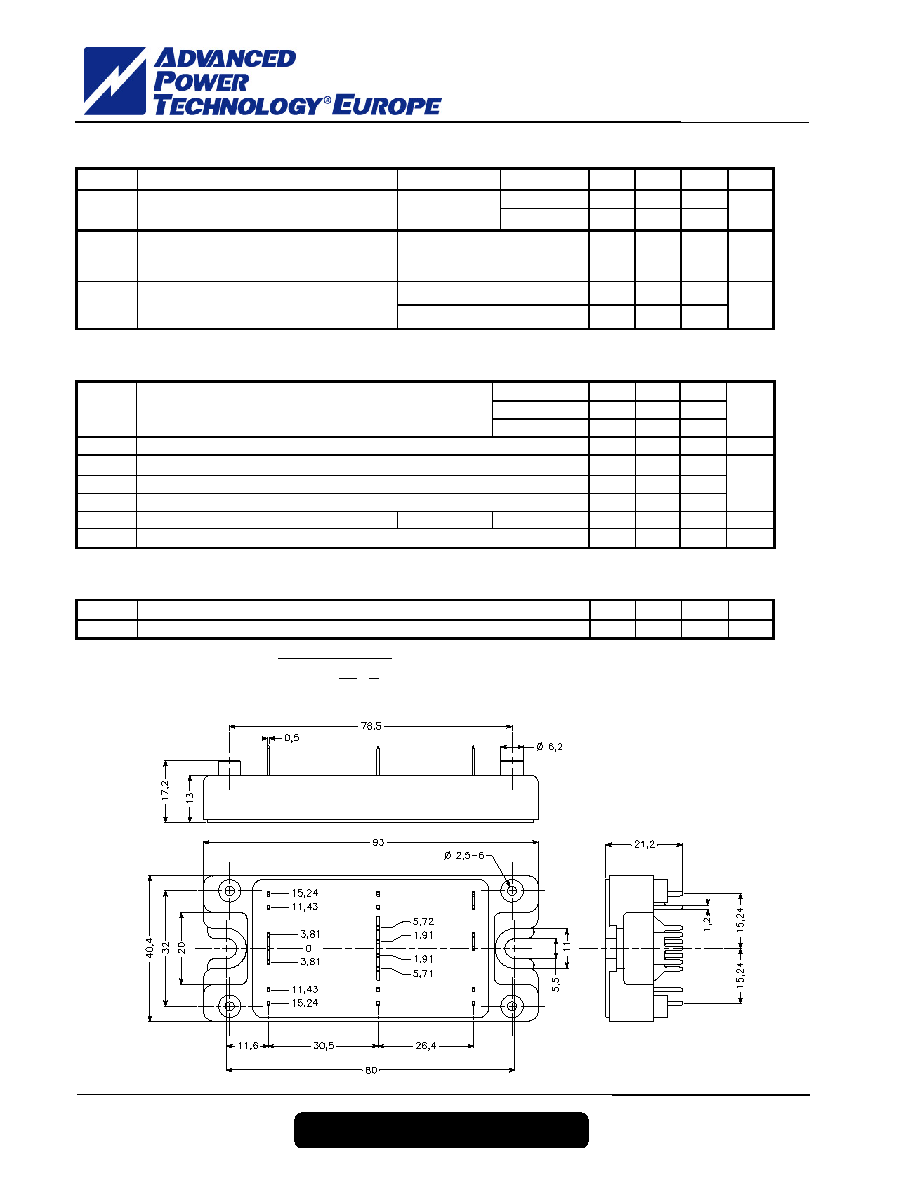

APTC80H29SCT
A
PT
C
80H
29S
C
T
–
R
ev
1
M
ay,
2004
APT website – http://www.advancedpower.com
3 – 7
Parallel diode ratings and characteristics
Symbol Characteristic
Test Conditions
Min
Typ
Max
Unit
IF(AV)
Maximum Average Forward Current
50% duty cycle
Tc = 125°C
5
A
Tj = 25°C
1.6
1.8
VF
Diode Forward Voltage
IF = 5A
Tj = 175°C
2.6
3.0
V
QC
Total Capacitive Charge
IF = 5A, VR = 600V
di/dt =500A/s
14
nC
f = 1MHz, VR = 200V
45
Q
Total Capacitance
f = 1MHz, VR = 400V
33
pF
Thermal and package characteristics
Symbol Characteristic
Min
Typ
Max
Unit
Transistor
0.8
Series diode
1.2
RthJC
Junction to Case
Parallel diode
2.5
°C/W
VISOL
RMS Isolation Voltage, any terminal to case t =1 min, I isol<1mA, 50/60Hz
2500
V
TJ
Operating junction temperature range
-40
150
TSTG
Storage Temperature Range
-40
125
TC
Operating Case Temperature
-40
100
°C
Torque Mounting torque
To Heatsink
M5
4.7
N.m
Wt
Package Weight
160
g
Temperature sensor NTC
Symbol Characteristic
Min
Typ
Max
Unit
R25
Resistance @ 25°C
68
k
W
B 25/85
T25 = 298.16 K
4080
K
ú
ù
ê
é
÷÷
è
-
=
T
B
R
T
1
exp
25
85
/
25
Package outline
T: Thermistor temperature
RT: Thermistor value at T
