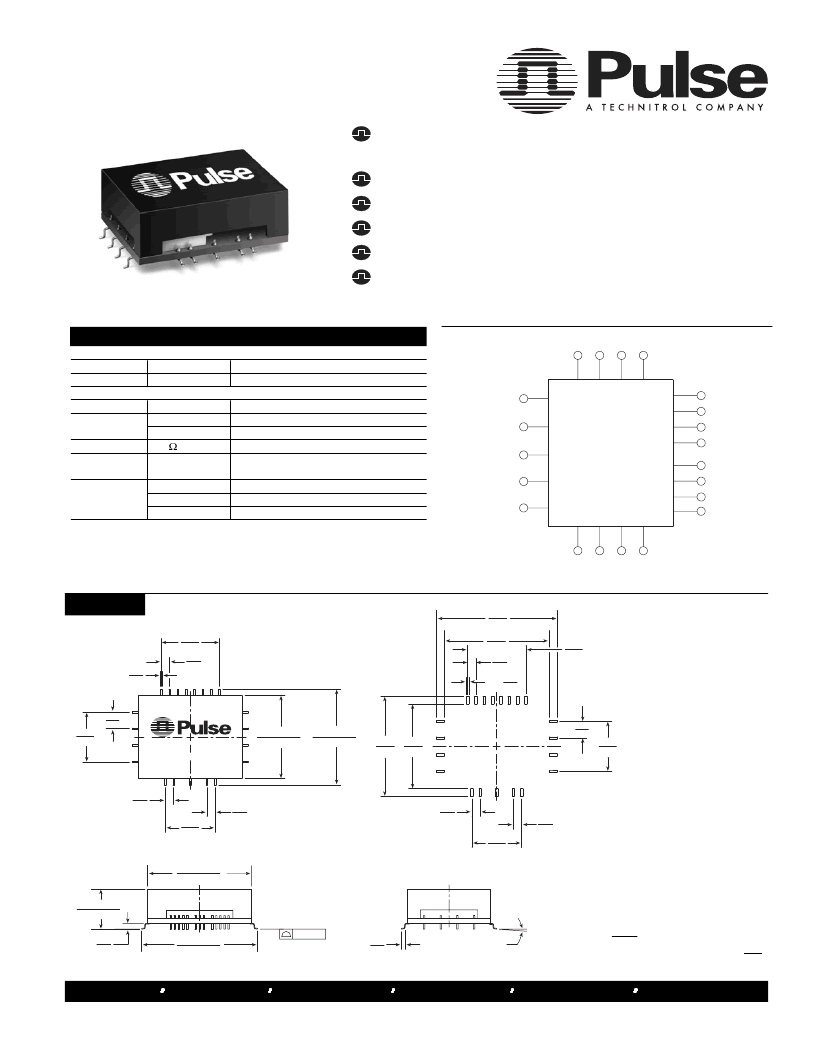

PRELIMINARY C204.P (4/01)
U.S: 858 674 8100
·
U.K: 44 1483 401 700
·
France: 33 3 84 35 04 04
·
Singapore: 65 287 8998
·
Taiwan: 886 2 2698 0228
·
http://www.pulseeng.com
DIPLEXERS FOR HFC EQUIPMENT
AND CABLE MODEMS
Mechanical
Ideal for HFC equipment, cable modem and
set top box equipment
Improved performance
Small surface mount component
42/52 MHz frequency splits
5 - 870 MHz range
High crossover isolation
RF IN
1
GND
20
GND
21
GND
2
GND
3
GND GND GND GND
GND GND GND GND
19
18
17
16
4
5
6
7
8
9
10
11
12
13
14
15
GND
LOW SPLIT
GND
GND
GND
GND
GND
HIGH SPLIT
Weight
. . . . . . . . . . . . . .8.5 grams
Tray
. . . . . . . . . . . . . . . . . .56/tray
Dimensions:
Inches
Unless otherwismm
C6001
Block Diagram
L
OW
P
ASS
F
ILTER
Passband
Return Loss
H
IGH
P
ASS
F
ILTER
Passband
5 - 42 MHz
5 - 42 MHz
Insertion loss <1.0 dB
20 dB or better
52 - 870 MHz
52 - 750 MHz
751 - 870 MHz
75
W
Insertion loss <1.0 dB
20 dB MIN
18 dB MIN
All ports
Return Loss
Impedance
Crossover
Isolation
42 - 52 MHz
31 dB MIN
Floor
Isolation
5 - 42 MHz
52 - 600 MHz
600 - 870 MHz
45 dB MIN
43 dB MIN
40 dB MIN
C6001 — Electrical Specifications @ 25°C
