1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 1-888-468-3774
Intersil (and design) is a registered trademark of Intersil Americas Inc.
Copyright Intersil Americas Inc. 1998, 2005, 2006. All Rights Reserved
All other trademarks mentioned are the property of their respective owners.
CA3083
General Purpose High Current NPN
Transistor Array
The CA3083 is a versatile array of five high current (to
100mA) NPN transistors on a common monolithic substrate.
In addition, two of these transistors (Q
1
and Q
2
) are
matched at low current (i.e., 1mA) for applications in which
offset parameters are of special importance.
Independent connections for each transistor plus a separate
terminal for the substrate permit maximum flexibility in circuit
design
.
Features
High I
C
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100mA (Max)
Low V
CE sat
(at 50mA). . . . . . . . . . . . . . . . . . . 0.7V (Max)
Matched Pair (Q
1
and Q
2
)
- V
IO
(V
BE
Match). . . . . . . . . . . . . . . . . . . . .
±
5mV (Max)
- I
IO
(at 1mA) . . . . . . . . . . . . . . . . . . . . . . . . 2.5
μ
A (Max)
5 Independent Transistors Plus Separate Substrate
Connection
Pb-Free Plus Anneal Available (RoHS Compliant)
Applications
Signal Processing and Switching Systems Operating from
DC to VHF
Lamp and Relay Driver
Differential Amplifier
Temperature Compensated Amplifier
Thyristor Firing
See Application Note AN5296 “Applications of the
CA3018 Circuit Transistor Array” for Suggested
Applications

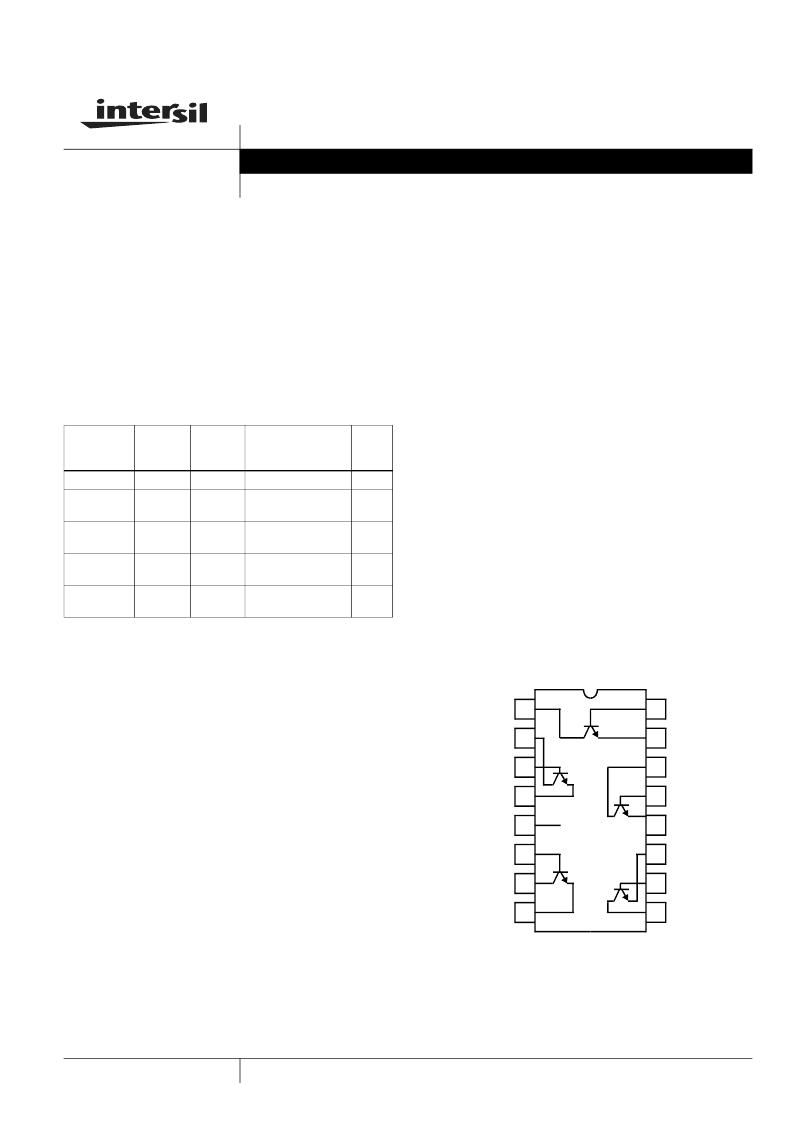

Pinout
CA3083
(PDIP, SOIC)
TOP VIEW
Ordering Information
PART
NUMBER
PART
MARKING
TEMP.
RANGE
(°C)
PACKAGE
PKG.
DWG. #
CA3083
CA3083
-55 to 125 16 Ld PDIP
E16.3
CA3083Z
(Note)
CA3083Z
-55 to 125 16 Ld PDIP* (Pb-free) E16.3
CA3083M96
3083
-55 to 125 16 Ld SOIC
Tape and Reel
M16.15
CA3083MZ
(Note)
3083MZ
-55 to 125 16 Ld SOIC (Pb-Free) M16.15
CA3083MZ96
(Note)
3083MZ
-55 to 125 16 Ld SOIC (Pb-Free)
Tape and Reel
M16.15
*Pb-free PDIPs can be used for through hole wave solder processing
only. They are not intended for use in Reflow solder processing
applications.
NOTE: Intersil Pb-free plus anneal products employ special Pb-free
material sets; molding compounds/die attach materials and 100% matte
tin plate termination finish, which are RoHS compliant and compatible
with both SnPb and Pb-free soldering operations. Intersil Pb-free
products are MSL classified at Pb-free peak reflow temperatures that
meet or exceed the Pb-free requirements of IPC/JEDEC J STD-020.
14
15
16
9
13
12
11
10
1
2
3
4
5
7
6
8
SUBSTRATE
Q
1
Q
2
Q
3
Q
4
Q
5
Data Sheet
February 7, 2006
FN481.6
