CAT705, CAT706, CAT813
http://onsemi.com
9
APPLICATION NOTES
mP’s with Bidirectional Reset Pins
The RESET output can be pulled low by processors like
the 68HC11 allowing for a system reset issued by the
processor. The maximum pullup current that can be sourced
by the CAT705 & CAT706 1.5 mA (and by the CAT706
T/R/S is 800
mA) allowing the processor to pull the output
low even when the CAT70x is pulling it high.
Power Transients
Generally short duration negativegoing transients of less
than 2
ms on the power supply at VRST minimum will not
cause a reset condition. However the lower the voltage of the
transient the shorter the required time to cause a reset output.
These issues can usually be remedied by the proper location
of bypass capacitance on the circuit board.
Output Valid Conditions
The RESET output uses a pushpull output which can
maintain a valid output down to a VCC of 1.0 volts. To sink
current below 0.8 V a resistor can be connected from
RESET to Ground (see Figure 11.) This arrangement will
maintain a valid value on the RESET output during both
power up and down but will draw current when the RESET
output is in the high state. A resistor value of about 100 k
W
should be adequate in most situations to maintain a low
condition valid output down to VCC equal to 1.0 V.
mC
WDI
GND
PFI
CAT705
CAT706
CAT813
100 kW

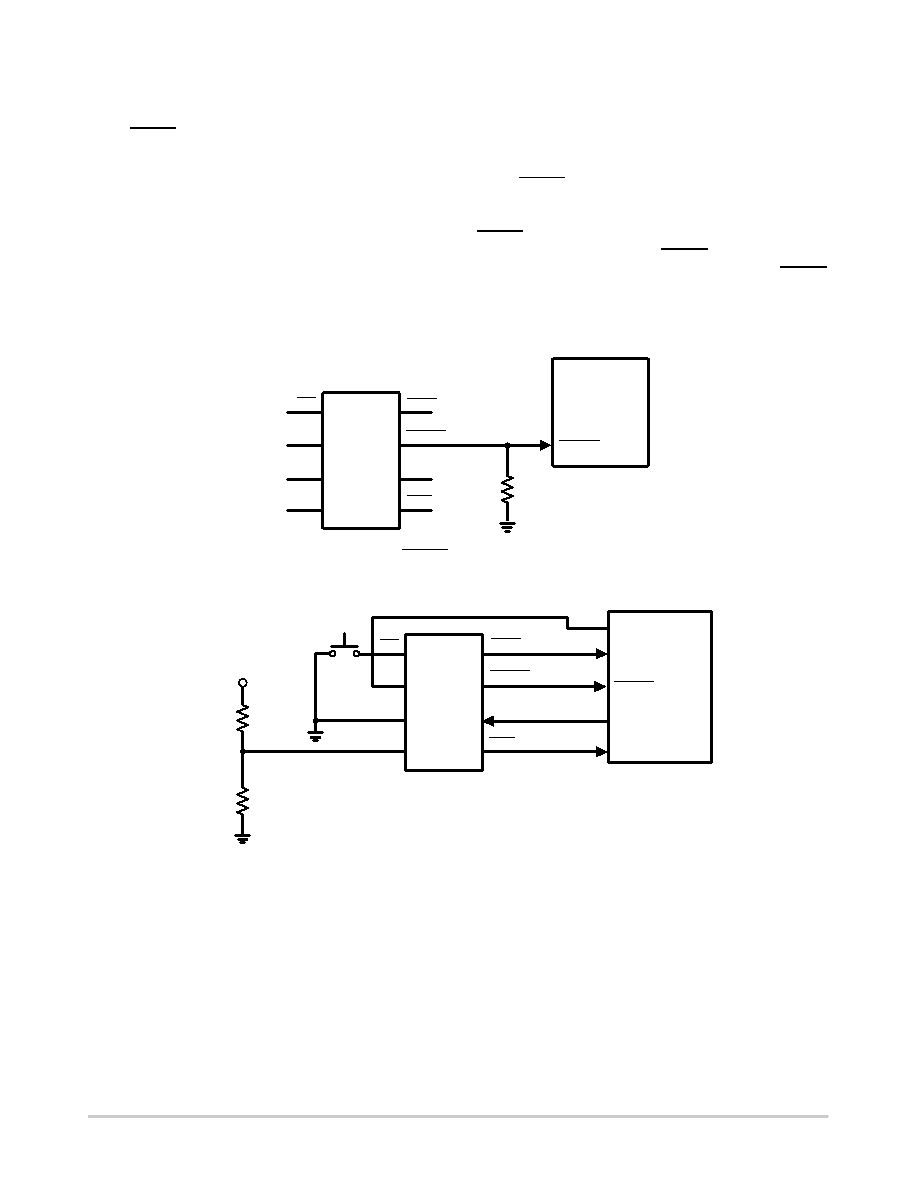

Figure 11. RESET Valid for VCC < 1.0 V
RESET/RESET
PFO
WDO
VCC
MR
mC
I/O LINE
INTERRUPT
NMI
VCC
Push Switch
5 V
WDI
GND
PFI
CAT705
CAT706
CAT813
UNREGULATED DC
Figure 12. Typical Operating Circuit
VCC
MR
PFO
WDO
RESET/RESET
