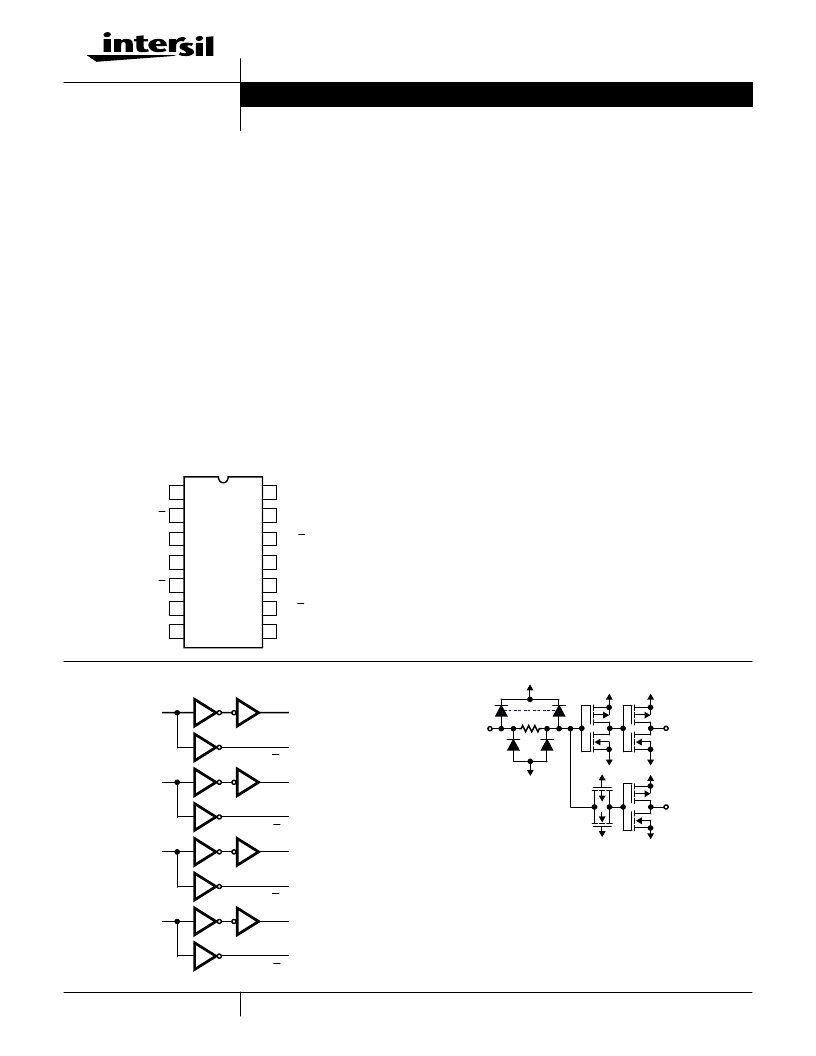

1
CD4041UBMS
CMOS Quad True/Complement Buffer
CD4041UBMS types are quad true/complement buffers con-
sisting of n- and p- channel units having low channel resis-
tance and high current (sourcing and sinking) capability. The
CD4041UBMS is intended for use as a buffer, line driver, or
CMOS-to-TTL driver. It can be used as an ultra-low power
resistor-network driver for A/D and D/A conversion, as a
transmission-line driver, and in other applications where high
noise immunity and low power dissipation are primary
design requirements.
The CD4041UBMS is supplied in these 14 lead outline pack-
ages:
Pinout
CD4041UBMS
TOP VIEW
Features
High Voltage Type (20V Rating)
Balanced Sink and Source Current; Approximately 4
Times Standard “B” Drive
Equalized Delay to True and Complement Outputs
100% Tested for Quiescent Current at 20V
Maximum Input Current of 1
μ
A at 18V Over Full
Package-Temperature Range;
- 100nA at 18V and +25
o
C
5V, 10V and 15V Parametric Ratings
Meets All Requirements of JEDEC Tentative Standard
No. 13B, “Standard Specificationsfor Description of
‘B’ Series CMOS Devices”
Applications
High Current Source/Sink Driver
CMOS-to-DTL/TTL Converter Buffer
Display Driver
MOS Clock Driver
Resistor Network Driver (Ladder or Weighted R)
Buffer
Transmission Line Driver
Functional Diagram
FIGURE 1. SCHEMATIC DIAGRAM 1 OF 4 BUFFERS
Braze Seal DIP
Frit Seal DIP
Ceramic Flatpack
H4Q
H1B
H3W
E = A
F = A
A
G = B
H = B
B
VSS
VDD
D
N = D
M = D
C
L = C
K = C
1
2
3
4
5
6
7
14
13
12
11
10
9
8
A
3
1
E
F = A
E = A
2
F
B
6
4
G
H = B
G = B
5
H
C
10
8
K
L = C
K = C
9
L
D
13
11
M
N = D
M = D
12
N
VSS = 7
VDD = 14
VDD
VSS
VDD
VDD
VSS
VSS
VSS
VDD
VSS
VDD
COMPLEMENT
OUTPUT
TRUE
OUTPUT
INPUT
*
*
ALL INPUTS PROTECTED
BY CMOS INPUT
PROTECTION NETWORK
P
N
Data Sheet
December 1992
File Number
3309
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 321-724-7143 | Copyright Intersil Corporation 1999
