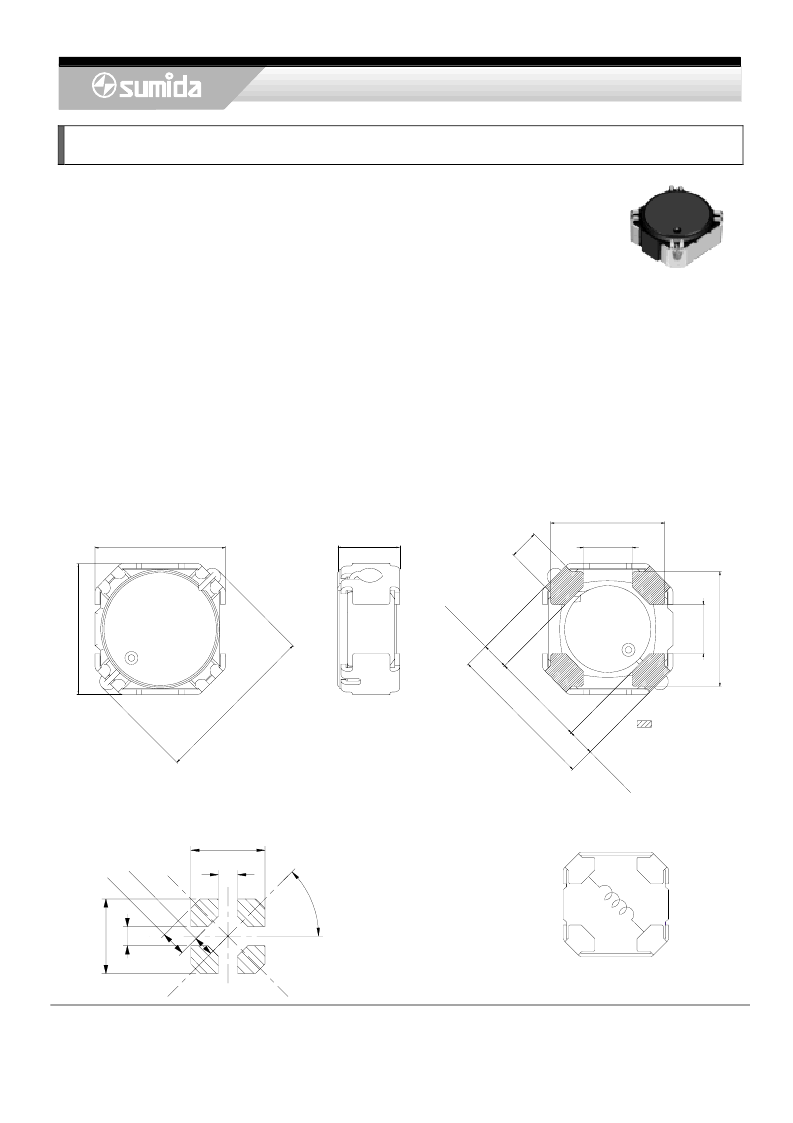

Type: CDCH8D38/A
◆
Product Description
8.5
×
8.5mm Max.(L
×
W), 4.0mm Max. Height.
Please refer to the sales offices on our website for a representative near you
www.sumida.com
1/2
POWER INDUCTORS <SMD Type: CDCH**/A
4.0 Max.(3.8 Typ.)
12.02 Max.
◆
Land Pattern (mm)
8
8.0±0.5
(5.8)
1.65±0.3
：
Electrode
1.8±0.3
1.65±0.3
7.0±0.5
3.0±0.5
3
7
9.1±0.5
4°
8.9
2.3
3.0
2.5
2
8
Inductance Range: 10
～
120
μ
H
Rated current range:0.42
～
1.67A(at 125
℃
)
In addition to the standard versions of inductors shown here, custom inductors are
available to meet your exact requirements.
◆
Feature
Magnetically unshielded construction.
High reliable inductors, suitable to use in high temperature environment(125
℃
)
Ideally for automotive applications as DC-DC converter inductors.
RoHS Compliance
◆
Dimensions (mm)
◆
Schematics (Bottom)
