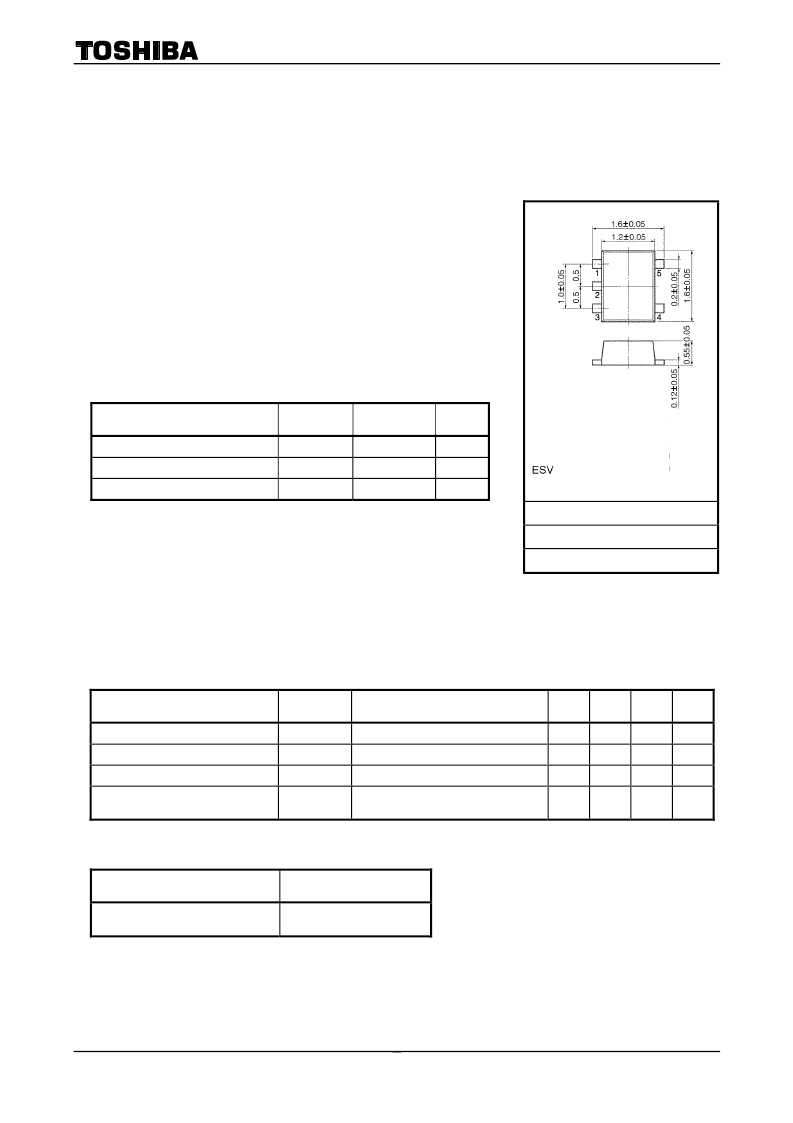

DF5A3.6CJE
2007-11-01
1
TOSHIBA Diodes for Protecting against ESD Epitaxial Planar Type
DF5A3.6CJE
Product for Use Only as Protection against Electrostatic
Discharge (ESD)
*
This product is for protection against electrostatic discharge (ESD) only
and is not intended for any other usage, including without limitation,
the constant voltage diode application.
z
The mounting of four devices on an ultra-compact package allows the
number of parts and the mounting cost to be reduced.
z
Low terminal capacitance : C
T
=52 pF (typ.)
Absolute Maximum Ratings
(Ta = 25°C)
Characteristic
Symbol
Rating
Unit
Power dissipation
P
100
mW
Junction temperature
T
j
150
°
C
Storage temperature range
T
stg
55~150
°
C
Note: Using continuously under heavy loads (e.g. the application of high
temperature/current/voltage and the significant change in
temperature, etc.) may cause this product to decrease in the
reliability significantly even if the operating conditions (i.e.
operating temperature/current/voltage, etc.) are within the absolute
maximum ratings.
Please design the appropriate reliability upon reviewing the
Toshiba Semiconductor Reliability Handbook (“Handling Precautions”/“Derating Concept and Methods”) and
individual reliability data (i.e. reliability test report and estimated failure rate, etc).
Electrical Characteristics
(Ta = 25°C)
Characteristic
Symbol
Test Condition
Min
Typ.
Max
Unit
Zener voltage
V
Z
I
Z
= 5 mA
3.4
3.6
3.8
V
Dynamic impedance
Z
Z
I
Z
= 5 mA
―
―
130
Ω
Reverse current
I
R
V
R
= 1.8 V
―
―
100
μ
A
Terminal capacitance
(between Cathode and Anode)
C
T
V
R
= 0 V, f = 1 MHz
52
pF
Guaranteed Level of ESD Immunity
Test Condition
ESD Immunity Level
IEC61000-4-2
(Contact discharge)
±
15 kV
Criterion: No damage to device elements
Unit: mm
1.CATHODE 1
2. ANODE
3.CATHODE2
4.CATHODE3
5.CATHODE4
JEDEC
JEITA
TOSHIBA
1-2W1A
Weight: 0.0062 g (typ.)
