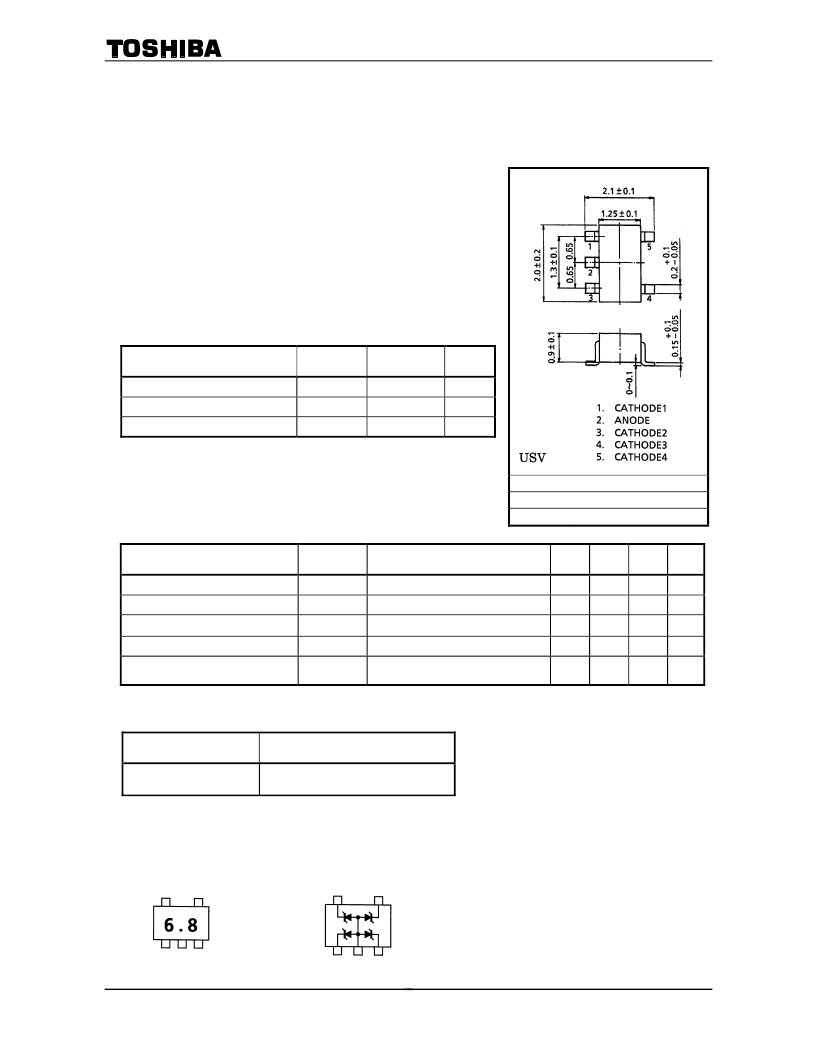

DF5A6.8FU
2004-11-08
1
TOSHIBA Diodes for Protecting against ESD Epitaxial Planar Type
DF5A6.8FU
Diodes for Protecting against ESD
z
The mounting of two devices on an ultra-compact package allows the
number of parts and the mounting cost to be reduced.
z
The zener voltage corresponds to the E24 Series.
Maximum Ratings
(Ta = 25°C)
Characteristic
Symbol
Rating
Unit
Power dissipation
P
200
mW
Junction temperature
T
j
125
°C
Storage temperature range
T
stg
55~125
°C
Electrical Characteristics
(Ta = 25°C)
Characteristic
Symbol
Test Condition
Min
Typ.
Max
Unit
Zener voltage
V
Z
I
Z
= 5 mA
6.4
6.8
7.2
V
Dynamic impedance
Z
Z
I
Z
= 5 mA
―
10
25
Knee dynamic impedance
Z
ZK
I
Z
= 0.5 mA
―
30
―
Reverse current
I
R
V
R
= 5 V
―
―
0.5
μA
Terminal capacitance
(between Cathode and Anode)
C
T
V
R
= 0, f = 1 MHz
―
45
―
pF
Guaranteed Level of ESD Immunity
Criterion: No damage to device elements
Marking
Equivalent Circuit
(Top View)
JEDEC
JEITA
TOSHIBA
Weight: 0.0062 g (typ.)
―
―
1-2V1B
Test Condition
ESD Immunity Level
IEC61000-4-2
(Contact discharge)
±30kV
Unit: mm
