www.fairchildsemi.com
REV. 1.1.0 3/27/03
Pentium is a registered trademark of Intel Corporation. Athlon is a registered trademark of AMD. Programmable Active Droop is a trademark of Fairchild Semiconductor.

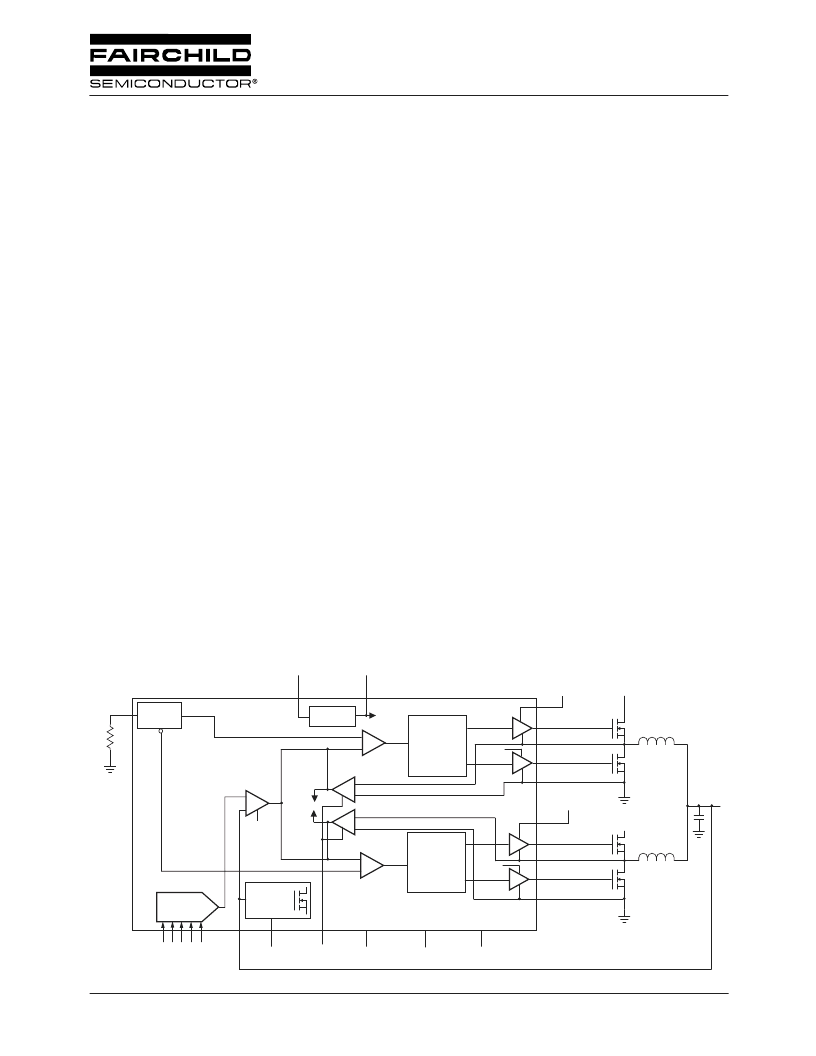

Block Diagram
22
VID0
11
10
14
13
17
16
24
-
+
OSC
Digital
Control
Power
Good
5-Bit
DAC
VID1
VID2
VID3
VID4
1 2 3 4 5
+12V
PWRGD
-
+
ENABLE/SS
VO
AGND
7
DROOP/E*
18
6
+12V
15
5V Reg
BYPASS
23
R
T
+12V
+12V
12
8
9
21
+12V
Digital
Control
-
+
-
+
-
+
19
ILIM
20
BOOT A
BOOT B
GNDA
Current
Limit
UVLO
FAN5093
Two Phase Interleaved Synchronous Buck Converter
for VRM 9.x Applications
Features
Programmable output from 1.10V to 1.85V in 25mV steps
using an integrated 5-bit DAC
Two interleaved synchronous phases for maximum
performance
100nsec transient response time
Built-in current sharing between phases
Remote sense
Programmable Active Droop
Programmable switching frequency from 100KHz to
1MHz per phase
Adaptive delay gate switching
Integrated high-current gate drivers
Integrated Power Good, OV, UV, Enable/Soft Start
functions
Drives N-channel MOSFETs
Operation optimized for 12V operation
High efficiency mode (E*) at light load
Overcurrent protection using MOSFET sensing
24 pin TSSOP package
(Voltage Positioning)
Applications
Power supply for Pentium
Power supply for Athlon
VRM for Pentium IV processor
Programmable step-down power supply
IV
Description
The FAN5093 is a synchronous two-phase DC-DC controller
IC which provides a highly accurate, programmable output
voltage for VRM 9.x processors. Two interleaved synchro-
nous buck regulator phases with built-in current sharing
operate 180° out of phase to provide the fast transient
response needed to satisfy high current applications while
minimizing external components.
The FAN5093 features Programmable Active Droop
transient response with minimum output capacitance. It has
integrated high-current gate drivers, with adaptive delay gate
switching, eliminating the need for external drive devices.
The FAN5093 uses a 5-bit D/A converter to program the
output voltage from 1.10V to 1.85V in 25mV steps with an
accuracy of 1%. The FAN5093 uses a high level of integra-
tion to deliver load currents in excess of 50A from a 12V
source with minimal external circuitry.
The FAN5093 also offers integrated functions including
Power Good, Output Enable/Soft Start, under-voltage lock-
out, over-voltage protection, and adjustable current limiting
with independent current sense on each phase. It is available
in a 24 pin TSSOP package.
