FAN8006D3
10

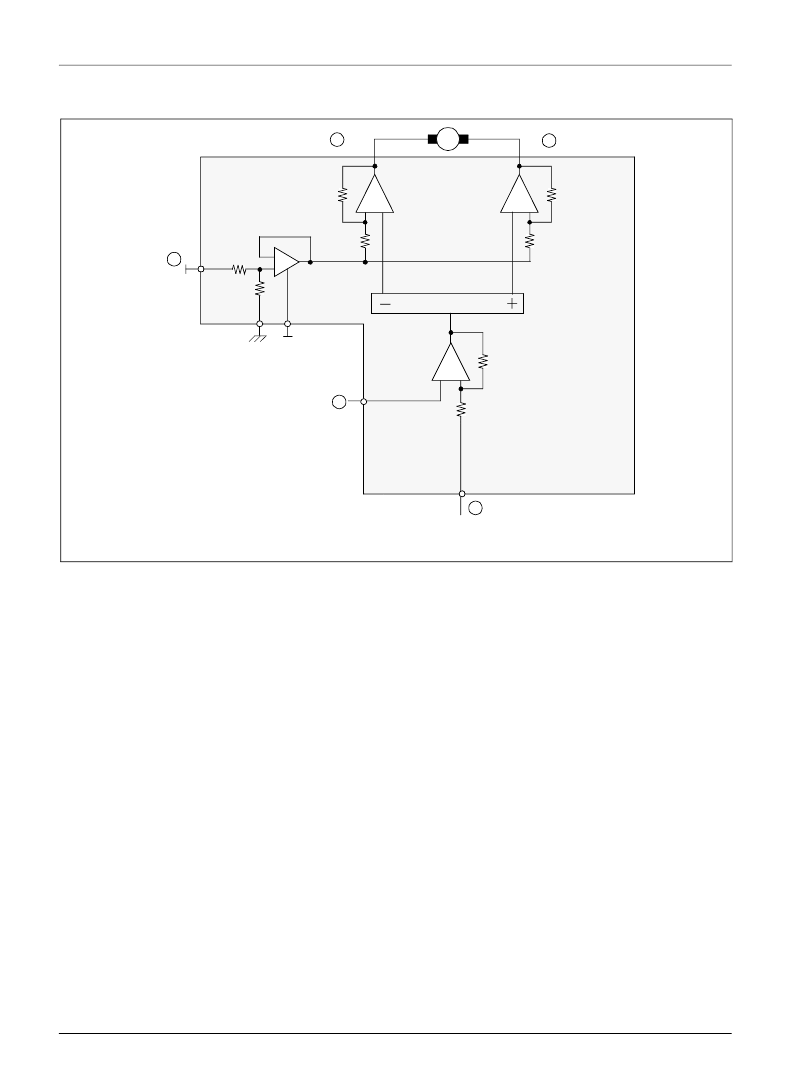

3. CH2 Drive Output Schematic
The reference voltage BIAS is given externally through pin 1.
The input signal is amplified by (20K/10K) times and then fed to the current conveyor type 2 circuit and the power amp
circuit.
The power amp circuit produces the differential output voltages and drives two output power amplifier circuits.
Since the differential gain of the power amplifier is equal to 2
×
(1+10K / 10K) , the output signal of the input OP-amp is
amplified totally 8.
If the total gain is insufficient or large, external resistor can be used to adjust the gain.
+
+
+
M
1
Bias
10K
20K
1
10K
Power amp
5
+
R
R
10K
PowVccCH2
DO+12
11
DO
Current Conveyor Type 2
10
PowVccCH2
1
Inside IC
