參數資料
| 型號： | FAN8420D |
| 廠商： | FAIRCHILD SEMICONDUCTOR CORP |
| 元件分類： | 運動控制電子 |
| 英文描述： | 3-Phase BLDC Motor Driver(三相無刷直流電機驅動器) |
| 中文描述： | BRUSHLESS DC MOTOR CONTROLLER, PDSO28 |
| 封裝： | 0.375 INCH, HEAT SINK, SSOP-28 |
| 文件頁數： | 1/18頁 |
| 文件大小： | 281K |
| 代理商： | FAN8420D |
2000 Fairchild Semiconductor International
www.fairchildsemi.com
Rev. .9.0
February. 2000.
1

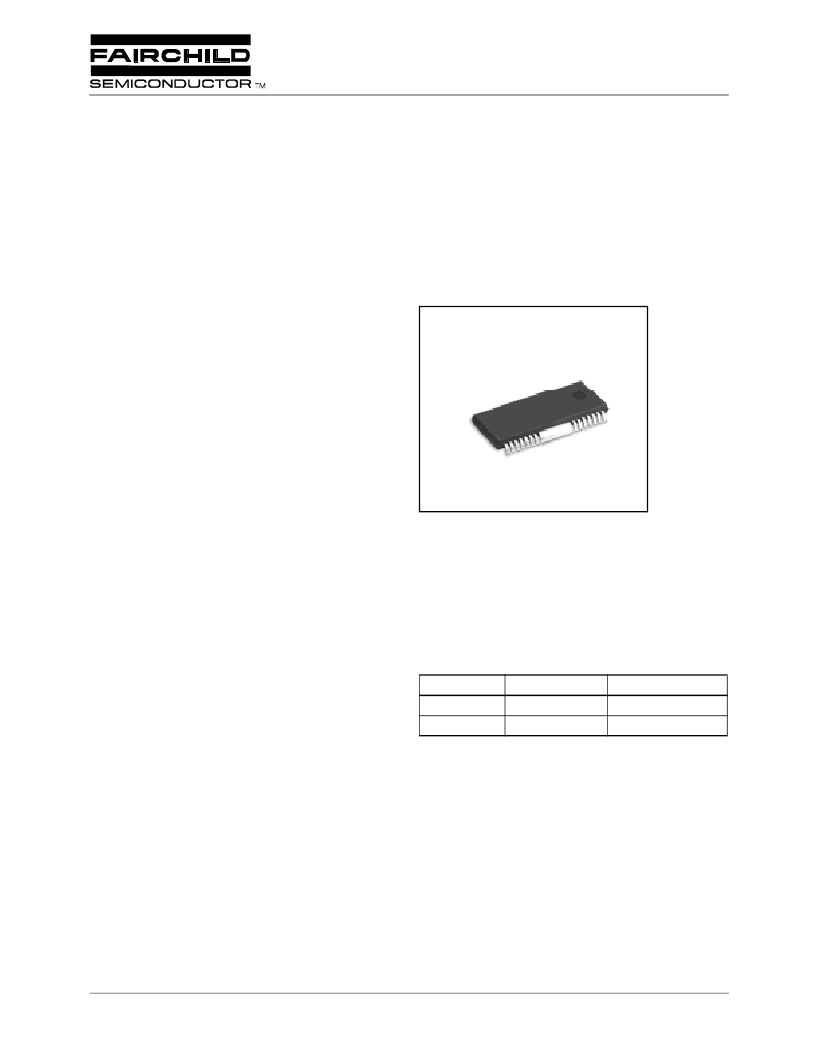

Features
3-phase, full-wave, linear BLDC motor driver
Power save at stop mode
Built-in current limiter
Built-in TSD (Thermal shutdown) circuit
Built-in 3X and 1X hall FG output
Built-in hall bias circuit
Built-in rotational direction detector
Built-in reverse rotation preventer
Built-in short braker
Corresponds to 3.3V DSP
Description
The FAN8420D is a monolithic IC, suitable for a 3-phase
spindle motor driver of a CD-media system.
28-SSOPH-375
Typical Applications
Compact disk ROM (CD-ROM) spindle motor
Compact disk RW (CD-RW) spindle motor
Digital video disk ROM (DVD-ROM) spindle motor
Digital video disk RAM (DVD-RAM) spindle motor
Digital video disk Player (DVDP) spindle motor
Other compact disk media spindle motor
Other 3-phase BLDC motor
Ordering Information
Device
FAN8420D
FAN8420DTF 28-SSOPH-375
Package
28-SSOPH-375
Operating Temp.
25
°
C ~ +75
°
C
25
°
C ~ +75
°
C
FAN8420D (KA3020D)
; Preliminary
3-Phase BLDC Motor Driver
相關PDF資料 |
PDF描述 |
|---|---|
| FAN8422G | Floppy Disk Drive Spindle Motor Driver |
| FAN8423D3TF | 3-Phase BLDC Motor Driver |
| FAN8423D3 | 3-Phase BLDC Motor Driver |
| FAN8423D | 3-Phase BLDC Motor Driver(三相無刷直流電機驅動器) |
| FAN8434 | Camcorder 3 in 1 Motor Driver |
