| 型號： | FAN8422G |
| 廠商： | FAIRCHILD SEMICONDUCTOR CORP |
| 元件分類： | 運動控制電子 |
| 英文描述： | Floppy Disk Drive Spindle Motor Driver |
| 中文描述： | DISK DRIVE MOTOR CONTROLLER, 1 A, PDSO30 |
| 封裝： | 0.375 INCH, SSOP-30 |
| 文件頁數： | 1/10頁 |
| 文件大小： | 358K |
| 代理商： | FAN8422G |
2003 Fairchild Semiconductor Corporation
www.fairchildsemi.com
Rev. 1.0.1

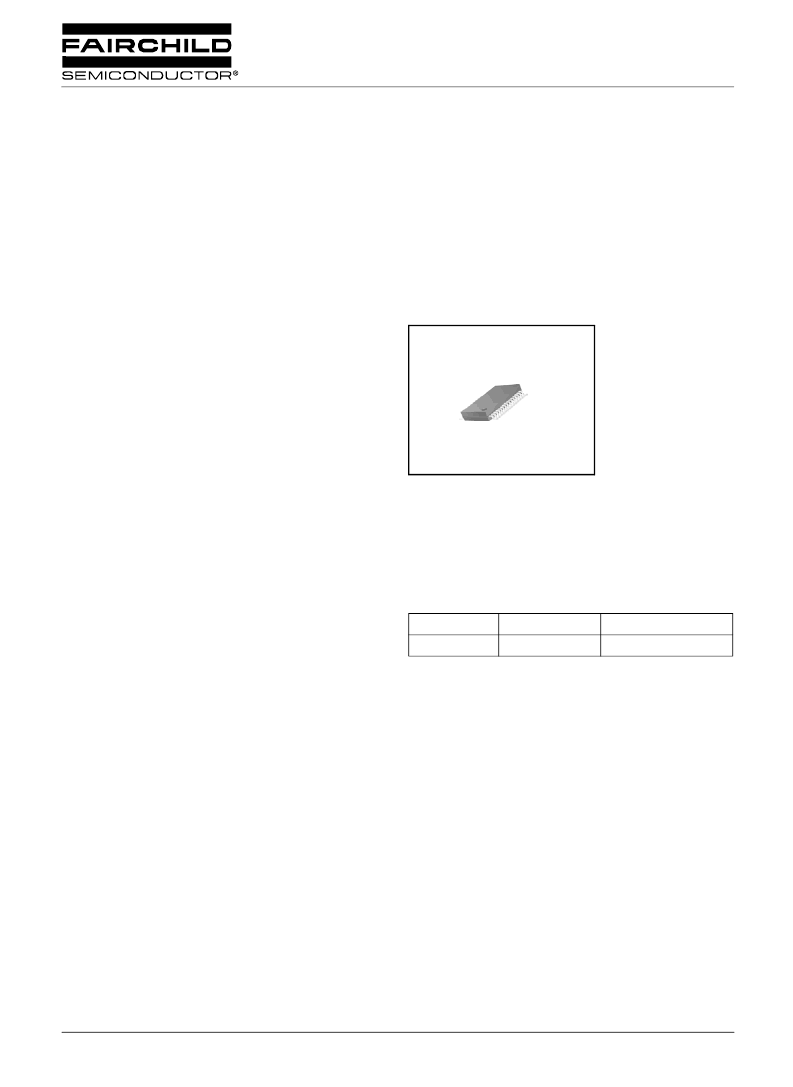

Features
Three-phase, full-wave, linear BLDC motor driver
Commutation with only two hall sensors
Generating index signal without an index hall sensor by
special rotor magnetization
Built-in soft switching drive circuit
300/360rpm selectable speed control circuit
Snubberless output drive
Chip enable function
Built-in current limit circuit
Built-in thermal shutdown circuit
Low output saturation voltage
TTL, 5V CMOS compatible digital inputs
Built-in current-mode control circuit (I
PEAK
: 1A)
Description
The FAN8422G is a monolithic integrated
circuit suitable for a three-phase spindle motor driver of
floppy disk drive systems. It can make index signals without
an index hall sensor by special rotor magnetization.
30-SSOP-375
1
Typical Application
3.5-inch floppy disk drive(FDD) spindle motor driver
Ordering Information
Device
FAN8422G
Package
30-SSOP-375
Operating Temp.
0 ~ 75
°
C
FAN8422G
Floppy Disk Drive Spindle Motor Driver
