FAN8623; PRELIMINARY
19
PWMDEC and Speed Control
Motor speed is measured by the ASIC via the FG output. The digital ASIC compares FG frequency with the target motor
speed and sends the speed compensation signal to the PWMSP input of the FAN8623. This PWM signal is internally filtered
and is converted into DC voltage through the built-in PWM Decoder Filter. The analog output of the filter depends on the duty
of the PWM signal. The filter is a 3rd order, low-pass filter. The first pole location of the filter is determined by the external
capacitor connected to pin(48) CFSP.

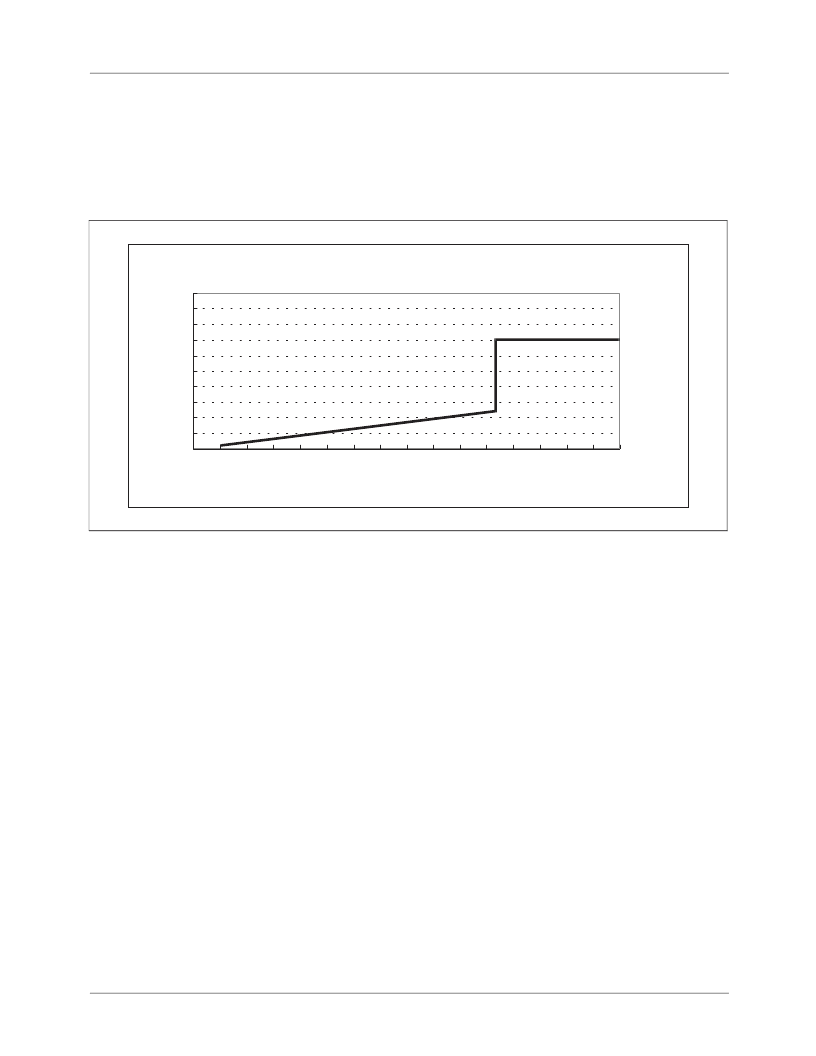

Figure 4. Spindle current vs PWMSP duty variation ( R33 = 0.25
)
Start-up Mode
In the sensorless BLDC motor the Back-EMF is used to determine the rotor position.
At standstill condition, there is no Back-EMF voltage and no FG output. There is no information about the motor position.
To drive the spindle in the start-up mode, the digital ASIC sends the spindle enable signal via CNTL1 and supplies the HIGH
or OPEN signal via CNTL2 to be used as commutation signal of the spindle motor.
PWMSP vs I
SPM
0.0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
Duty(%)
I
OUT
