PSPICE Thermal Model
REV 23 March 2002
FDD106AN06LA0T
CTHERM1 th 6 2.0e-4
CTHERM2 6 5 3.1e-4
CTHERM3 5 4 7.0e-4
CTHERM4 4 3 7.1e-4
CTHERM5 3 2 2.5e-3
CTHERM6 2 tl 7.8e-2
RTHERM1 th 6 2.0e-2
RTHERM2 6 5 6.0e-1
RTHERM3 5 4 8.1e-1
RTHERM4 4 3 1.08
RTHERM5 3 2 1.10
RTHERM6 2 tl 1.11
SABER Thermal Model
SABER thermal model FDD106AN06LA0T
template thermal_model th tl
thermal_c th, tl
{
ctherm.ctherm1 th 6 = 2.0e-4
ctherm.ctherm2 6 5 = 3.1e-4
ctherm.ctherm3 5 4 = 7.0e-4
ctherm.ctherm4 4 3 = 7.1e-4
ctherm.ctherm5 3 2 = 2.5e-3
ctherm.ctherm6 2 tl = 7.8e-2
rtherm.rtherm1 th 6 = 2.0e-2
rtherm.rtherm2 6 5 = 6.0e-1
rtherm.rtherm3 5 4 = 8.1e-1
rtherm.rtherm4 4 3 = 1.08
rtherm.rtherm5 3 2 = 1.10
rtherm.rtherm6 2 tl = 1.11
}
RTHERM4
RTHERM6
RTHERM5
RTHERM3
RTHERM2
RTHERM1
CTHERM4
CTHERM6
CTHERM5
CTHERM3
CTHERM2
CTHERM1

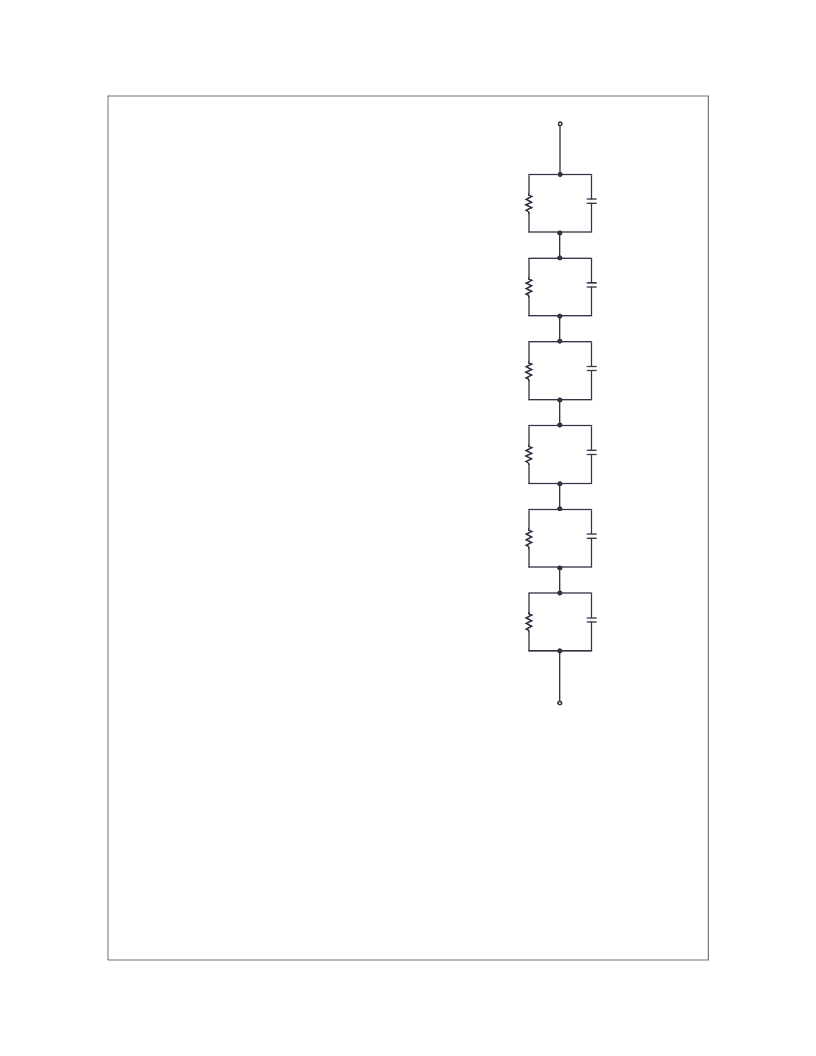

tl
2
3
4
5
6
th
JUNCTION
CASE
