參數資料
| 型號： | FMM5046VF |
| 廠商： | FUJITSU LTD |
| 元件分類： | 衰減器 |
| 英文描述： | GaAs MMIC |
| 中文描述： | 1700 MHz - 2300 MHz RF/MICROWAVE NARROW BAND HIGH POWER AMPLIFIER |
| 封裝： | HERMETIC, METAL-CERAMIC, CASE STYLE VF, 6 PIN |
| 文件頁數： | 1/4頁 |
| 文件大?。?/td> | 112K |
| 代理商： | FMM5046VF |

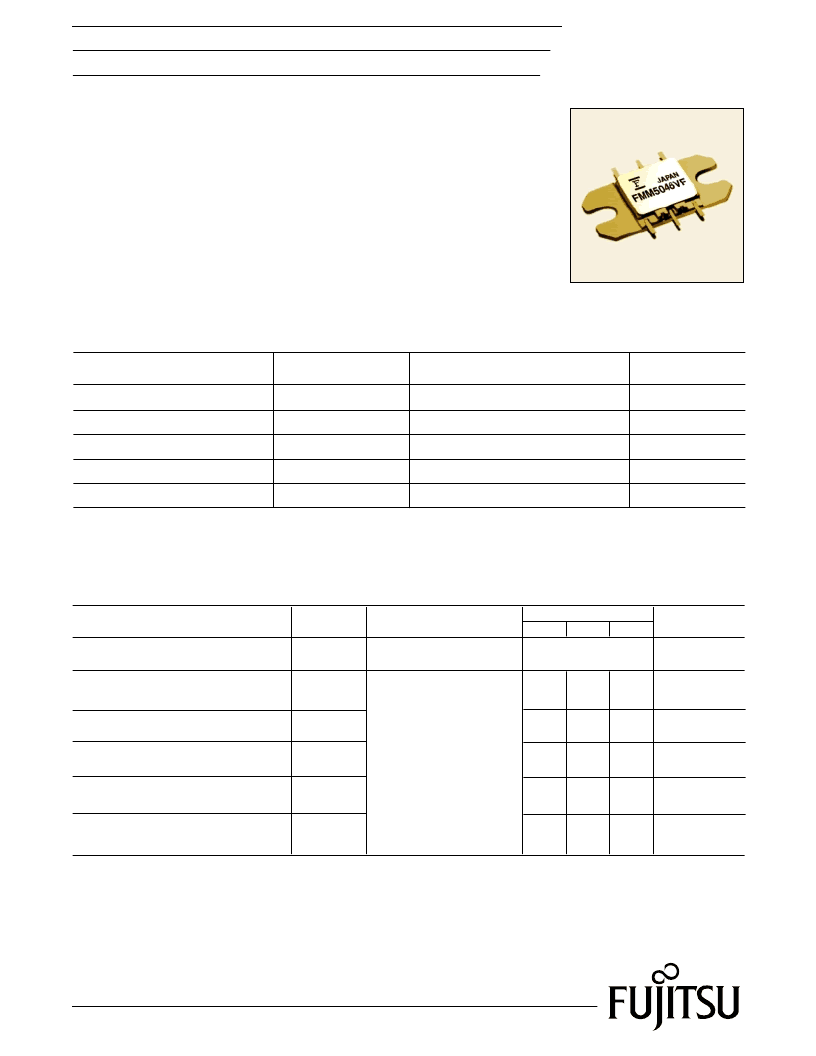

1
Edition 1.5
November 2001
FMM5046VF
GaAs MMIC
DESCRIPTION
The FMM5046VF is a MMIC amplifier designed for PCS/PCN
and W-CDMA applications as a driver or output stage in the
1.7 to 2.3GHz band. The output stage is partially matched
for this device.
FEATURES
High Output Power: 36dBm (typ.)
High Linear Gain: 30dB (typ.)
Low Input VSWR
Small Hermetic Metal-Ceramic Package (VF)
Item
Frequency Range
Output Power at 1dB G.C.P.
Linear Gain
Input VSWR
DC Input Current
DC Input Current
Symbol
f
2.2
35.0
36.0
-
29.0
30.0
-
-
1.5:1
-
-
1.1
-
VDD = 10V
VGG = -5V
f = 2.2GHz
GHz
dBm
dB
-
A
-
35
-
mA
P1dB
GL
VSWRi
IDD
IGG
Test Conditions
Unit
Limit
Typ.
Max.
Min.
ELECTRICAL CHARACTERISTICS (Case Temperature Tc=25
°
C)
CASE STYLE: VF
G.C.P.: Gain Compression Point
Item
DC Input Voltage
DC Input Voltage
Input Power
Storage Temperature
Operating Case Temperature
Symbol
VDD
VGG
Pin
Tstg
12
-7
10
-55 to +125
-40 to +70
V
V
dBm
°
C
°
C
Top
Rating
Unit
ABSOLUTE MAXIMUM RATINGS (Ambient Temperature Ta=25
°
C)
Fujitsu recommends the following conditions for the reliable operation of GaAs modules:
1. The drain operating voltage (VDD) should not exceed 10 volts.
2. The gate operating voltage (VGG) should not exceed -5 volts.
相關PDF資料 |
PDF描述 |
|---|---|
| FMM5048GJ | VSAT MMIC |
| FMM5049VT | Power Amplifier MMIC |
| FMM5051VF | 13.75-14.5GHz Power Amplifier MMIC |
| FMM5051VU | Ku band Power Amplifier MMIC |
| FMM5052ZE | MMIC Power Amplifier |
