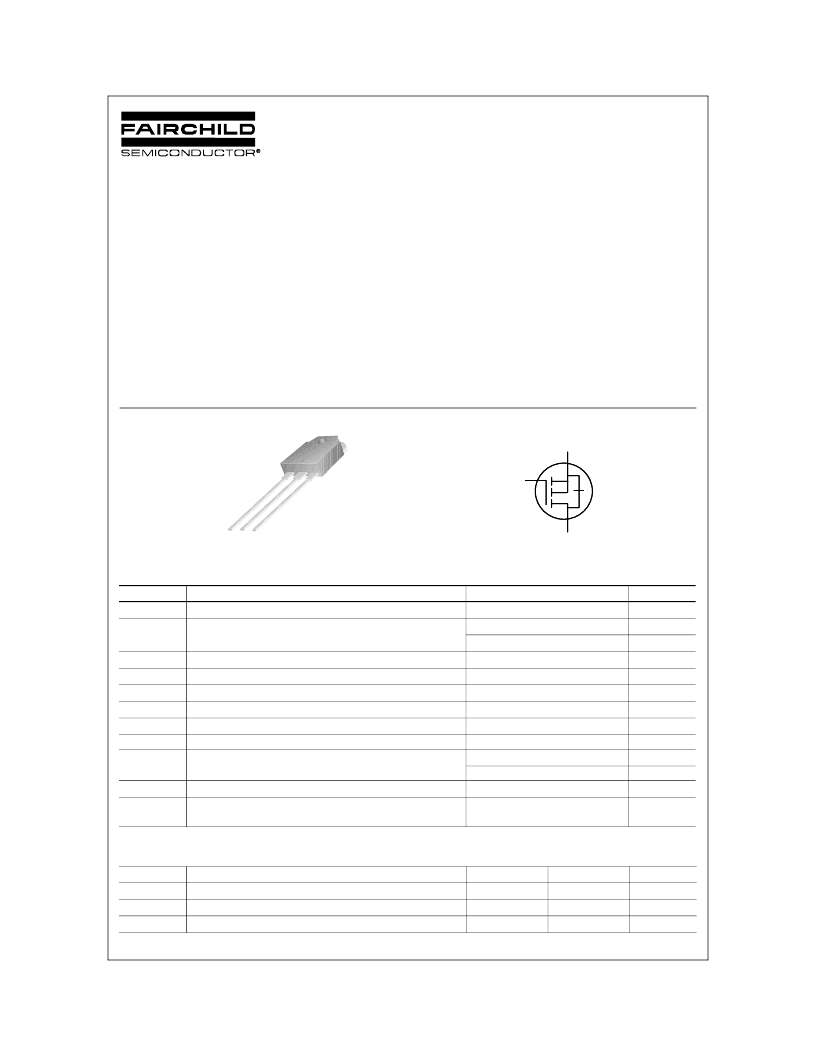

2003 Fairchild Semiconductor Corporation
Rev. B, December 2003
F
QF E T
FQA36P15
150V P-Channel MOSFET
General Description
These P-Channel enhancement mode power field effect
transistors are produced using Fairchild’s proprietary,
planar stripe, DMOS technology.
This advanced technology has been especially tailored to
minimize on-state resistance, provide superior switching
performance, and withstand high energy pulse in the
avalanche and commutation mode. These devices are well
suited for low voltage applications such as audio amplifier,
high efficiency switching DC/DC converters, and DC motor
control.
Features
-36A, -150V, R
DS(on)
= 0.09
@V
GS
= -10 V
Low gate charge ( typical 81 nC)
Low Crss ( typical 110 pF)
Fast switching
100% avalanche tested
Improved dv/dt capability
175
°
C maximum junction temperature rating
Absolute Maximum Ratings
T
C
= 25°C unless otherwise noted
Thermal Characteristics
Symbol
V
DSS
I
D
Parameter
FQA36P15
-150
-36
-25.5
-144
±
30
1400
-36
29.4
-5.0
294
1.96
-55 to +175
Units
V
A
A
A
V
mJ
A
mJ
V/ns
W
W/°C
°C
Drain-Source Voltage
Drain Current
- Continuous (T
C
= 25°C)
- Continuous (T
C
= 100°C)
- Pulsed
I
DM
V
GSS
E
AS
I
AR
E
AR
dv/dt
P
D
Drain Current
Gate-Source Voltage
Single Pulsed Avalanche Energy
Avalanche Current
Repetitive Avalanche Energy
Peak Diode Recovery dv/dt
Power Dissipation (T
C
= 25°C)
(Note 1)
(Note 2)
(Note 1)
(Note 1)
(Note 3)
- Derate above 25°C
T
J
, T
STG
Operating and Storage Temperature Range
Maximum lead temperature for soldering purposes,
1/8
"
from case for 5 seconds
T
L
300
°C
Symbol
R
θ
JC
R
θ
CS
R
θ
JA
Parameter
Typ
--
0.24
--
Max
0.51
--
40
Units
°C
/
W
°C
/
W
°C
/
W
Thermal Resistance, Junction-to-Case
Thermal Resistance, Case-to-Sink
Thermal Resistance, Junction-to-Ambient
●
●
●
●
▲
!
!
D
!
!
!
●
●
S
G
TO-3P
FQA Series
G
S
D
