2003 Fairchild Semiconductor Corporation
F
Rev. D, August 2003
Integrated Power Functions
600V-20A IGBT inverter for 3-phase DC/AC power conversion (Please refer to Fig. 3)
Integrated Drive, Protection and System Control Functions
For inverter high-side IGBTs: Gate drive circuit, High voltage isolated high-speed level shifting
Control circuit under-voltage (UV) protection
Note) Available bootstrap circuit example is given in Figs. 14and 15.
For inverter low-side IGBTs: Gate drive circuit, Short-Circuit (SC) protection
Control supply circuit under-voltage (UV) protection
Temperature Monitoring: System over-temperature monitoring using built-in thermistor
Note) Available temperature monitoring circuit is given in Fig. 15.
Fault signaling: Corresponding to a SC fault (Low-side IGBTs) or a UV fault (Low-side control supply circuit)
Input interface: 5V CMOS/LSTTL compatible, Schmitt trigger input

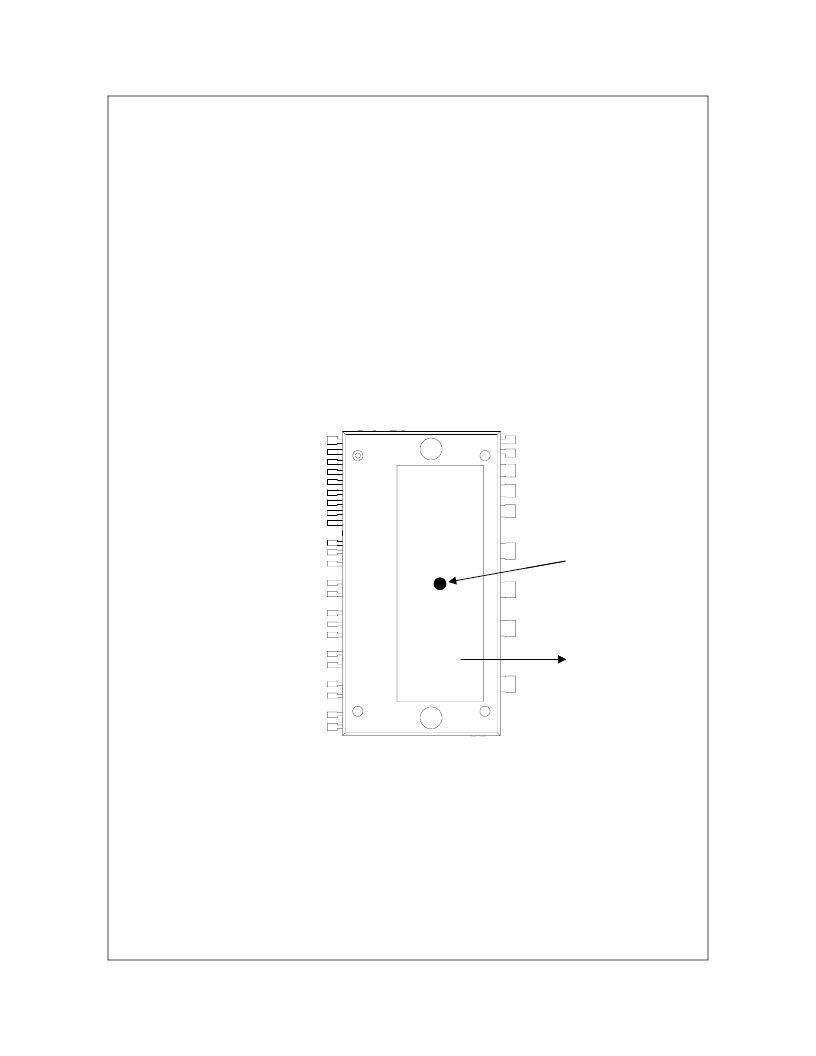

Pin Configuration
Fig. 2.
Top View
(9) C
SC
(12) V
CC(UH)
(14) V
S(U)
(17) V
CC(VH)
(19) V
S(V)
(21) V
CC(WH)
(23) V
S(W)
(26) N
U
(27) N
V
(28) N
W
(29) U
(30) V
(31) W
(32) P
Detecting Point
Ceramic Substrate
(8) C
FOD
(11) IN
(UH)
(13) V
B(U)
(16) com
(H)
(18) V
B(V)
(20) IN
(WH)
(22) V
B(W)
(25) R
TH
(1) V
(2) com
(L)
(3) IN
(UL)
(4) IN
(VL)
(5) IN
(WL)
(6) com
(L)
(7) FO
(10) R
SC
(15) IN
(VH)
(24) V
TH
Case Temperature (T
C
)
