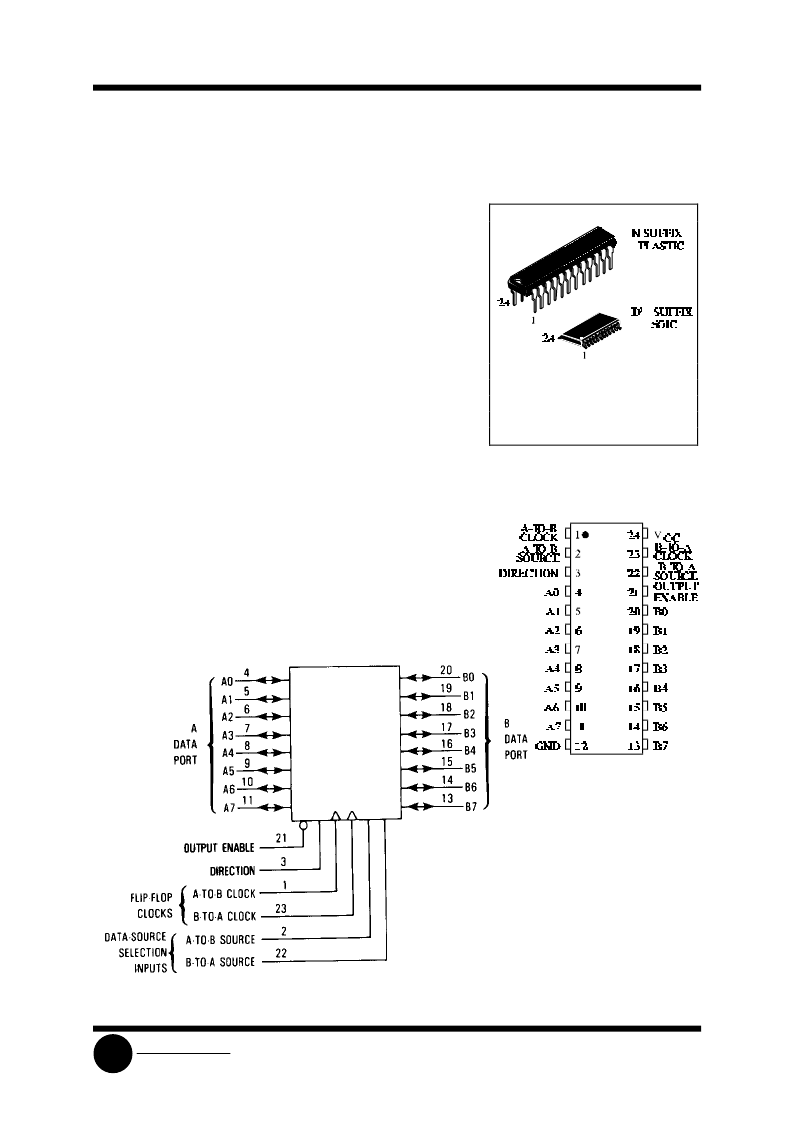

SL74HC652
S ystem Logic
Semiconductor
SLS
Octal 3-State Bus Transceivers and D Flip-Flops
High-Performance Silicon-Gate CMOS
The SL74HC652 is identical in pinout to the LS/ALS652. The device
inputs are compatible with standard CMOS outputs; with pullup
resistors, they are compatible with LS/ALSTTL outputs.
These devices consists of bus transceiver circuits, D-type flip-flop,
and control circuitry arranged for multiplex transmission of data
directly from the data bus or from the internal storage registers.
Direction and Output Enable are provided to select the read-time or
stored data function. Data on the A or B Data bus, or both, can be
stored in the internal D flip-flops by low-to-high transitions at the
appropriate clock pins (A-to-B Clock or B-to-A Clock) regardless of the
select or enable or enable control pins. When A-to-B Source and B-to-
A Source are in the real-time transfer mode, it is also possible to store
data without using the internal D-type flip-flops by simulta-neously
enabling Direction and Output Enable. In this configuration each
output reinforces its input. Thus, when all other data sources to the
two sets of bus lines are at high impedance, each set of bus lines will
remain at its last state.
The SL74HC652 has noninverted outputs.
Outputs Directly Interface to CMOS, NMOS, and TTL
Operating Voltage Range: 2.0 to 6.0 V
Low Input Current: 1.0
μ
A
High Noise Immunity Characteristic of CMOS Devices
ORDERING INFORMATION
SL74HC652N Plastic
SL74HC652D SOIC
T
A
= -55
°
to 125
°
C for all packages
LOGIC DIAGRAM
PIN 24=V
CC
PIN 12 = GND
PIN ASSIGNMENT
