IRHNA7260, IRHNA8260 Devices
Pre-Irradiation
8
www.irf.com
Total Dose Irradiation with VGS Bias.
12 volt VGS applied and VDS = 0 during
irradiation per MIL-STD-750, method 1019, condition A.
Total Dose Irradiation with VDS Bias.
VDS = 0.8 rated BVDSS (pre-irradiation)
applied and VGS = 0 during irradiation per
MlL-STD -750, method 1019, condition A.
This test is performed using a flash x-ray
source operated in the e-beam mode (energy
~2.5 MeV), 30 nsec pulse.
All Pre-Irradiation and Post-Irradiation test
conditions are
identical
to facilitate direct
comparison for circuit applications.
Repetitive Rating; Pulse width limited by
maximum junction temperature.
Refer to current HEXFET reliability report.
@ VDD = 50V, Starting TJ = 25
°
C,
EAS = [0.5 * L * (IL
Peak IL = 43A, VGS = 12V, 25
≤
RG
≤
200
ISD
≤
43A, di/dt
≤
410A/
μ
s,
VDD
≤
BVDSS, TJ
≤
150
°
C
Suggested RG = 2.35
Pulse width
≤
300
μ
s; Duty Cycle
≤
2%
2
)]

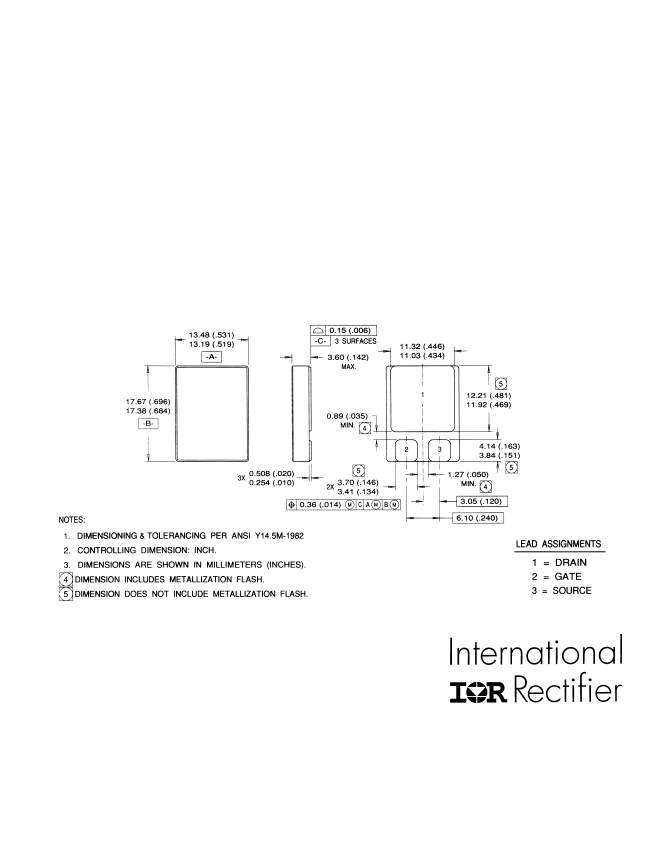

Case Outline and Dimensions — SMD-2
SMD-2
WORLD HEADQUARTERS:
233 Kansas St., El Segundo, California 90245, Tel: (310) 322 3331
IR GREAT BRITAIN:
Hurst Green, Oxted, Surrey RH8 9BB, UK Tel: ++ 44 1883 732020
IR CANADA:
15 Lincoln Court, Brampton, Ontario L6T3Z2, Tel: (905) 453 2200
IR GERMANY:
Saalburgstrasse 157, 61350 Bad Homburg Tel: ++ 49 6172 96590
IR ITALY:
Via Liguria 49, 10071 Borgaro, Torino Tel: ++ 39 11 451 0111
IR FAR EAST:
K&H Bldg., 2F, 30-4 Nishi-Ikebukuro 3-Chome, Toshima-Ku, Tokyo Japan 171 Tel: 81 3 3983 0086
IR SOUTHEAST ASIA:
1 Kim Seng Promenade, Great World City West Tower, 13-11, Singapore 237994 Tel: ++ 65 221 8371
IR TAIWAN:
16 Fl. Suite D. 207, Sec. 2, Tun Haw South Road, Taipei, 10673, Taiwan Tel: 886-2-2377-9936
http://www.irf.com/ Data and specifications subject to change without notice.
