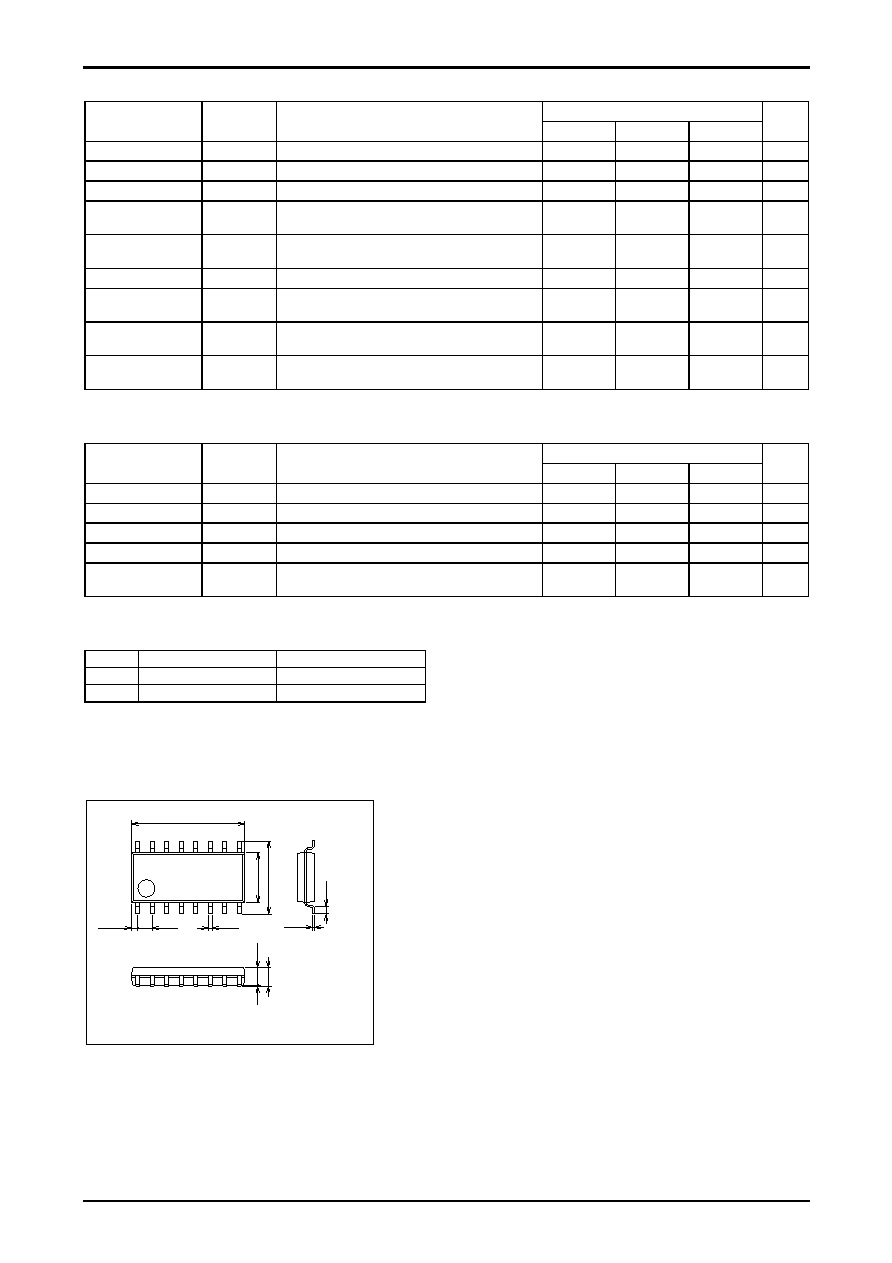

LA7106M
No.A0216-2/5
Electrical Characteristics at Ta = 25
°C, VCC = ±5.0V
Ratings
Parameter
Symbol
Conditions
min
typ
max
Unit
Current dissipation 1
ICC1
No signal, Pin 12 = L
25.5
30
34.5
mA
Current dissipation 2
ICC2
No signal, Pin 12 = H
18.7
22
25.3
mA
Voltage gain
VG
VIN = 1Vp-p, f = 4.43MHz
5.7
6.2
6.7
dB
Frequency
characteristics 1
VF1
VIN = 1Vp-p, f = 100k/7MHz
-1.0
0
1.0
dB
Frequency
characteristics 2
VF2
VIN = 1Vp-p, f = 100k/27MHz
-25
-20
dB
Group delay
GD
f = 100k/4.43MHz
±10
±15
ns
Maximum
output level
VO max
f = 1kHz, THD = 1%
5.0
6.0
Vp-p
Control voltage
H level
VcntH
Pins 3, 10, 12 input voltage
2.5
VCC
V
Control voltage
L level
VcntL
Pins 3, 10, 12 input voltage
0
1.0
V
Design Guarantee Items
Ratings
Parameter
Symbol
Conditions
min
typ
max
Unit
Video S/N
VG1V
-75
-70
dB
Differential gain
DG
VIN = 1Vp-p, RAMP signal
1.0
%
Differential phase
DP
VIN = 1Vp-p, RAMP signal
1.0
deg.
Mute attenuation
VMUTEV
VIN = 1Vp-p, f = 4.43MHz
-60
-55
dB
Cross-talk
between channel
VCTKV
VIN = 1Vp-p, f = 4.43MHz
-60
-55
dB
Truth Table
Pins 3, 10
Pin 12
High
THROUTH
150
DRIVE
Low
MUTE
75
DRIVE
Package Dimensions
unit : mm
3035B
SANYO : MFP16(225mil)
1
8
16
9
10.0
0.63
6.4
0.15
0.35
1.27
(0.56)
4.4
(1
.5
)
1.7max
0.1
