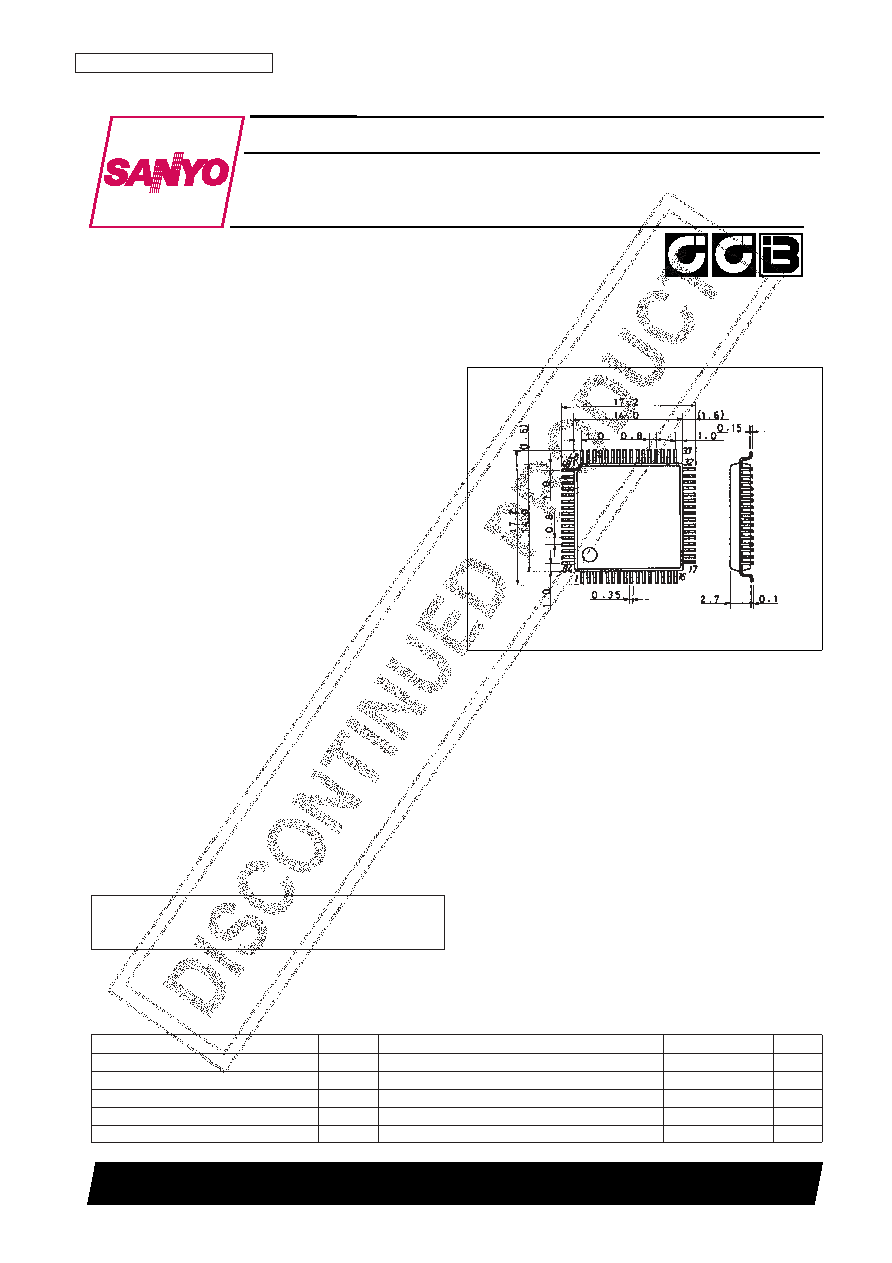

Specifications
Absolute Maximum Ratings at Ta = 25C, VSS = 0 V
CMOS LSI
Ordering number : EN5056A
63096HA (OT)/71895HA (OT) No. 5056-1/17
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110 JAPAN
Single-Chip Electronic Volume Control System
LC75395E
Overview
The LC75395E is an electronic volume control that
provides volume, balance, five-band equalization and
input switching functions. These functions are controlled
from serial input data.
Functions
Volume control: The volume control provides 25
attenuation positions: from 0 dB to —17.5 dB in 1.25 dB
steps, from —17.5 dB to —25 dB in 2.5 dB steps, from
—25 dB to —36.25 dB in 3.75 dB steps and with settings
for —41.25 dB, —50 dB, —60 dB and —∞.
A balance function can be implemented by controlling
the left and right channels independently.
Equalizer: The equalizer function supports –10 dB
control in 2 dB steps in each of the five bands. Of the
five bands, four provide peaking characteristics, and one
provides shelving characteristics.
Selector: The selector function selects one of four inputs
for each of the left and right channels. An arbitrary
amplification level can be set for each input signal using
external components.
Serial data input: All controls can be set from serial
input data (CCB format)
Features
On-chip buffer amplifiers to minimize the number of
external components
Silicon-gate CMOS process for minimal switching noise
On-chip circuit to generate the VDD/2 reference voltage
Package Dimensions
unit: mm
3159-QFP64E
CCB is a trademark of SANYO ELECTRIC CO., LTD.
CCB is SANYOs original bus format and all the bus
addresses are controlled by SANYO.
Parameter
Symbol
Conditions
Ratings
Unit
Maximum supply voltage
VDD max
VDD
12
V
Maximum input voltage
VIN max
CL, DI, CE, L1 to L4, R1 to R4, LTIN, RTIN, LVRIN, RVRIN
VSS – 0.3 to VDD + 0.3
V
Allowable power dissipation
Pd max
Ta ≤ 85°C
310
mW
Operating temperature
Topr
–30 to +85
°C
Storage temperature
Tstg
–40 to +125
°C
[LC75395E]
SANYO: QIP64E
