Overview
The LC8213K compresses and expands the binary image
data used in fax and similar applications and can be used
in office automation equipment such as G3 or G4
facsimile systems, image filing systems, digital copiers,
and engineering workstations. The LC8213K supports
encoding methods that conform to the MH (Modified
Huffman), MR (Modified relative element address
designate), and MMR (Modified MR) encoding
techniques as stipulated in the ITU-T T.4 and T.6
recommendations.
Features
Conforms to the ITU-T T.4 and T.6 MH, MR, and
MMR encoding methods.
Supports G3 and G4 facsimile.
Handles up to 64k bits in the main scan direction.
Line skip mode
8/16-bit image memory bus, 8-bit CPU bus
Supports data transfers between the CPU bus and the
image memory bus.
DMA transfer function for data transfers between image
memory and I/O devices
Executes encoding processing and DMA transfers
simultaneously
System clock frequency: Up to 25 MHz
CMOS structure supporting low power dissipation

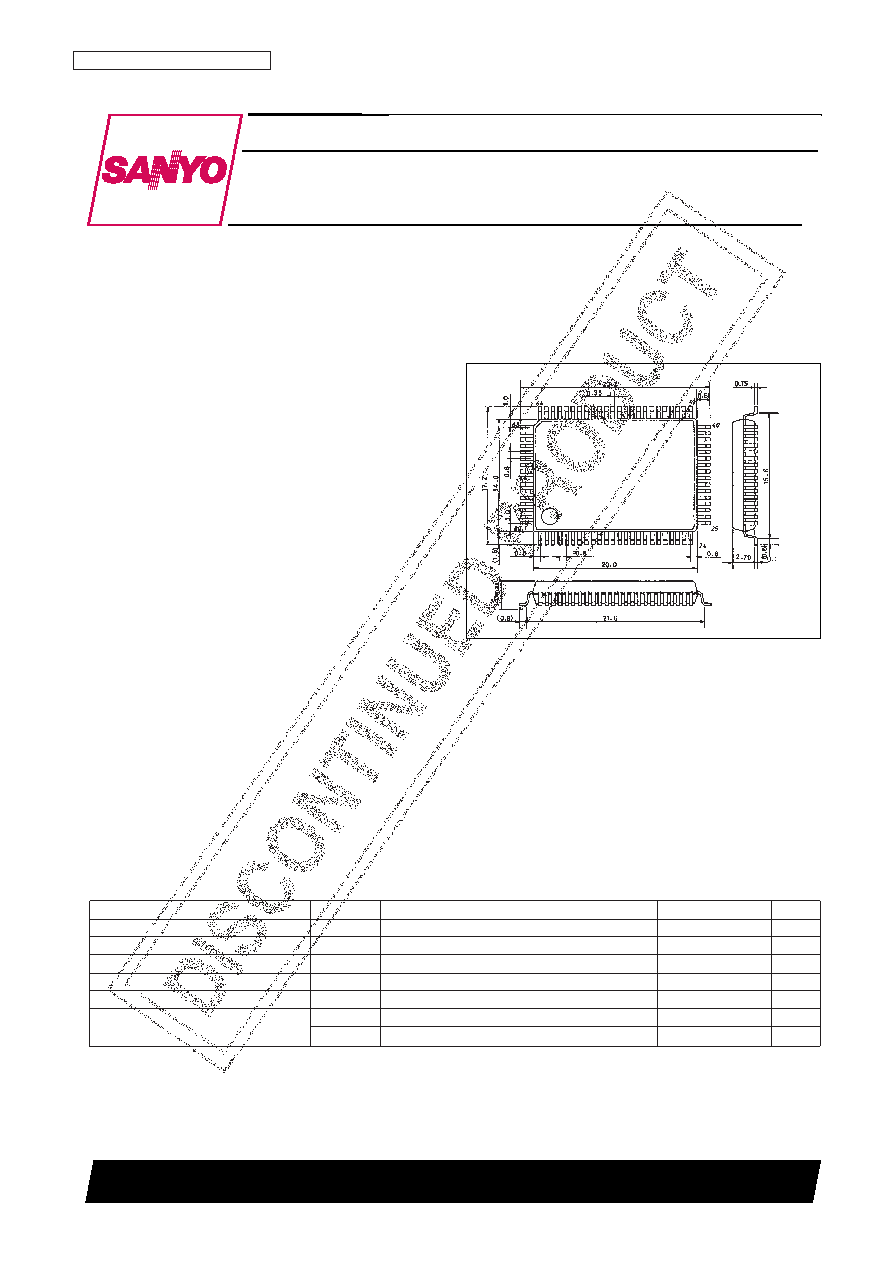

Package Dimensions
unit: mm
3174-QFP80E
CMOS LSI
Ordering number : EN *5753
93097HA (OT) No. 5753-1/5
Preliminary
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110 JAPAN
Image Data Compression/Expansion Processor
LC8213K
Specifications
Absolute Maximum Ratings at Ta = 25°C, VSS = 0 V
Parameter
Symbol
Condition
Ratings
Unit
Maximum supply voltage
VDD max
–0.3 to +7.0
V
Input and output voltages
VI, VO
–0.3 to VDD + 0.3
V
Allowable power dissipation
Pd max
Ta ≤ 70°C
500
mW
Operating temperature
Topr
–30 to +70
°C
Storage temperature
Tstg
–55 to +125
°C
Soldering conditions
Hand soldering: 3 seconds
350
°C
Reflow soldering: 10 seconds
235
°C
[LC8213K]
SANYO: QIP80E
