LMH6550
Differential, High Speed Op Amp
General Description
The LMH
6550 is a high performance voltage feedback
differential amplifier. The LMH6550 has the high speed and
low distortion necessary for driving high performance ADCs
as well as the current handling capability to drive signals
over balanced transmission lines like CAT 5 data cables. The
LMH6550 can handle a wide range of video and data for-
mats.
With external gain set resistors, the LMH6550 can be used
at any desired gain. Gain flexibility coupled with high speed
makes the LMH6550 suitable for use as an IF amplifier in
high performance communications equipment.
The LMH6550 is available in the space saving SOIC pack-
age.
Features
n
400 MHz 3 dB bandwidth (V
OUT
= 0.5 V
PP
)
n
90 MHz 0.1 dB bandwidth
n
3000 V/μs slew Rate
n
8 ns settling time to 0.1%
n
92/103 dB HD2/HD3
@
5 MHz
n
10 ns shutdown/enable
Applications
n
Differential AD driver
n
Video over twisted pair
n
Differential line driver
n
Single end to differential converter
n
High speed differential signaling
n
IF/RF amplifier
n
SAW filter buffer/driver
Typical Application

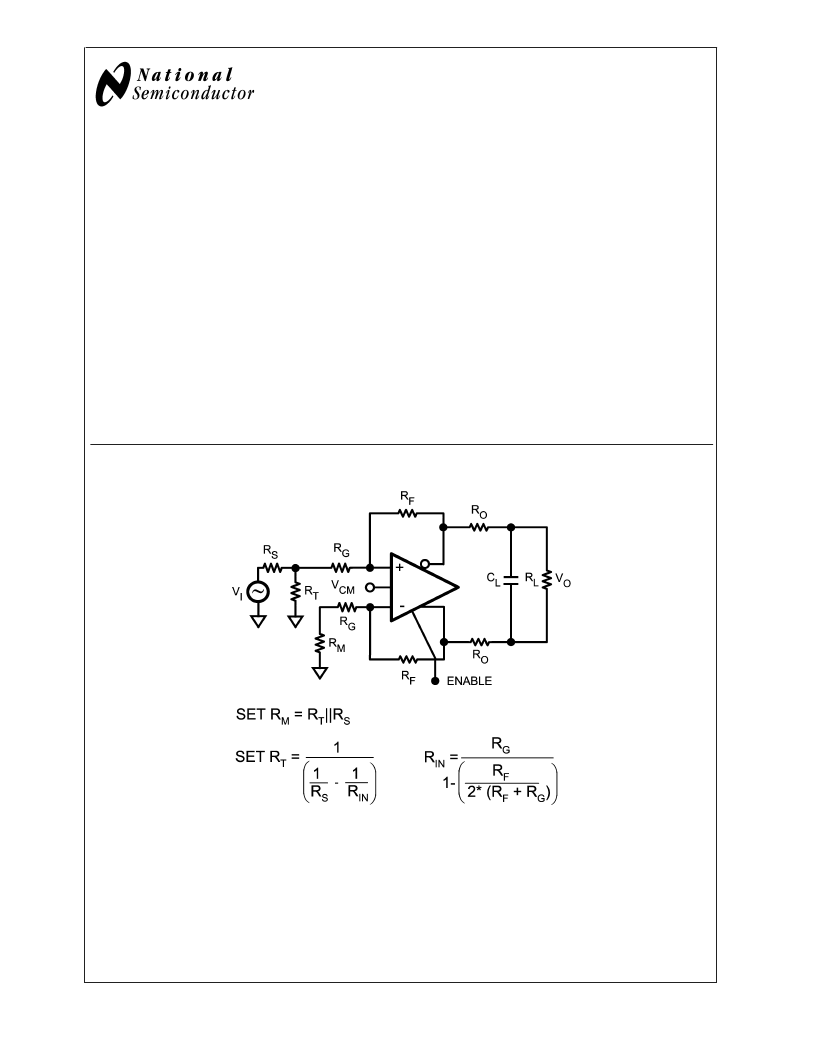

20130110
Single Ended Input Differential Output.
Gain = A
V
=0.5 * R
F
/R
G
LMH
is a trademark of National Semiconductor Corporation.
December 2004
L
2004 National Semiconductor Corporation
DS201301
www.national.com
