Programming Description
(Continued)

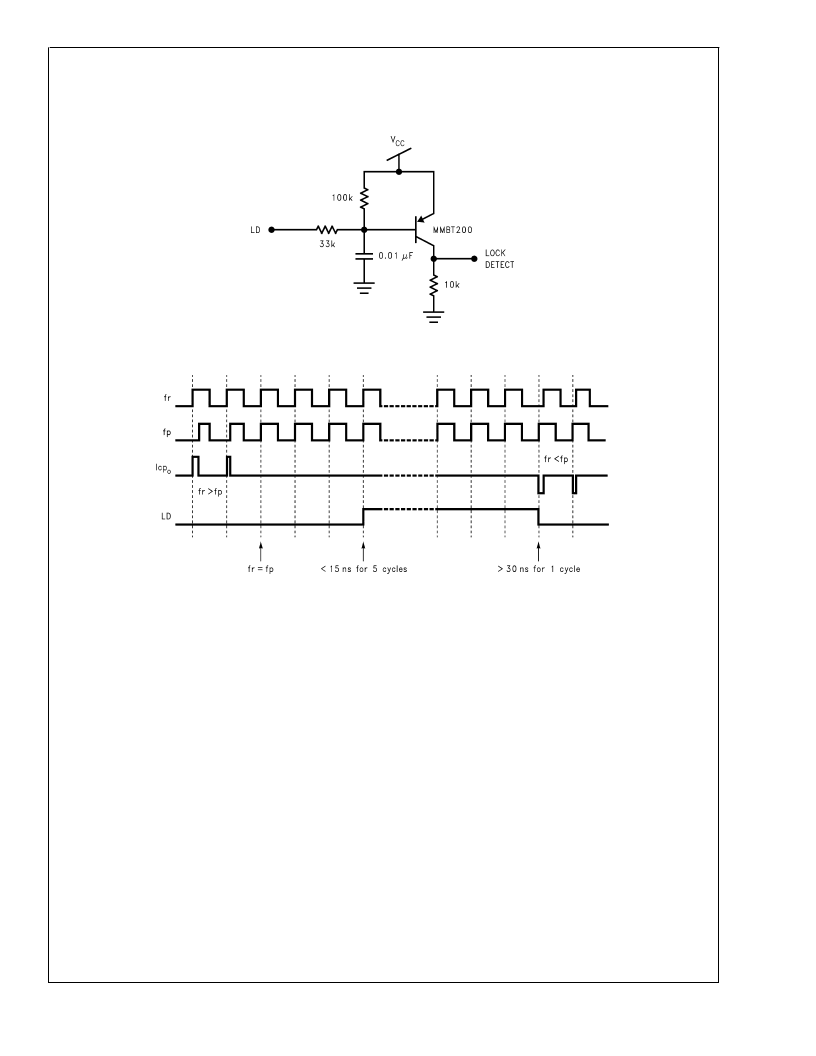

5.6 ANALOG LOCK DETECT FILTER
When the Fo/LD output is configured in analog lock detect mode an external lock detect circuit is needed in order to provide a
steady LOW signal when the PLL is in the locked state. A typical circuit is shown below.
20004805
5.7 TYPICAL LOCK DETECT TIMING
20004806
L
www.national.com
21
