1/8
2002-06-27
3 STATES ENCODER
3
態編碼
IC
EN/DECODER
M5E
一華半導體股份有限公司
MOSDESIGN SEMICONDUCTOR CORP.
GENERAL DESCRIPTION
功能敘述
The M5E is a CMOS ASIC encoder. It will en-code 12 parallel data inputs (A0~A11) and serially transmit them to the output
when transmits enable (TE) depressed. The address inputs are 3 states i.e. LOW (0) or OPEN (X) and HIGH (1). It will transmit 1
cycle each time TE depressed.
FEATURES
產品特長
Same Rosc matched to the DECODER M5D/F
3
12
=531, 441 codes, “0”, “X”, “1” Tri-states
4 cycles transmission each time
Direct data transmit type : (Elimination TE and diodes)
─
M5E-H : switch to VDD
Built-in IR carrier : suffix –IR
DIP 18 or SO available
APPLICATIONS
產品應用
Car/home alarm system, garage control etc..

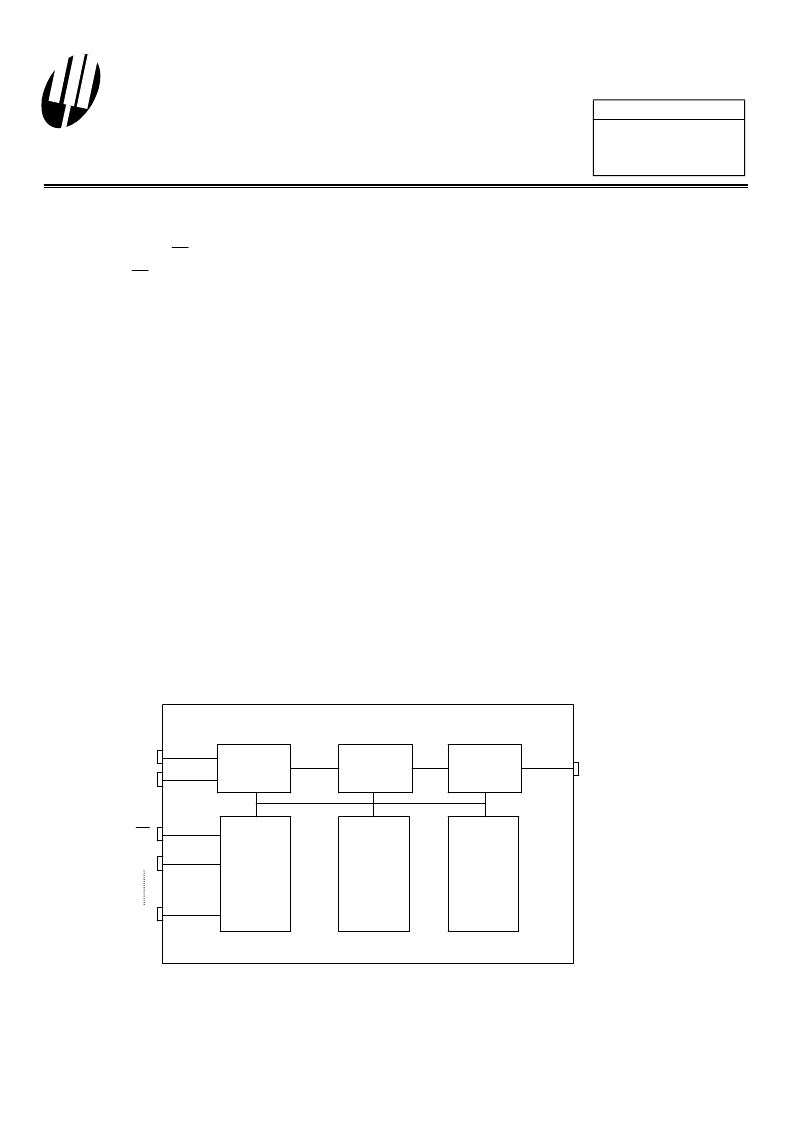

BLOCK DIAGRAM
功能方塊圖
*All specs and applications shown above subject to change without prior notice.
(
以上電路及規格僅供參考
,
本公司得徑行修正
)
Oscillator
Control
Input
X
A0
A11
DO
Freq
Divider
Logic unit
Central
Control
Output
Driver
Y
TE
Carrier
IR
