| 型號： | MC34016 |
| 廠商： | Motorola, Inc. |
| 英文描述： | Cordless Universal Telephone Interface |
| 中文描述： | 通用無繩電話接口 |
| 文件頁數： | 1/16頁 |
| 文件大小： | 315K |
| 代理商： | MC34016 |
Device
Operating
Temperature Range
Package

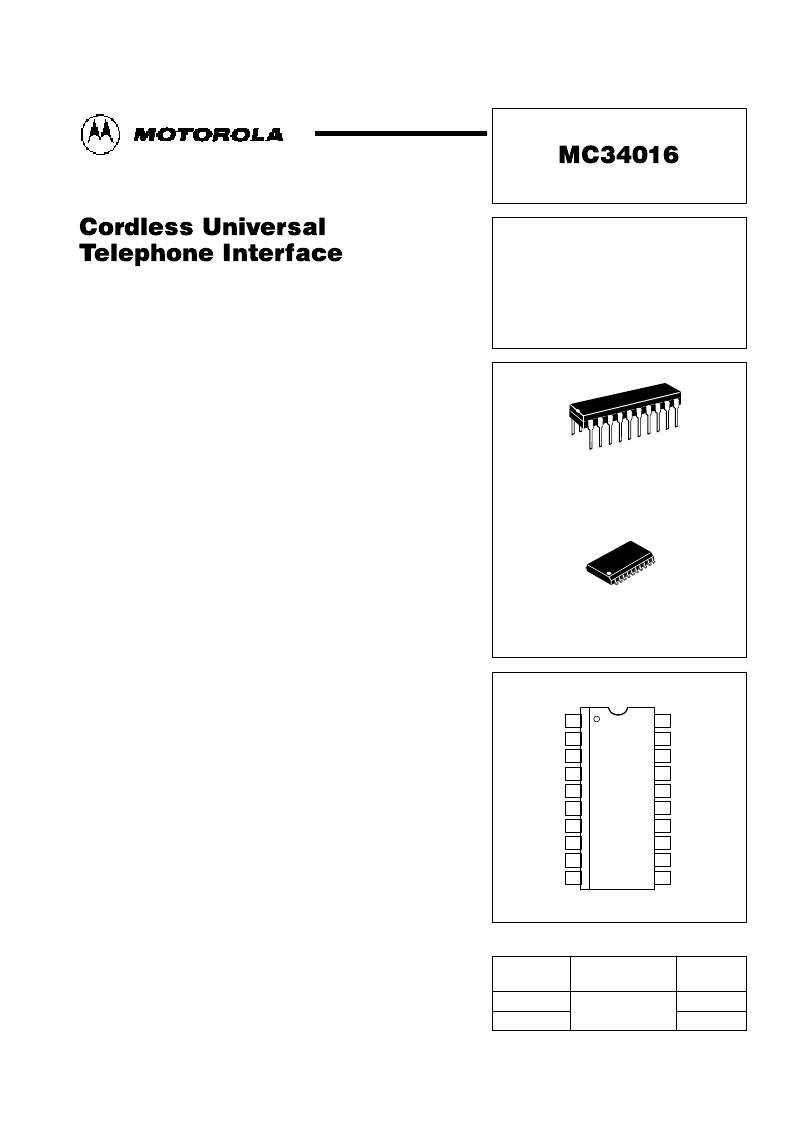

SEMICONDUCTOR
TECHNICAL DATA
CORDLESS UNIVERSAL
TELEPHONE INTERFACE
ORDERING INFORMATION
MC34016P
MC34016DW
DIP
SO–20
DW SUFFIX
PLASTIC PACKAGE
CASE 751D
20
1
(Top View)
PIN CONNECTIONS
Order this document by MC34016/D
P SUFFIX
PLASTIC PACKAGE
CASE 738
20
1
1
20
19
18
17
16
15
14
13
12
2
3
4
5
6
7
8
9
10
Clk
Data
Out2
Stab
Gnd
Out1
BEN
LAI
AGC
Tx2
Tx1
Rx1
Rx2
HYS
VCC
Iref
HYL
11
SRF
LAO
HKSW
TA = –20
°
to +70
°
C
1
MOTOROLA ANALOG IC DEVICE DATA
The MC34016 is a telephone line interface meant for use in cordless
telephone base stations for CT0, CT1, CT2 and DECT. The circuit forms the
interface towards the telephone line and performs all speech and line
interface functions like dc and ac line termination, 2–4 wire conversion,
automatic gain control and hookswitch control. Adjustment of transmission
parameters is accomplished by two 8–bit registers accessible via the
integrated serial bus interface and by external components.
DC Masks for Voltage and Current Regulation
Supports Passive or Active AC Set Impedance Applications
Double Wheatstone Bridge Sidetone Architecture
Symmetrical Inputs and Outputs with Large Signal Swing Capability
Gain Setting and Mute Function for Tx and Rx Amplifiers
Very Low Noise Performance
Serial Bus Interface SPI Compatible
Operation from 3.0 to 5.5 V
FEATURES
Line Driver Architecture
Two DC Masks for Voltage Regulation
Two DC Masks for Current Regulation
Passive or Active Set Impedance Adjustment
Double Wheatstone Bridge Architecture
Automatic Gain Control Function
Transmit Channel
Symmetrical Inputs Capable of Handling Large Voltage Swing
Gain Select Option via Serial Bus Interface
Transmit Mute Function, Programmable via Bus
Large Voltage Swing Capability at the Telephone Line
Receive Channel
Double Sidetone Architecture for Optimum Line Matching
Symmetrical Outputs Capable of Producing High Voltage Swing
Gain Select Option via Serial Bus Interface
Receive Mute Function, Programmable via Serial Bus
Serial Bus Interface
3–Wire Connection to Microcontroller
One Programmable Output Meant for Driving a Hookswitch
Two Programmable Outputs Capable of Driving Low Ohmic Loads
Two 8–Bit Registers for Parameter Adjustment
Motorola, Inc. 1996
Rev 1
