MC44144
4
MOTOROLA ANALOG IC DEVICE DATA

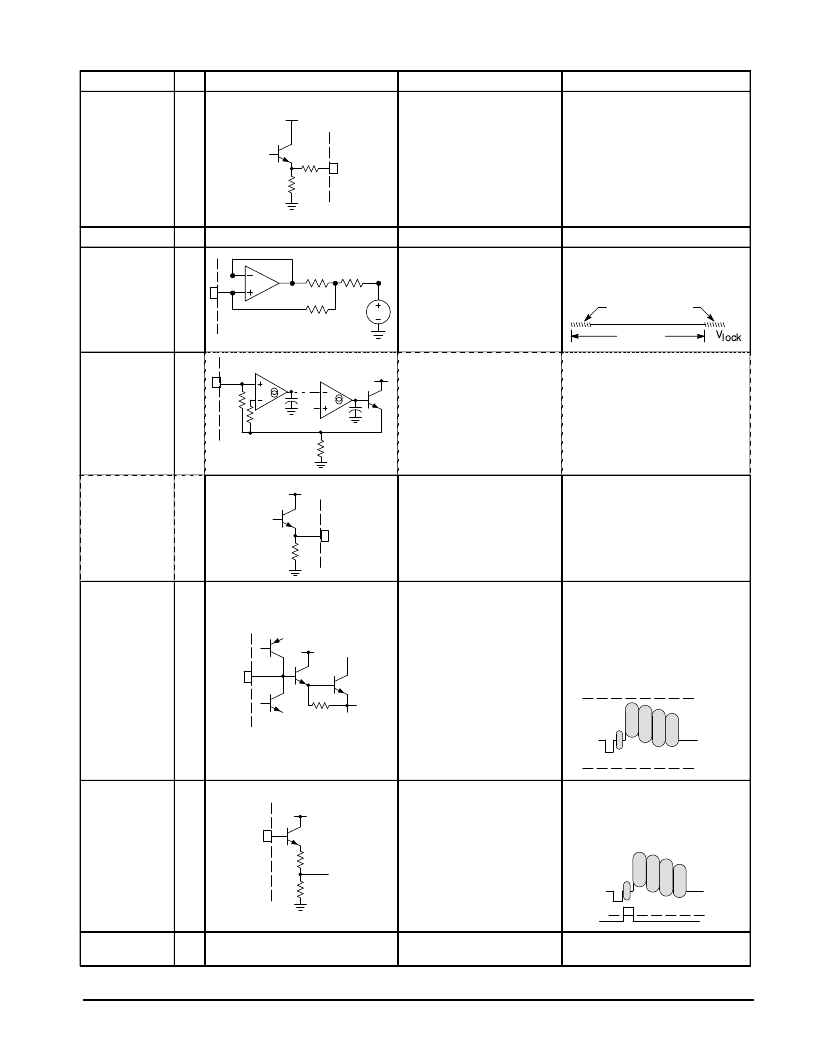

PIN FUNCTION DESCRIPTION
Name
Pin
Representative Circuitry
Description
Expected Waveforms
Subcarrier
Output
1
5.0k
200
VCC
Subcarrier Output. A
phase–locked reference of the
PAL or NTSC color burst is
output at this pin.
A 300 mVpp square wave is output.
Some high frequency content is
present.
Ground
2
Circuit Ground
Phase
Detector
Output
3
1.0k
31k
33k
2.5V
The error current from the
phase detector is output at this
pin. A filter circuit should be
connected at this pin.
A beat waveform, showing both
horizontal period and half the
subcarrier period, is present.
Line Period
1/2 Subcarrier Period
4X Sub Xtal
4
gm
2.0k
400
VCC
Vref
gm
Crystal Oscillator Pin. A 4X
subcarrier parallel resonant
crystal, in series with a 5.0 to
25 pF trimmer capacitor
provides the resonant element
for the Voltage Controlled
Crystal Oscillator (VCXO).
Approximately 40 mVpp. A scope
probe will disturb the frequency of
oscillation.
4X Subcarrier
Output (or
Black Burst)
5
5.0k
VCC
Buffered output from the 4X
voltage controlled oscillator.
The sinusoidal 4Xfsc oscillator output
is available at this pin.
The output is nominally:
525 mVpp for NTSC,
425 mVpp for PAL.
Composite
Video Input
(Black Burst,
Continuous
Wave, or
Composite
Chroma
can also be
applied)
6
22k
VCC
Composite Video Input. Color
burst from the video present at
this pin is used as a reference
to phase lock the VCXO.
Positive or negative video may
be used.
Composite video should be applied
at this pin. The color burst
amplitude of the input video should
be at least 50 mV, but no more than
1000 mV. The waveform at this pin
should not exceed ground or VCC.
VCC
GND
2.6V
Burst Gate
Input
7
VCC
22k
22k
Input for the phase detector
gate pulse. TTL compatible.
The threshold is nominally
2.6V.
A positive going gate pulse should
be applied at this pin. The Burst Gate
input should envelope the color
burst.
Pin 7
2.2V
Pin 6
VCC
8
Power Supply Pin. 5.0 Vdc
should be applied at this pin.
