Electrical Specifications
General Release Specification
MC68HC05C9A
Rev. 4.0
128
Electrical Specifications
MOTOROLA

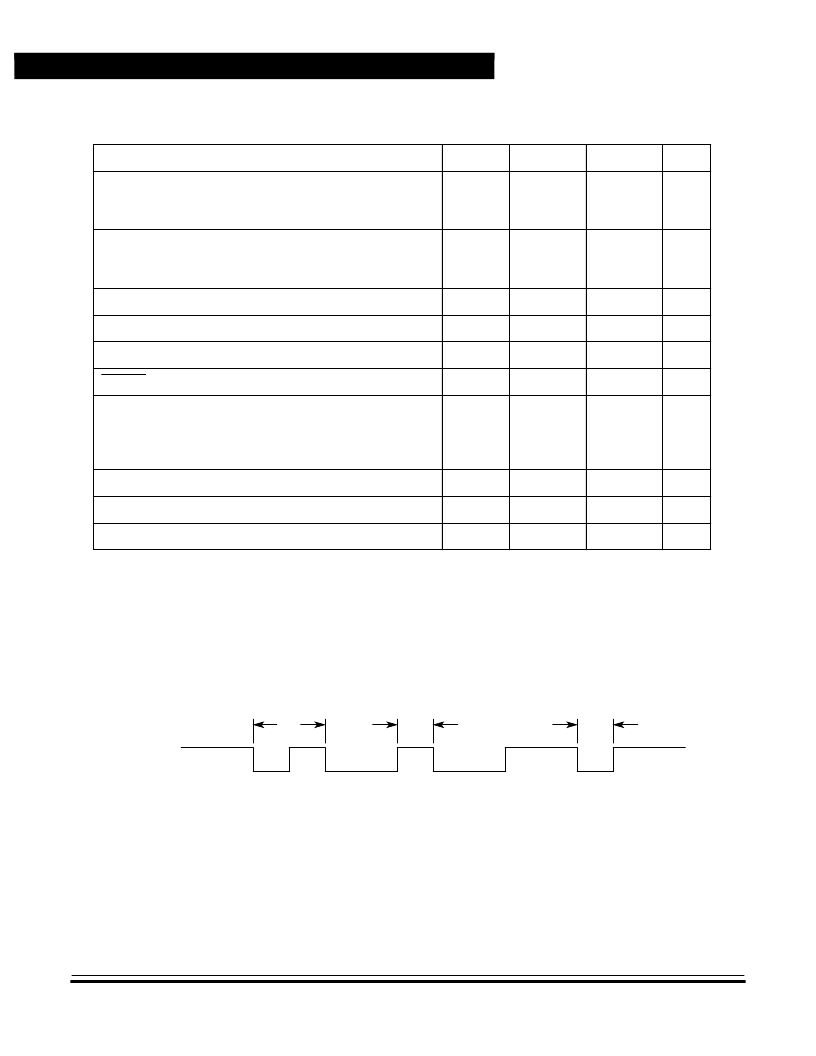

Figure 12-4. TCAP Timing Relationships
Table 12-4. Control Timing (V
DD
= 3.3 V)
(1)
Characteristic
Symbol
Min
Max
Unit
Frequency of Operation
Crystal
External Clock
f
OSC
DC
2.0
2.0
MHz
Internal Operating Frequency (f
OSC
÷
2)
Crystal
External Clock
f
OP
DC
1.0
1.0
MHz
Cycle Time
t
CYC
1000
ns
Crystal Oscillator Start-up Time
t
OXOV
100
ms
Stop Recovery Start-up Time (Crystal Oscillator)
t
ILCH
100
ms
RESET Pulse Width
t
RL
1.5
t
CYC
Timer
Resolution
(2)
Input Capture Pulse Width
Input Capture Pulse Period
t
RESL
t
TH
, t
TL
t
TLTL
4.0
125
(3)
t
CYC
ns
t
CYC
Interrupt Pulse Width Low (Edge-Triggered)
t
ILIH
250
ns
Interrupt Pulse Period
t
ILIL
(4)
t
CYC
OSC1 Pulse Width
t
OH
,t
OL
200
ns
NOTES:
1. V
= 3.3Vdc
±
0.3 Vdc, V
= 0 Vdc, T
= –40 to +85
°
C, unless otherwise noted
2. Because a 2-bit prescaler in the timer must count four internal cycles (t
CYC
), this is the limiting
minimum factor in determining the timer resolution.
3. The minimum period t
should not be less than the number of cycle times it takes to execute
the capture interrupt service routine plus 24 t
.
4. The minimum t
should not be less than the number of cycle times it takes to execute the
interrupt service routine plus 19 t
CYC
.
t
TLTL
*
TCAP PIN
t
TH
*
t
TL
*
* Refer to timer resolution data in Table 12-3 and Table 12-4.
