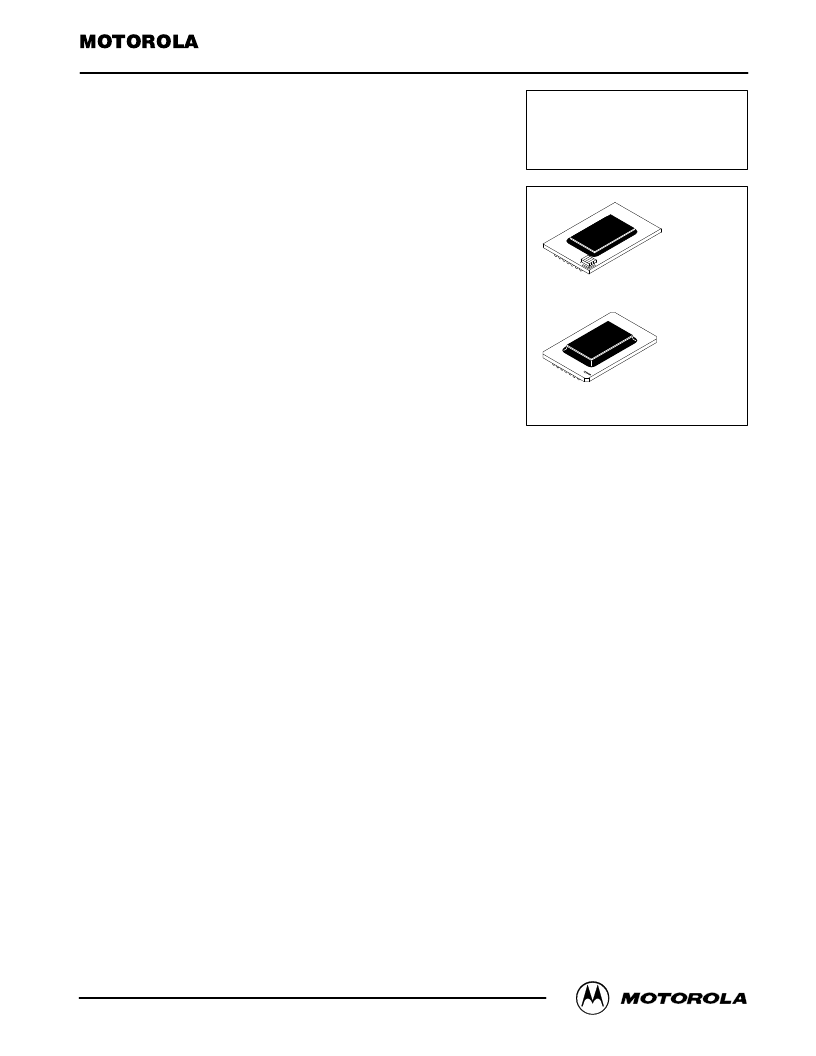

MCM63R836
MCM63R918
1
MOTOROLA FAST SRAM
Motorola, Inc. 1999
8M Late Write HSTL
The MCM63R836/918 is an 8M–bit synchronous late write fast static RAM
designed to provide high performance in secondary cache and ATM switch,
Telecom, and other high speed memory applications. The MCM63R918
(organized as 512K words by 18 bits) and the MCM63R836 (organized as 256K
words by 36 bits) are fabricated in Motorola’s high performance silicon gate
CMOS technology.
The differential clock (CK) inputs control the timing of read/write operations of
the RAM. At the rising edge of CK; all addresses, write enables, and synchronous
selects are registered. An internal buffer and special logic enable the memory to
accept write data on the rising edge of CK, a cycle after address and control
signals. Read data is also driven on the rising edge of CK.
The RAM uses HSTL inputs and outputs. The adjustable input trip–point (Vref)
and output voltage (VDDQ) gives the system designer greater flexibility in
optimizing system performance.
The synchronous write and byte enables allow writing to individual bytes or the
entire word.
The impedance of the output buffers is programmable, allowing the outputs to
match the impedance of the circuit traces which reduces signal reflections.
Byte Write Control
2.5 V – 5% to 3.3 V + 10% Operation
HSTL — I/O (JEDEC Standard JESD8–6 Class I Compatible)
HSTL — User Selectable Input Trip–Point
HSTL — Compatible Programmable Impedance Output Drivers
Register to Register Synchronous Operation
Boundary Scan (JTAG) IEEE 1149.1 Compatible
Differential Clock Inputs
Optional x18 or x36 Organization
MCM63R836/918–3.0 = 3.0 ns
MCM63R836/918–3.3 = 3.3 ns
MCM63R836/918–3.7 = 3.7 ns
MCM63R836/918–4.0 = 4.0 ns
MCM63R836/918–4.4 = 4.4 ns
Sleep Mode Operation (ZZ pin)
119–Bump, 50 mil (1.27 mm) Pitch, 14 mm x 22 mm Flipped Chip Plastic
Ball Grid Array (PBGA) or Flipped Chip Ceramic Ball Grid Array (CBGA)
Packages
Order this document
by MCM63R836/D
SEMICONDUCTOR TECHNICAL DATA
MCM63R836
MCM63R918
FC PACKAGE
PBGA
CASE 999D–01
RS PACKAGE
CBGA
CASE 999B–01
5/3/99
