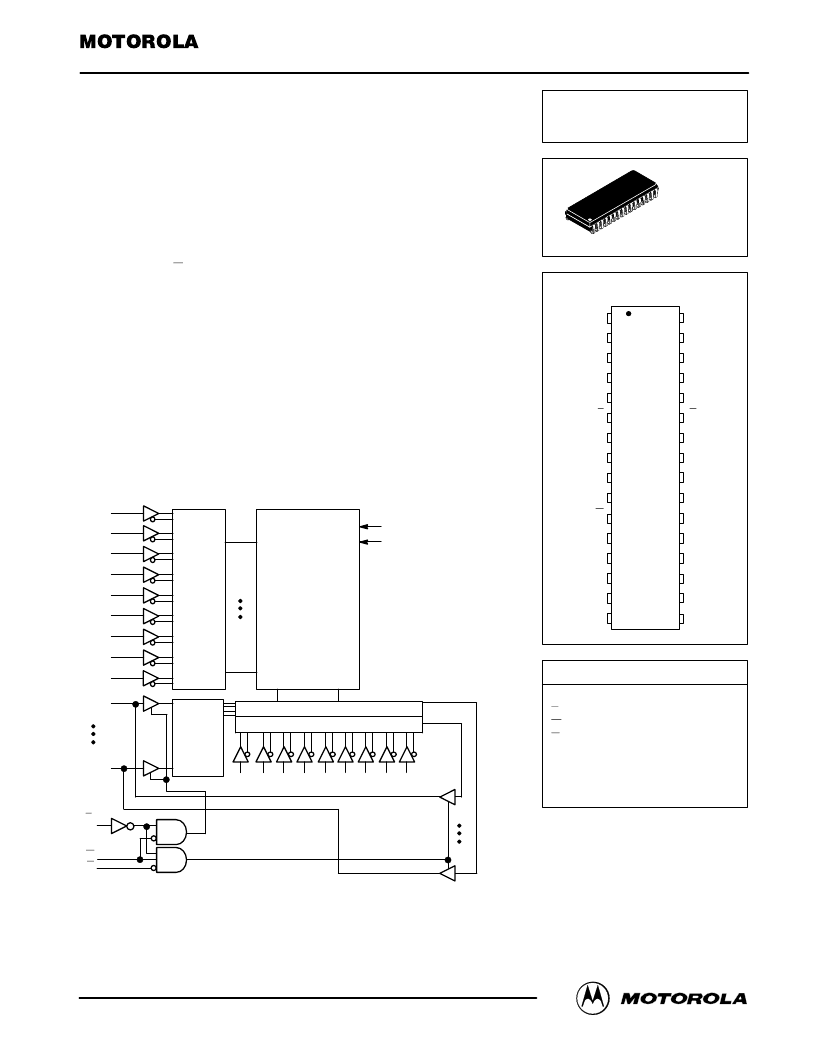

MCM6929A
1
Motorola, Inc. 1997
Advance Information
256K x 4 Bit Fast Static Random
Access Memory
The MCM6929A is a 1,048,576 bit static random access memory organized
as 262,144 words of 4 bits. Static design eliminates the need for external clocks
or timing strobes.
Output enable (G) is a special control feature that provides increased system
flexibility and eliminates bus contention problems.
This device meets JEDEC standards for functionality and revolutionary pinout,
and is available in a 400 mil plastic small–outline J–leaded package.
Single 3.3 V Power Supply
Fully Static — No Clock or Timing Strobes Necessary
All Inputs and Outputs Are TTL Compatible
Three State Outputs
Fast Access Times: 8, 10, 12, 15 ns
Center Power and I/O Pins for Reduced Noise
Fully 3.3 V BiCMOS
BLOCK DIAGRAM
ROW
DECODER
MEMORY
MATRIX
512 ROWS x 512 x 4
COLUMNS
INPUT
DATA
CONTROL
COLUMN I/O
COLUMN DECODER
A
A
A
A
A
A
A
A
DQ
A
A
A
A
A
E
W
G
VDD
VSS
A
A
A
A
A
DQ
This document contains information on a new product. Motorola reserves the right to change or discontinue this product without notice.
Order this document
by MCM6929A/D
SEMICONDUCTOR TECHNICAL DATA
PIN ASSIGNMENT
MCM6929A
WJ PACKAGE
400 MIL SOJ
CASE 857A–02
32
31
30
29
28
27
26
25
24
23
22
21
2
3
1
5
6
4
7
9
10
8
12
13
11
14
20
15
16
19
18
17
A
A
A
A
E
A
W
A
A
A
VDD
VSS
A
A
A
A
DQ
A
G
DQ
A
A
A
A
VDD
VSS
DQ
DQ
NC
A
NC
NC
A
E
W
G
DQ
VDD
VSS
NC
Address Input
Chip Enable
Write Enable
Output Enable
Data Input/Output
+ 3.3 V Power Supply
. . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . .
Ground
No Connection
PIN NAMES
REV1
2/26/97
