MCM69C233
SCM69C233
11
MOTOROLA FAST SRAM

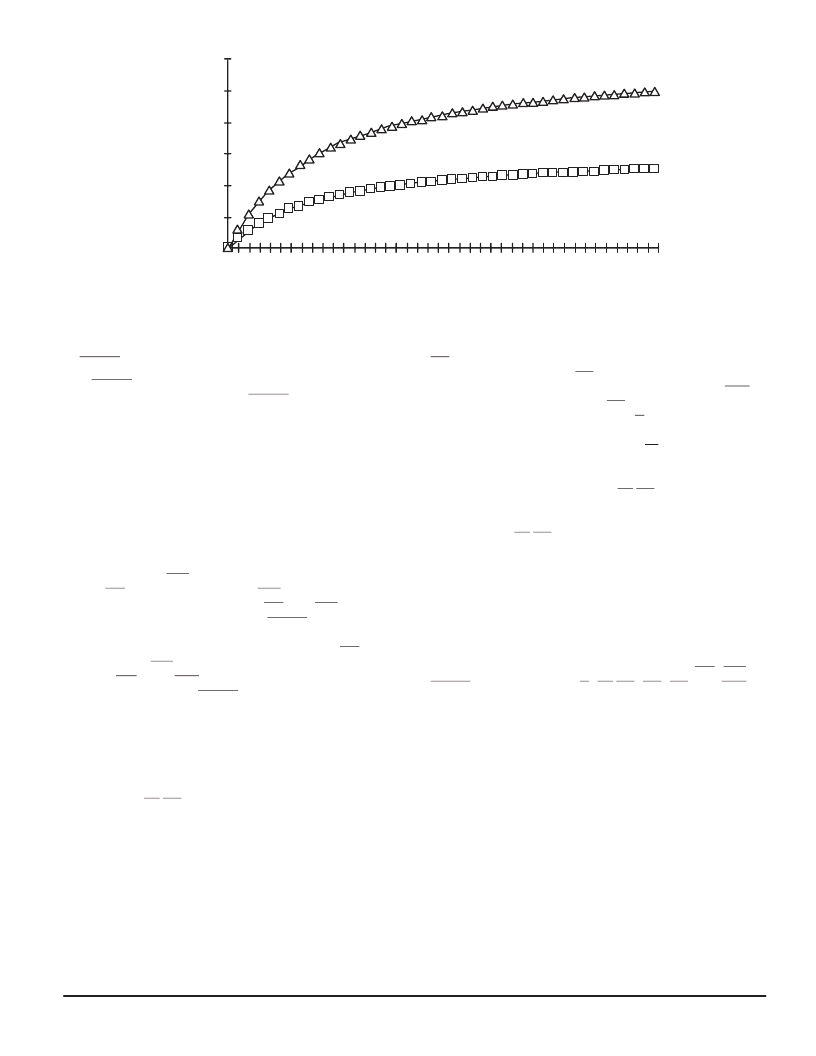

Figure 3. Connections per Second vs Match Cycle Time
MATCH CYCLE TIME IN CLOCK CYCLES
0
2,000
4,000
6,000
8,000
10,000
12,000
I
TYPICAL
WORST CASE
16
26
36
46
56
66
76
86
96
P
RESET
RESET is synchronous to the rising edge of the clock with
0 ns setup and hold. Asserting RESET for two clock cycles
removes all entries from the CAM table and entry queue. The
flag register is set to 1C16 (setting the queue empty,
buffered–entry mode, and table initialized bits). The error
register is set to FFFF16, indicating no errors. The interrupt
mask is cleared, and the almost–full register is set to FFF16.
TIMING OVERVIEW
CONTROL PORT
The control port of the MCM69C233 is asynchronous.
Data transfers, both read and write, are initiated by the
assertion of the SEL signal. Address values should be valid
and WE should be high, when SEL is asserted to begin
a read cycle. All values (address, WE, and SEL) should be
held until the MCM69C233 asserts DTACK to signal the end
of the read cycle.
Address and data values should be valid and WE should
be low, when SEL is asserted to begin a write cycle. Address,
data, WE, and SEL values should be held until the
MCM69C233 asserts DTACK to signal the end of the write
cycle.
MATCH PORT
The MCM69C233 match port is synchronous in operation.
When the match width is
≤
32 bits, a match cycle can be initi-
ated by presenting the match data on MQ31 – MQ0 and as-
serting the LH/SM signal with the appropriate setup time
relative to the rising edge of the clock. The assertion of the
MC output signifies the completion of the match cycle. If a
match has been found, the MS output is also asserted. If the
match is a virtual path circuit match in ATM mode, the VPC
output will be asserted with the MS output. Output data, if
any, is enabled by the assertion of the G input.
If the match width is greater than 32 bits, the lower bits are
first latched into the MCM69C233 by the LL input. The match
cycle is then initiated as specified in the previous paragraph.
Two alternative timing diagrams are presented to describe
the Match Port timing. In the first, LH/SM must meet setup
and hold specs across two consecutive clock cycles, while
the MQ bus need only be valid for a single cycle. In the se-
cond diagram, LH/SM need only be asserted for a single
clock cycle, while the MQ bus must be held valid with
constant data across two clock cycles.
DEPTH EXPANSION
Multiple CAMs can be cascaded to increase the depth of
the match table. The hardware requirements are very
straightforward, as the following pins on each device are sim-
ply wired in parallel: A2 – A0, DQ15 – DQ0, WE, IRQ,
DTACK, MQ31 – MQ0, K, G, LH/SM, MC, MS, and VPC.
Four CAMs can be easily cascaded. Simulations show that
eight devices can be cascaded if care is taken to minimize
the length of the PC board traces connecting the CAMs.
The buffered–entry mode prevents multiple matching en-
tries in a single CAM. The check for value instruction should
be used to verify that multiple matching entries will not result
from a potential new entry. If a match is found in CAM 1, for
example, the new value should be placed in CAM 1, where it
will replace the existing entry.
